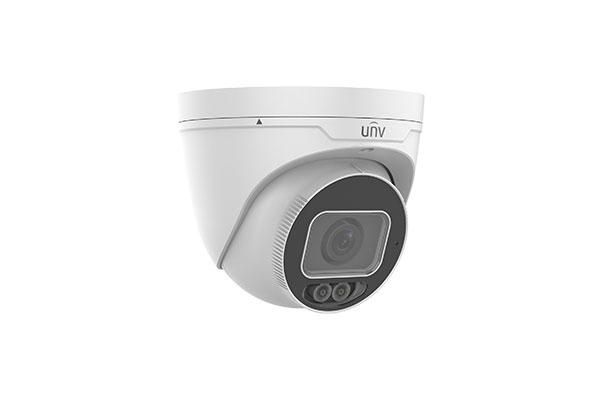

Uniview PRIME COLORHUNTER 8MP TURRET 2.8MM
€233,11
Model: IPC3638SE-ADF28K-WL-I0
- Hoogwaardige afbeelding met 8MP, 1/1.8″CMOS-sensor
- 8MP (3840*2160)@ 30(AI uit)/25fps; 5.3MP (3072*1728)@ 30/25fps; 3.6MP (2560*1440) @30/25fps; 2MP (1920*1080) @30/25fps; 720P (1280*720), Max 30/25fps
- Ultra 265, H.265, H.264, MJPEG
- Slimme inbraakpreventie, inclusief kruislijn, inbraak, enter gebied, verlaten gebied detectie
- Op basis van doelclassificatie vermindert slimme inbraakpreventie aanzienlijk vals alarm veroorzaakt door bladeren, vogels en lichten, enz., en richt zich nauwkeurig op mensen, motorvoertuigen en niet-motorvoertuigen
- Intelligent mensenstroomtelling en crowd densiteit monitoring
- Colorhunter-technologie zorgt voor 24-uurs full-color beelden
- F1.0 Super diafragma
- 120dB echte WDR-technologie zorgt voor een helder beeld in sterke lichtomstandigheden
- Ondersteunt 9:16 corridor modus
- Alarm: 1 in/1 uit, Audio: 1 in/1 uit
- Ondersteunt 256 G micro SD-kaart
- IK10 vandalismebestendig en IP67 bescherming
De Uniview PRIME COLORHUNTER 8MP TURRET 2.8MM biedt superieure videobewaking met ongelooflijke kleurenhelderheid, zelfs bij weinig licht. Deze geavanceerde beveiligingscamera legt elke scène vast in haarscherpe 8MP resolutie en maakt gebruik van geavanceerde ColorHunter-technologie om levendige en gedetailleerde beelden te garanderen, dag en nacht. Ideaal voor zowel residentiële als commerciële toepassingen, de 2.8MM lens biedt een brede kijkhoek voor maximale dekking. Verbeter de veiligheid met deze betrouwbare en efficiënte Uniview beveiligingsoplossing. Perfect voor wie op zoek is naar innovatie en betrouwbaarheid in videobewaking.
Audio |
|
| Audio formats supported | G.711 |
| Audio system | 2-weg |
| Bit rate range | 0 - 64Kbit/s |
| Sample rate | 8kHz |
| Sample rates | 0 - 8kHz |
| Signal-to-Noise Ratio (SNR) | 56dB |
Camera |
|
| Adjustment shutter speed | Auto/Handmatig |
| Angle of rotation | 360° |
| Camera pan control | Ja |
| Camera shutter speed | 1 ~ 1/100000Seconde |
| Camera tilt control | Ja |
| Lens viewing angle, diagonal | 143.19° |
| Lens viewing angle, horizontal | 110.15° |
| Lens viewing angle, vertical | 59.06° |
| Minimum illumination | 0,05Lux |
| Number of Privacy masking areas | 4 |
| Pan range | 0 - 360° |
| Tilt angle range | 0 - 72° |
Design |
|
| Form factor | Dome |
| IK code | IK10 |
| International Protection (IP) code | IP67 |
| Mounting type | Plafond/muur |
| Product colour | Wit |
Image sensor |
|
| Optical sensor size | 1/1.8" |
| Progressive scan | Ja |
| Sensor type | CMOS |
Lens system |
|
| Detect distance (2.8mm lens) | 63m |
| Detect distance (tele) | 90m |
| Detect distance (wide) | 63m |
| Focal length range | 2.8 - 1mm |
| Identify distance (2.8mm lens) | 6,3m |
| Identify distance (tele) | 9m |
| Identify distance (wide) | 6,3m |
| Number of lenses | 1 |
| Observe distance (2.8mm lens) | 25,2m |
| Observe distance (tele) | 36m |
| Observe distance (wide) | 25,2m |
| Recognize distance (2.8mm lens) | 12,6m |
| Recognize distance (tele) | 18m |
| Recognize distance (wide) | 12,6m |
Management features |
|
| Management software | EZStation, EZView, EZLive |
| Web browser | Ja |
Network |
|
| Bluetooth | Nee |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN | Ja |
| Networking standards | IEEE 802.3af |
| Number of users | 32gebruiker(s) |
| Quality of Service (QoS) support | Ja |
| Supported network protocols | IPv4, IPv6,IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL/TLS, SSH |
| Wi-Fi | Nee |
Night vision |
|
| LED type | IR |
Operational conditions |
|
| Operating relative humidity (H-H) | 0 - 95procent |
| Operating temperature (T-T) | -30 - 60°C |
| Storage relative humidity (H-H) | 0 - 95procent |
| Storage temperature (T-T) | -30 - 60°C |
Package dimensions |
|
| Gross Weight (Package, kg) | 0,75kg |
Packaging content |
|
| Number of cameras | 1 |
Panoramic camera |
|
| Fixed focal length (panoramic camera) | 2,8cm |
Performance |
|
| Connectivity technology | Bedraad |
| Dynamic range | 120dB |
| Placement supported | Buiten |
| Type | IP beveiligingscamera |
| Wide Dynamic Range (WDR) | Ja |
Ports & interfaces |
|
| Ethernet LAN (RJ-45) ports | 1 |
Power |
|
| DC output voltage | 12 |
| Power consumption (max) | 11Watt |
| Power source type | DC/PoE |
Product dimensions |
|
| Net Weight (Product, kg) | 0,64kg |
| Product Height | 11cm |
Security |
|
| Active tampering alarm | Ja |
| Digest authentication | Ja |
| Digital watermark | Ja |
| HTTPS encryption | Ja |
| Intelligent Video Surveillance (IVS) system features | Gezichtsdetectie/Mensen telling |
| Password protection | Ja |
Storage |
|
| Built-in HDD | Ja |
| Card reader integrated | Ja |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 256GB |
Sustainability |
|
| Compliance certificates | CE/RoHS/WEEE |
Technical details |
|
| Sustainability certificates | CE/RoHS/WEEE |
Vendor information |
|
| Brand Name | Uniview |
| Warranty | 5#ProductAttributes.Unit.Year# |
Video |
|
| Back Light Compensation (BLC) | Ja |
| Bit rate | 128 Kbps ~ 16 Mbps |
| Frame rate | 30fps |
| Highlight Compensation (HLC) | Ja |
| Maximum resolution | 3840 x 2160Pixels |
| Noise reduction | Ja |
| Noise reduction technology | 2D ruisonderdrukking/3D ruisonderdrukking |
| Region of Interest (ROI) encoding | Ja |
| Supported graphics resolutions | 1920 x 1080 (HD 1080)/2592 x 1944/2944 x 1656/3840 x 2160/720 x 576 |
| Total megapixels | 4MP |
| Video compression formats | H.264/H.265/M-JPEG |
| Video intelligence analytic | Ja |
Weight & dimensions |
|
| Diameter | 12,9cm |
Design
| Product colour |
White |
|---|---|
| Form factor |
Dome |
| IK code |
IK10 |
| Mounting type |
Ceiling/wall |
Lens system
| Focal length range |
2.8 – 1mm |
|---|---|
| Detect distance (2.8mm lens) |
63m |
| Detect distance (tele) |
90m |
| Detect distance (wide) |
63m |
| Identify distance (2.8mm lens) |
6,3m |
| Identify distance (tele) |
9m |
| Identify distance (wide) |
6,3m |
| Number of lenses |
1 |
| Observe distance (2.8mm lens) |
25,2m |
| Observe distance (tele) |
36m |
| Observe distance (wide) |
25,2m |
| Recognize distance (2.8mm lens) |
12,6m |
| Recognize distance (tele) |
18m |
| Recognize distance (wide) |
12,6m |
Logistics data
| Placement supported |
Outdoor |
|---|
Vendor information
| Brand Name |
Uniview |
|---|---|
| Warranty |
5#ProductAttributes.Unit.Year# |
Video
| Total megapixels |
4MP |
|---|---|
| Back Light Compensation (BLC) |
Yes |
| Bit rate |
128 Kbps ~ 16 Mbps |
| Frame rate |
30fps |
| Highlight Compensation (HLC) |
Yes |
| Maximum resolution |
3840 x 2160Pixels |
| Noise reduction |
Yes |
| Noise reduction technology |
2D noise reduction/3D noise reduction |
| Video compression formats |
H.264/H.265/M-JPEG |
| Video intelligence analytic |
Yes |
Audio
| Audio formats supported |
G.711 |
|---|---|
| Audio system |
2-way |
| Bit rate range |
0 – 64Kbit/s |
| Sample rate |
8kHz |
| Sample rates |
0 – 8kHz |
| Signal-to-Noise Ratio (SNR) |
56dB |
Camera
| Adjustment shutter speed |
Auto/Manual |
|---|---|
| Angle of rotation |
360° |
| Camera pan control |
Yes |
| Camera shutter speed |
1 ~ 1/100000Second |
| Camera tilt control |
Yes |
| Lens viewing angle, diagonal |
143.19° |
| Lens viewing angle, vertical |
59.06° |
| Minimum illumination |
0,05Lux |
| Pan range |
0 – 360° |
| Tilt angle range |
0 – 72° |
Image sensor
| Optical sensor size |
1/1.8" |
|---|---|
| Progressive scan |
Yes |
| Sensor type |
CMOS |
Management features
| Management software |
EZStation, EZView, EZLive |
|---|---|
| Web browser |
Yes |
Network
| Bluetooth |
No |
|---|---|
| Ethernet interface type |
Fast Ethernet |
| Ethernet LAN |
Yes |
| Networking standards |
IEEE 802.3af |
| Number of users |
32gebruiker(s) |
| Supported network protocols |
IPv4, IPv6,IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL/TLS, SSH |
| Wi-Fi |
No |
Night vision
| LED type |
IR |
|---|
Operational conditions
| Operating temperature (T-T) |
-30 – 60°C |
|---|---|
| Storage temperature (T-T) |
-30 – 60°C |
Package dimensions
| Gross Weight (Package, kg) |
0,75kg |
|---|
Packaging content
| Number of cameras |
1 |
|---|
Performance
| Connectivity technology |
Wired |
|---|---|
| Dynamic range |
120dB |
| Wide Dynamic Range (WDR) |
Yes |
Ports & interfaces
| Ethernet LAN (RJ-45) ports |
1 |
|---|
Power
| DC output voltage |
12 |
|---|---|
| Power consumption (max) |
11Watt |
| Power source type |
DC/PoE |
Product dimensions
| Net Weight (Product, kg) |
0,64kg |
|---|---|
| Product Height |
11cm |
Security
| Active tampering alarm |
Yes |
|---|---|
| Digest authentication |
Yes |
| Digital watermark |
Yes |
| HTTPS encryption |
Yes |
| Password protection |
Yes |
Storage
| Built-in HDD |
Yes |
|---|---|
| Card reader integrated |
Yes |
| Compatible memory cards |
MicroSD (TransFlash) |
| Maximum memory card size |
256GB |
Certificates
| Compliance certificates |
CE/RoHS/WEEE |
|---|
Sustainability
| Sustainability certificates |
CE/RoHS/WEEE |
|---|
Weight & dimensions
| Diameter |
12,9cm |
|---|
