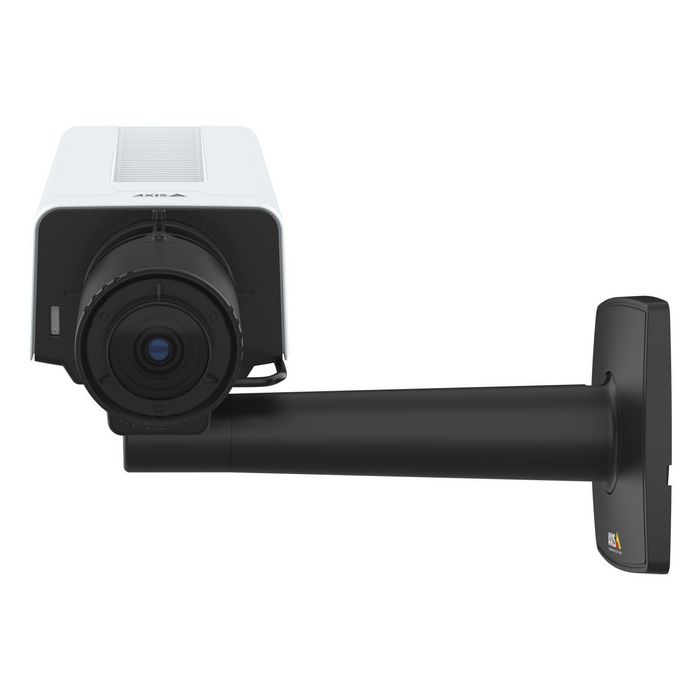

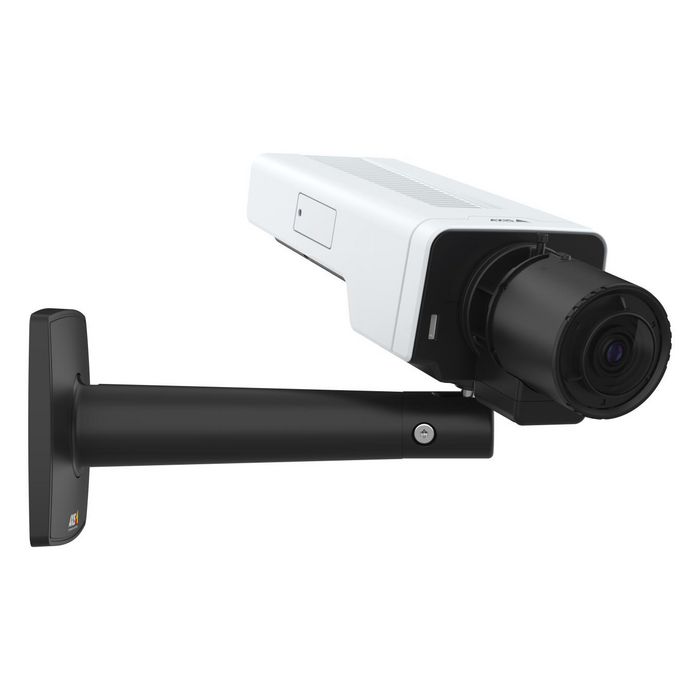

Axis 2 MP/1080p resolution, day/night, fixed box camera with Deep Learning Processing Unit
€1.265,00
Model: 02733-001
- Uitstekende beeldkwaliteit in HDTV 1080p
- Lightfinder 2.0 en Forensic WDR
- Vervangbare lens
- Analytics met diep leren
- Ingebouwde cybersecurity met Axis Edge Vault
Ervaar ongeëvenaarde videobewaking met de Axis 2 MP/1080p resolutie dag/nacht vaste boxcamera. Uitgerust met een geavanceerde Deep Learning Processing Unit, biedt deze camera haarscherpe beelden en uitstekende prestaties onder alle lichtomstandigheden. Perfect voor zowel binnen- als buitentoepassingen, ondersteunt deze camera uw beveiligingsoplossingen met intelligente analyses en betrouwbare detectie. Verhef uw veiligheidsniveau met de innovatieve technologie van Axis, speciaal ontworpen om uw eigendommen te beschermen met maximale efficiëntie en precisie.
Audio |
|
| Audioformaten ondersteund | AAC-LC/ADPCM/G.711/G.726/LPCM/OPUS/PCM |
| Signaal-ruisverhouding (SNR) | 55dB |
Batterij |
|
| Batterijtype | UN3091 - Lithium METAAL binnen apparatuur |
| Lithium gewicht (g) | 0,064g |
Camera |
|
| Camera pixelgrootte | 2,9µm |
| Camera sluitertijd | 1/37000 - 2Seconde |
| Lens zichthoek, horizontaal | 121 - 26° |
| Lens zichthoek, verticaal | 64 - 15° |
| Minimale verlichting | 0,005Lux |
Ontwerp |
|
| Fog proof | Ja |
| Vormfactor | Doos |
| Behuizing materiaal | Aluminium |
| Montagetype | Plafond/wand |
| Productkleur | Zwart/Wit |
Beeldsensor |
|
| Optische sensor grootte | 1/2.8" |
| Progressieve scan | Ja |
| Sensortype | CMOS |
Lenzen systeem |
|
| Auto focus | Ja |
| Brandpuntsafstand bereik | 2.8 - 13mm |
Netwerk |
|
| Ethernet interface type | Fast Ethernet/Gigabit Ethernet |
| Ethernet LAN | Ja |
Nachtzicht |
|
| LED type | IR |
| Nachtzicht | Ja |
Operationele voorwaarden |
|
| Werktemperatuur (T-T) | -10 - 55°C |
| Opslagtemperatuur (T-T) | -40 - 65°C |
Verpakkingsafmetingen |
|
| Diepte (pakket, cm) | 26,5cm |
| Bruto Gewicht (Pakket, kg) | 1,08kg |
| Hoogte (pakket, cm) | 10,5cm |
| Breedte (pakket, cm) | 22cm |
Verpakkingsinhoud |
|
| Aantal camera's | 1 |
Prestaties |
|
| Certificering | CAN/CSA C22.2 No. 62368-1 ed. 3, IEC/EN/UL 62368-1 ed. 3,/ETSI EN 303 645, FIPS 140/IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14,/IEC 60068-2-27, IEC 60068-2-78/IS 13252/NIST SP500-267, IPv6 USGv6/UL/cUL, UKCA, CE, KC, EAC, VCCI, RCM |
| Connectiviteit technologie | Bedraad |
| Dag/nacht modus | Ja |
| Plaatsing ondersteund | Binnen |
| PTZ bediening | Ja |
| PTZ modi | Digitale PTZ/Vooraf ingestelde punt |
| Type | IP beveiligingscamera |
| Wide Dynamic Range (WDR) | Ja |
Poorten & interfaces |
|
| Ethernet LAN (RJ-45) poorten | 1 |
| RS-485 poorten | 2 |
Stroomvoorziening |
|
| DC uitgangsspanning | 10/28 |
| Energieverbruik (max) | 7,76Watt |
| Energieverbruik (Power over Ethernet (PoE)) | 2,97Watt |
| Energieverbruik (typisch) | 3,15Watt |
| Stroombron type | DC/PoE |
Productafmetingen |
|
| Nettogewicht (Product, kg) | 1kg |
| Product diepte | 22,5cm |
| Product hoogte | 23,5cm |
| Product breedte | 8,7cm |
Beveiliging |
|
| Beveiligingsalgoritmen | 802.1x RADIUS/EAP-TLS/HTTPS/PEAP/TLS |
Opslag |
|
| Kaartlezer geïntegreerd | Ja |
| Compatibele geheugenkaarten | MicroSD (TransFlash)/MicroSDHC/MicroSDXC |
| Flashgeheugen | 8192MB |
| Intern geheugen | 1024MB |
Leveranciersinformatie |
|
| Merknaam | Axis |
| Garantie | 5#ProductAttributes.Unit.Year# |
Video |
|
| Framesnelheid | 60fps |
| Versterking regeling type | Auto |
| Afbeelding stabilisator | Ja |
| Maximale resolutie | 1920 x 1080Pixels |
| Ruisonderdrukking | Ja |
| Ruisonderdrukking technologie | 2D ruisonderdrukking/3D ruisonderdrukking |
| Privacy masking | Ja |
| Totaal aantal megapixels | 2MP |
| Videocompressieformaten | H.264/H.265/M-JPEG/MPEG4 |
| Video streaming | Ja |
Design
| Product colour |
Black/White |
|---|---|
| Fog proof |
Yes |
| Form factor |
Box |
| Housing material |
Aluminium |
| Mounting type |
Ceiling/wall |
Lens system
| Focal length range |
2.8 – 13mm |
|---|---|
| Auto focus |
Yes |
Logistics data
| Placement supported |
Indoor |
|---|
Vendor information
| Brand Name |
Axis |
|---|---|
| Warranty |
5#ProductAttributes.Unit.Year# |
Video
| Total megapixels |
2MP |
|---|---|
| Frame rate |
60fps |
| Gain control type |
Auto |
| Image stabilizer |
Yes |
| Maximum resolution |
1920 x 1080Pixels |
| Noise reduction |
Yes |
| Noise reduction technology |
2D noise reduction/3D noise reduction |
| Privacy masking |
Yes |
| Video compression formats |
H.264/H.265/M-JPEG/MPEG4 |
| Video streaming |
Yes |
Audio
| Audio formats supported |
AAC-LC/ADPCM/G.711/G.726/LPCM/OPUS/PCM |
|---|---|
| Signal-to-Noise Ratio (SNR) |
55dB |
Battery
| Battery Type |
UN3091 – Lithium METAL inside equiment |
|---|---|
| Lithium Weight (g) |
0,064g |
Camera
| Camera pixel size |
2,9µm |
|---|---|
| Camera shutter speed |
1/37000 – 2Second |
| Lens viewing angle, vertical |
64 – 15° |
| Minimum illumination |
0,005Lux |
Image sensor
| Optical sensor size |
1/2.8" |
|---|---|
| Progressive scan |
Yes |
| Sensor type |
CMOS |
Network
| Ethernet interface type |
Fast Ethernet/Gigabit Ethernet |
|---|---|
| Ethernet LAN |
Yes |
Night vision
| LED type |
IR |
|---|---|
| Night vision |
Yes |
Operational conditions
| Operating temperature (T-T) |
-10 – 55°C |
|---|---|
| Storage temperature (T-T) |
-40 – 65°C |
Package dimensions
| Depth (package,cm) |
26,5cm |
|---|---|
| Gross Weight (Package, kg) |
1,08kg |
| Height (package,cm) |
10,5cm |
| Width (package,cm) |
22cm |
Packaging content
| Number of cameras |
1 |
|---|
Performance
| Connectivity technology |
Wired |
|---|---|
| Day/night mode |
Yes |
| PTZ control |
Yes |
| PTZ modes |
Digital PTZ/Preset point |
| Wide Dynamic Range (WDR) |
Yes |
Ports & interfaces
| Ethernet LAN (RJ-45) ports |
1 |
|---|---|
| RS-485 ports |
2 |
Power
| DC output voltage |
10/28 |
|---|---|
| Power consumption (max) |
7,76Watt |
| Power consumption (typical) |
3,15Watt |
| Power source type |
DC/PoE |
Product dimensions
| Net Weight (Product, kg) |
1kg |
|---|---|
| Product Depth |
22,5cm |
| Product Height |
23,5cm |
| Product Width |
8,7cm |
Security
| Security algorithms |
802.1x RADIUS/EAP-TLS/HTTPS/PEAP/TLS |
|---|
Storage
| Card reader integrated |
Yes |
|---|---|
| Compatible memory cards |
MicroSD (TransFlash)/MicroSDHC/MicroSDXC |
| Flash memory |
8192MB |
| Internal memory |
1024MB |
