Pelco 1/2.8" CMOS, 2048x1536px, 3MP, 60m IR, 30 fps, 12V PoE
€66,37
Model: SRXP4-3V29-EBT-IR
- Objecten detecteren met Smart Analytics
- Flexibele lensopties
- Zien in helder en laag licht
- Eenvoudig te implementeren
- Bescherming tegen cyberaanvallen
- Integreert met uw ONVIF-conforme VMS

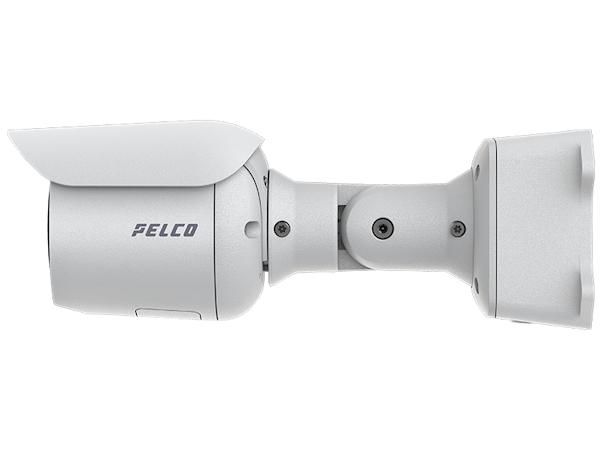

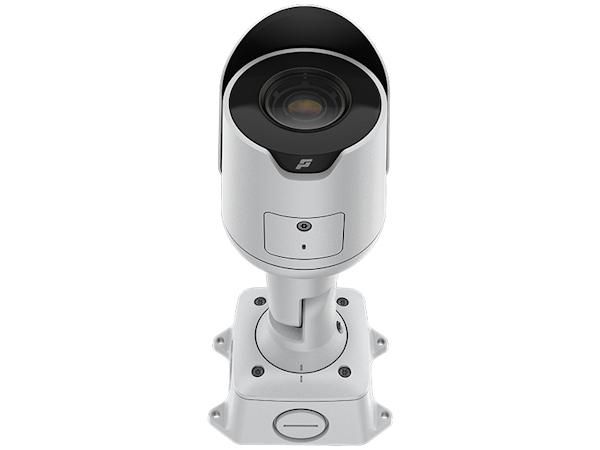

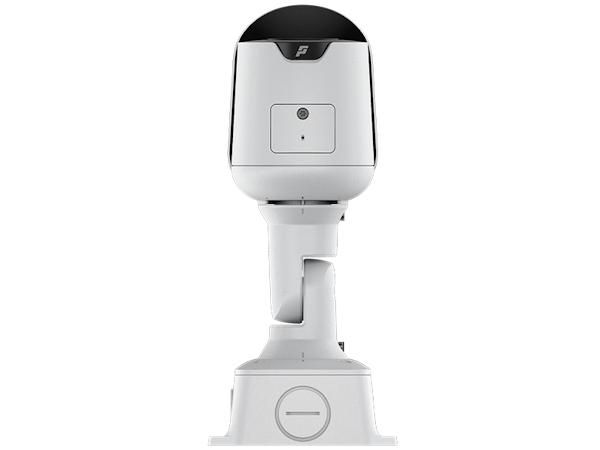

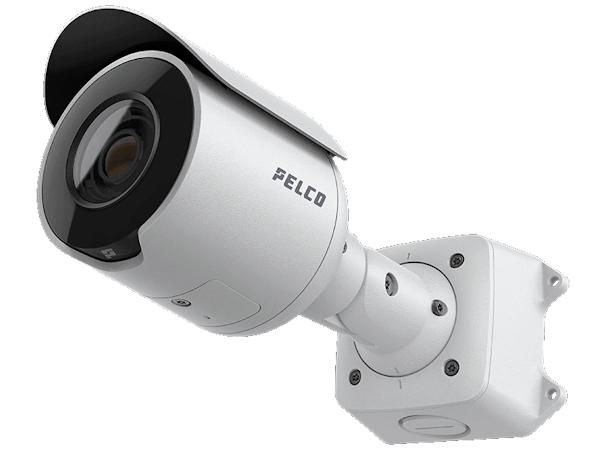

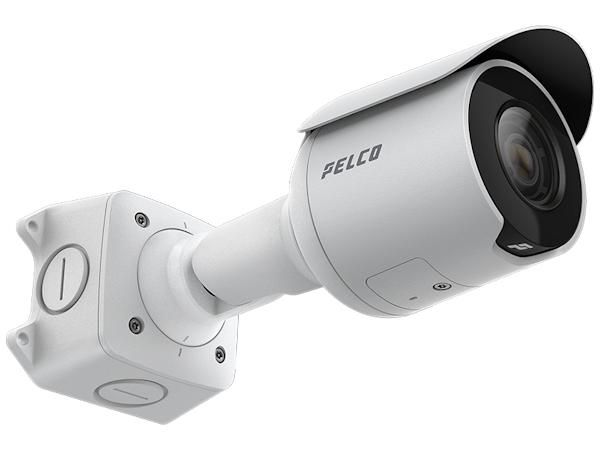

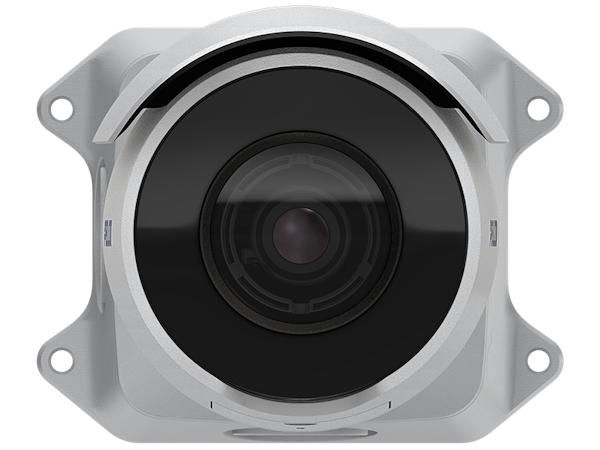

Ontdek de Pelco 1/2.8" CMOS beveiligingscamera, met een indrukwekkende resolutie van 2048x1536 pixels voor scherpe 3MP beelden. Deze geavanceerde camera biedt 60 meter infrarood nachtzicht, zodat u dag en nacht een helder zicht hebt. Met een snelle framerate van 30 fps mist u geen enkel detail. Gemakkelijk te installeren met 12V PoE, waardoor u efficiënt stroom en data via één kabel verstuurt. Ideaal voor zowel zakelijke als particuliere beveiligingsoplossingen. Verbeter uw beveiligingssysteem met de betrouwbaarheid en prestaties van Pelco.
Audio |
|
| Audioformaten ondersteund | G.711/PCM |
| Samplefrequentie | 8kHz |
| Signaal-ruisverhouding (SNR) | 50dB |
Camera |
|
| Draaihoek | 350° |
| Sluitertijd camera | 1/7.5 - 1/30000Seconde |
| Sluitertype camera | Electronisch |
| Lens kijkhoek, horizontaal | 28° |
| Lens kijkhoek, verticaal | 21° |
| Minimale verlichting | 0,005Lux |
| Aantal privacy maskeringsgebieden | 64 |
| Panbereik | -175 - 175° |
| Kantelhoekbereik | -90 - 90° |
| Witbalans | Auto/Handmatig |
Ontwerp |
|
| Vormfactor | Bullet |
| Behuizingsmateriaal | Aluminium |
| IK-code | IK10 |
| Internationale beveiliging (IP) code | IP66, IP67 |
| Montagetype | Muur |
| Kleur product | Zwart/Wit |
| Beveiligingskenmerken | Weerbestendig |
| Weerbestendig | Ja |
Kenmerken |
|
| NDAA-naleving | Ja |
Beeldsensor |
|
| Aantal sensoren | 1 |
| Optische sensor grootte | 1/2.8" |
| Sensortype | CMOS |
Lenssysteem |
|
| Automatische focus | Ja |
| Brandpuntsafstand bereik | 10.9 - 29mm |
| Focus | Gemotoriseerd |
| Maximale apertuurnummer | 1,7 |
| Aantal lenzen | 1 |
| Zoomcapaciteit | Ja |
Netwerk |
|
| Type Ethernet-interface | Fast Ethernet |
| Ethernet LAN | Ja |
| Netwerkstandaarden | IEEE 802.3af |
| Streaming methode | Multicast |
| Ondersteunde netwerkprotocollen | IPv6, IPv4, HTTP, HTTPS, SOAP, DNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMPv3, ICMP, DHCP, Zeroconf, HSTS, RTP/UDP, RTP/UDP multicast, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/RTSP/HTTPS/TCP, HTTP, SRTP, SNMP v2c, SNMP v3 |
Nachtzicht |
|
| Infrarood golflengte | 850nm |
| LED-type | IR |
| Nachtzicht | Ja |
| Nachtzicht afstand | 60m |
Operationele voorwaarden |
|
| Operationele relatieve luchtvochtigheid (H-H) | 0 - 95procent |
| Operationele temperatuur (T-T) | -40 - 60°C |
| Opslag relatieve luchtvochtigheid (H-H) | 0 - 95procent |
| Opslag temperatuur (T-T) | -10 - 70°C |
Pakketspecificaties |
|
| Diepte (pakket, cm) | 5,15cm |
| Brutogewicht (pakket, kg) | 6,95kg |
| Hoogte (pakket, cm) | 22,055cm |
| Breedte (pakket, cm) | 26,82cm |
Verpakkingsinhoud |
|
| Aantal camera's | 1 |
Prestaties |
|
| Alarminvoer/-uitvoer | Ja |
| Certificering | UL/CSA/EN/IEC 62368-1, IEC 62471, FCC Deel 15 Subsectie B (Class B), IC ICES-003 (Class B), EN 55032 (Class B), EN 61000-6-3, EN 61000-3-2, EN 61000-3-3, EN 55035, EN 61000-6-1, EN 50130-4, EN 50121-4 |
| Connectiviteitstechnologie | Bedraad |
| Dag/nachtmode | Ja |
| Dynamisch bereik | 130dB |
| Infrarood (IR) filter | Ja |
| Plaatsing ondersteund | Buiten |
| Type | IP-beveiligingscamera |
| Uitgebreid Dynamisch Bereik (WDR) | Ja |
Poorten & interfaces |
|
| Ethernet LAN (RJ-45) poorten | 1 |
| USB-poort | Ja |
Voeding |
|
| Batterijtechnologie | Lithium |
| Energieverbruik (Power over Ethernet (PoE)) | 13Watt |
| Type stroombron | Batterij/PoE |
Productafmetingen |
|
| Netto Gewicht (Product, kg) | 6,95kg |
| Diepte product | 5,15cm |
| Hoogte product | 22,055cm |
| Breedte product | 26,82cm |
Beveiliging |
|
| Digest-authenticatie | Ja |
| HTTPS-encryptie | Ja |
| Intelligent Video Surveillance (IVS) systeem kenmerken | Detectie van lijnoverschrijding/Gemist object/Bewegend object/Regionale toegangdetectie/Regionale uitgangdetectie |
| Wachtwoordbeveiliging | Ja |
| Privacybescherming | Ja |
| Videobewegingsdetectie | Ja |
Opslag |
|
| Geharmoniseerde kaartlezer | Ja |
| Compatibele geheugenkaarten | MicroSD (TransFlash)/MicroSDHC/MicroSDXC |
| Flash-geheugen | 512MB |
| Maximale geheugenkaartgrootte | 1,5#ProductAttributes.Unit.Terabyte# |
| RAM-capaciteit | 1000MB |
Duurzaamheid |
|
| Nalevingscertificaten | BIS/CE/cUL/KC/Norma Oficial Mexicana (NOM)/RCM/RoHS/UKCA/UL |
Leverancierinformatie |
|
| Merknaam | Pelco |
| Homepage | https://www.pelco.com/products/cameras/fixed-ip-cameras/sarix-professional-series-4 |
| Garantie | 5#ProductAttributes.Unit.Year# |
Video |
|
| Teruglichtcompensatie (BLC) | Ja |
| Frame rate | 30fps |
| Maximale resolutie | 2048 x 1536Pixels |
| Ruisonderdrukking | Ja |
| Ruisonderdrukkingstechnologie | 3D-ruisonderdrukking |
| Ondersteunde grafische resoluties | 1280 x 720 (HD 720)/1280 x 960/1600 x 1200 (UXGA)/1920 x 1080 (HD 1080)/2048 x 1152/2048 x 1536 (QXGA)/384 x 288/512 x 288/512 x 384/640 x 360/640 x 480 (VGA)/768 x 432/960 x 720 |
| Totaal aantal megapixels | 3MP |
| Ondersteunde videoformaten | H.264/H.265/M-JPEG |
| Videointelligentie-analyse | Ja |
| Videostreaming | Ja |
Design
| Product colour |
Black/White |
|---|---|
| Protection features |
Weatherproof |
| Form factor |
Bullet |
| Housing material |
Aluminium |
| IK code |
IK10 |
| Mounting type |
Wall |
| Weatherproof |
Yes |
Features
| NDAA Compliance |
Yes |
|---|
Lens system
| Focal length range |
10.9 – 29mm |
|---|---|
| Auto focus |
Yes |
| Focus |
Motorized |
| Maximum aperture number |
1,7 |
| Number of lenses |
1 |
| Zoom capability |
Yes |
Night vision
| Night vision distance |
60m |
|---|---|
| Infra-red wavelength |
850nm |
| LED type |
IR |
| Night vision |
Yes |
Logistics data
| Placement supported |
Outdoor |
|---|
Vendor information
| Brand Name |
Pelco |
|---|---|
| Homepage |
https://www.pelco.com/products/cameras/fixed-ip-cameras/sarix-professional-series-4 |
| Warranty |
5#ProductAttributes.Unit.Year# |
Video
| Total megapixels |
3MP |
|---|---|
| Back Light Compensation (BLC) |
Yes |
| Frame rate |
30fps |
| Maximum resolution |
2048 x 1536Pixels |
| Noise reduction |
Yes |
| Noise reduction technology |
3D noise reduction |
| Video formats supported |
H.264/H.265/M-JPEG |
| Video streaming |
Yes |
Audio
| Audio formats supported |
G.711/PCM |
|---|---|
| Sample rate |
8kHz |
| Signal-to-Noise Ratio (SNR) |
50dB |
Camera
| Angle of rotation |
350° |
|---|---|
| Camera shutter speed |
1/7.5 – 1/30000Second |
| Camera shutter type |
Electronic |
| Lens viewing angle, vertical |
21° |
| Minimum illumination |
0,005Lux |
| Pan range |
-175 – 175° |
| Tilt angle range |
-90 – 90° |
| White balance |
Auto/Manual |
Image sensor
| Number of sensors |
1 |
|---|---|
| Optical sensor size |
1/2.8" |
| Sensor type |
CMOS |
Network
| Ethernet interface type |
Fast Ethernet |
|---|---|
| Ethernet LAN |
Yes |
| Networking standards |
IEEE 802.3af |
| Streaming method |
Multicast |
Operational conditions
| Operating temperature (T-T) |
-40 – 60°C |
|---|---|
| Storage temperature (T-T) |
-10 – 70°C |
Package dimensions
| Depth (package,cm) |
5,15cm |
|---|---|
| Gross Weight (Package, kg) |
6,95kg |
| Height (package,cm) |
22,055cm |
| Width (package,cm) |
26,82cm |
Packaging content
| Number of cameras |
1 |
|---|
Performance
| Alarm input/output |
Yes |
|---|---|
| Certification |
UL/CSA/EN/IEC 62368-1, IEC 62471, FCC Part 15 Subpart B (Class B), IC ICES-003 (Class B), EN 55032 (Class B), EN 61000-6-3, EN 61000-3-2, EN 61000-3-3, EN 55035, EN 61000-6-1, EN 50130-4, EN 50121-4 |
| Connectivity technology |
Wired |
| Day/night mode |
Yes |
| Dynamic range |
130dB |
| Infrared (IR) cut-off filter |
Yes |
| Wide Dynamic Range (WDR) |
Yes |
Ports & interfaces
| USB port |
Yes |
|---|
Power
| Battery technology |
Lithium |
|---|---|
| Power source type |
Battery/PoE |
Product dimensions
| Net Weight (Product, kg) |
6,95kg |
|---|---|
| Product Depth |
5,15cm |
| Product Height |
22,055cm |
| Product Width |
26,82cm |
Security
| Digest authentication |
Yes |
|---|---|
| HTTPS encryption |
Yes |
| Password protection |
Yes |
| Privacy protection |
Yes |
| Video motion detection |
Yes |
Storage
| Card reader integrated |
Yes |
|---|---|
| Compatible memory cards |
MicroSD (TransFlash)/MicroSDHC/MicroSDXC |
| Maximum memory card size |
1,5#ProductAttributes.Unit.Terabyte# |
| RAM capacity |
1000MB |
Indoor unit
| Flash memory |
512MB |
|---|
Sustainability
| Compliance certificates |
BIS/CE/cUL/KC/Norma Oficial Mexicana (NOM)/RCM/RoHS/UKCA/UL |
|---|
