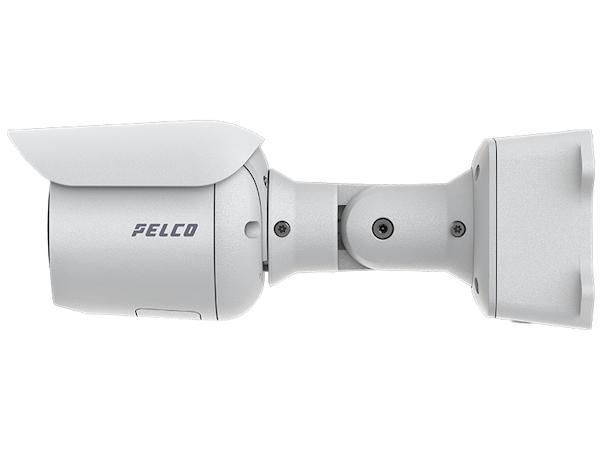

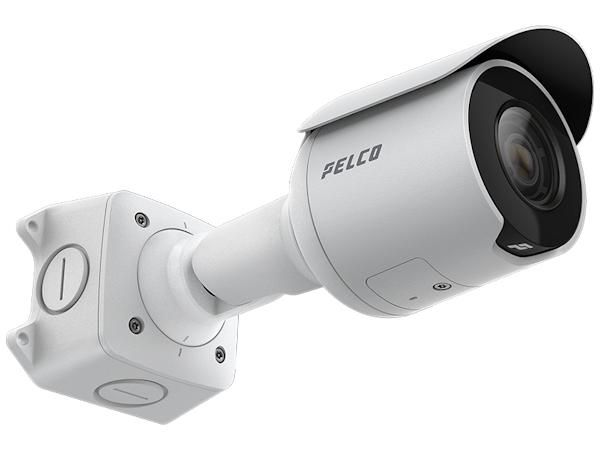

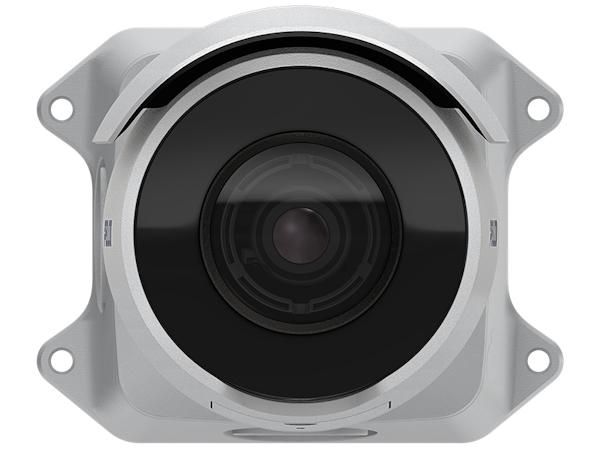

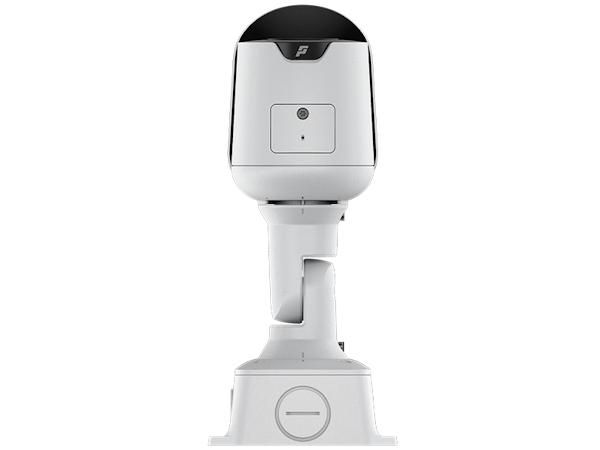

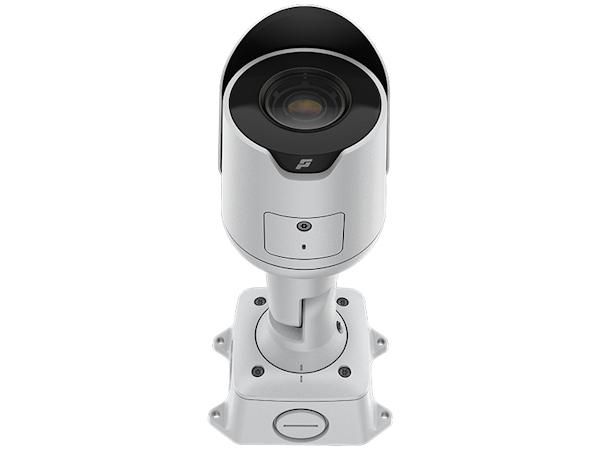

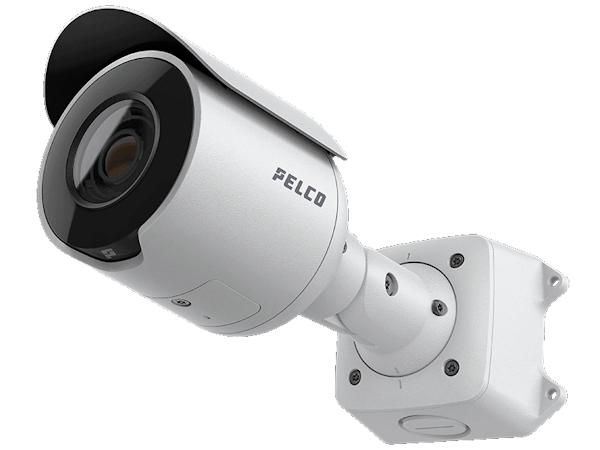

Pelco 1/2.8" CMOS, 1920x1080px, 2MP, 50m IR, 60 fps, 12V PoE
€226,25
Model: SRXP4-2V10-EBT-IR
- Detecteer objecten met Smart Analytics
- Flexibele lensopties
- Zie in fel licht en weinig licht
- Gemakkelijk te implementeren
- Bescherming tegen cyberaanvallen
- Integreert met uw ONVIF-conforme VMS
Ervaar ongeëvenaarde beveiliging met de Pelco 1/2.8" CMOS camera. Met een hoge resolutie van 1920x1080 pixels en een krachtige 2MP sensor, levert deze camera haarscherpe beelden. Geniet van duidelijke zichtbaarheid, zelfs in het donker, dankzij de 50 meter infrarood nachtzicht. Met een snelle beeldverversing van 60 fps en ondersteuning voor 12V Power over Ethernet (PoE), is deze camera ideaal voor zowel binnen- als buitentoepassingen. Kies voor betrouwbaarheid en innovatieve beveiligingstechnologie met de Pelco bewakingscamera.
Audio |
|
| Audio formats supported | G.711/PCM |
| Sample rate | 8kHz |
| Signal-to-Noise Ratio (SNR) | 50dB |
Camera |
|
| Angle of rotation | 350° |
| Camera shutter speed | 1/7.5 - 1/30000Second |
| Camera shutter type | Elektronisch |
| Lens viewing angle, horizontal | 101° |
| Lens viewing angle, vertical | 53° |
| Minimum illumination | 0,005Lux |
| Number of Privacy masking areas | 64 |
| Pan range | -175 - 175° |
| Tilt angle range | -90 - 90° |
| White balance | Auto/Handmatig |
Design |
|
| Form factor | Kogelschieter |
| Housing material | Aluminium |
| IK code | IK10 |
| International Protection (IP) code | IP66, IP67 |
| Mounting type | Muur |
| Product colour | Zwart/Wit |
| Protection features | Weerbestendig |
| Weatherproof | Ja |
Features |
|
| NDAA Compliance | Ja |
Image sensor |
|
| Number of sensors | 1 |
| Optical sensor size | 1/2.8" |
| Sensor type | CMOS |
Lens system |
|
| Auto focus | Ja |
| Focal length range | 3.4 - 10.5mm |
| Focus | Gemotoriseerd |
| Maximum aperture number | 1,6 |
| Number of lenses | 1 |
| Zoom capability | Ja |
Network |
|
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN | Ja |
| Networking standards | IEEE 802.3af |
| Streaming method | Multicast |
| Supported network protocols | IPv6, IPv4, HTTP, HTTPS, SOAP, DNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMPv3, ICMP, DHCP, Zeroconf, HSTS, RTP/UDP, RTP/UDP multicast, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/RTSP/HTTPS/TCP, HTTP, SRTP, SNMP v2c, SNMP v3 |
Night vision |
|
| Infra-red wavelength | 850nm |
| LED type | IR |
| Night vision | Ja |
| Night vision distance | 50m |
Operational conditions |
|
| Operating relative humidity (H-H) | 0 - 95procent |
| Operating temperature (T-T) | -40 - 60°C |
| Storage relative humidity (H-H) | 0 - 95procent |
| Storage temperature (T-T) | -10 - 70°C |
Package dimensions |
|
| Depth (package,cm) | 4cm |
| Gross Weight (Package, kg) | 5,8kg |
| Height (package,cm) | 23,805cm |
| Width (package,cm) | 29,67cm |
Packaging content |
|
| Number of cameras | 1 |
Performance |
|
| Alarm input/output | Ja |
| Certification | UL/CSA/EN/IEC 62368-1, IEC 62471, FCC Part 15 Subpart B (Class B), IC ICES-003 (Class B), EN 55032 (Class B), EN 61000-6-3, EN 61000-3-2, EN 61000-3-3, EN 55035, EN 61000-6-1, EN 50130-4, EN 50121-4 |
| Connectivity technology | Bedraad |
| Day/night mode | Ja |
| Dynamic range | 126dB |
| Infrared (IR) cut-off filter | Ja |
| Placement supported | Buiten |
| Type | IP beveiligingscamera |
| Wide Dynamic Range (WDR) | Ja |
Ports & interfaces |
|
| Ethernet LAN (RJ-45) ports | 1 |
| USB port | Ja |
Power |
|
| Battery technology | Lithium |
| Power consumption (Power over Ethernet (PoE)) | 13Watt |
| Power source type | Batterij/PoE |
Product dimensions |
|
| Net Weight (Product, kg) | 5,8kg |
| Product Depth | 4cm |
| Product Height | 23,805cm |
| Product Width | 29,67cm |
Security |
|
| Digest authentication | Ja |
| HTTPS encryption | Ja |
| Intelligent Video Surveillance (IVS) system features | Lijnoverschrijdingdetectie/Gemiste object/Movend object/Gebiedstoegangdetectie/Gebied verlaten detectie |
| Password protection | Ja |
| Privacy protection | Ja |
| Video motion detection | Ja |
Storage |
|
| Card reader integrated | Ja |
| Compatible memory cards | MicroSD (TransFlash)/MicroSDHC/MicroSDXC |
| Flash memory | 512MB |
| Maximum memory card size | 1,5#ProductAttributes.Unit.Terabyte# |
| RAM capacity | 1000MB |
Sustainability |
|
| Compliance certificates | BIS/CE/cUL/KC/Norma Oficial Mexicana (NOM)/RCM/RoHS/UKCA/UL |
Vendor information |
|
| Brand Name | Pelco |
| Homepage | https://www.pelco.com/products/cameras/fixed-ip-cameras/sarix-professional-series-4 |
| Warranty | 5#ProductAttributes.Unit.Year# |
Video |
|
| Back Light Compensation (BLC) | Ja |
| Frame rate | 60fps |
| Maximum resolution | 1920 x 1080Pixels |
| Noise reduction | Ja |
| Noise reduction technology | 3D-ruisreductie |
| Supported graphics resolutions | 1280 x 720 (HD 720)/1280 x 960/1440 x 1080/1920 x 1080 (HD 1080)/512 x 288/512 x 384/640 x 360/640 x 480 (VGA)/768 x 432/800 x 600 (SVGA)/960 x 720 |
| Total megapixels | 2MP |
| Video formats supported | H.264/H.265/M-JPEG |
| Video intelligence analytic | Ja |
| Video streaming | Ja |
Design
| Product colour |
Black/White |
|---|---|
| Protection features |
Weatherproof |
| Form factor |
Bullet |
| Housing material |
Aluminium |
| IK code |
IK10 |
| Mounting type |
Wall |
| Weatherproof |
Yes |
Features
| NDAA Compliance |
Yes |
|---|
Lens system
| Focal length range |
3.4 – 10.5mm |
|---|---|
| Auto focus |
Yes |
| Focus |
Motorized |
| Maximum aperture number |
1,6 |
| Number of lenses |
1 |
| Zoom capability |
Yes |
Night vision
| Night vision distance |
50m |
|---|---|
| Infra-red wavelength |
850nm |
| LED type |
IR |
| Night vision |
Yes |
Logistics data
| Placement supported |
Outdoor |
|---|
Vendor information
| Brand Name |
Pelco |
|---|---|
| Homepage |
https://www.pelco.com/products/cameras/fixed-ip-cameras/sarix-professional-series-4 |
| Warranty |
5#ProductAttributes.Unit.Year# |
Video
| Total megapixels |
2MP |
|---|---|
| Back Light Compensation (BLC) |
Yes |
| Frame rate |
60fps |
| Maximum resolution |
1920 x 1080Pixels |
| Noise reduction |
Yes |
| Noise reduction technology |
3D noise reduction |
| Video formats supported |
H.264/H.265/M-JPEG |
| Video streaming |
Yes |
Audio
| Audio formats supported |
G.711/PCM |
|---|---|
| Sample rate |
8kHz |
| Signal-to-Noise Ratio (SNR) |
50dB |
Camera
| Angle of rotation |
350° |
|---|---|
| Camera shutter speed |
1/7.5 – 1/30000Second |
| Camera shutter type |
Electronic |
| Lens viewing angle, vertical |
53° |
| Minimum illumination |
0,005Lux |
| Pan range |
-175 – 175° |
| Tilt angle range |
-90 – 90° |
| White balance |
Auto/Manual |
Image sensor
| Number of sensors |
1 |
|---|---|
| Optical sensor size |
1/2.8" |
| Sensor type |
CMOS |
Network
| Ethernet interface type |
Fast Ethernet |
|---|---|
| Ethernet LAN |
Yes |
| Networking standards |
IEEE 802.3af |
| Streaming method |
Multicast |
Operational conditions
| Operating temperature (T-T) |
-40 – 60°C |
|---|---|
| Storage temperature (T-T) |
-10 – 70°C |
Package dimensions
| Depth (package,cm) |
4cm |
|---|---|
| Gross Weight (Package, kg) |
5,8kg |
| Height (package,cm) |
23,805cm |
| Width (package,cm) |
29,67cm |
Packaging content
| Number of cameras |
1 |
|---|
Performance
| Alarm input/output |
Yes |
|---|---|
| Certification |
UL/CSA/EN/IEC 62368-1, IEC 62471, FCC Part 15 Subpart B (Class B), IC ICES-003 (Class B), EN 55032 (Class B), EN 61000-6-3, EN 61000-3-2, EN 61000-3-3, EN 55035, EN 61000-6-1, EN 50130-4, EN 50121-4 |
| Connectivity technology |
Wired |
| Day/night mode |
Yes |
| Dynamic range |
126dB |
| Infrared (IR) cut-off filter |
Yes |
| Wide Dynamic Range (WDR) |
Yes |
Ports & interfaces
| USB port |
Yes |
|---|
Power
| Battery technology |
Lithium |
|---|---|
| Power source type |
Battery/PoE |
Product dimensions
| Net Weight (Product, kg) |
5,8kg |
|---|---|
| Product Depth |
4cm |
| Product Height |
23,805cm |
| Product Width |
29,67cm |
Security
| Digest authentication |
Yes |
|---|---|
| HTTPS encryption |
Yes |
| Password protection |
Yes |
| Privacy protection |
Yes |
| Video motion detection |
Yes |
Storage
| Card reader integrated |
Yes |
|---|---|
| Compatible memory cards |
MicroSD (TransFlash)/MicroSDHC/MicroSDXC |
| Maximum memory card size |
1,5#ProductAttributes.Unit.Terabyte# |
| RAM capacity |
1000MB |
Indoor unit
| Flash memory |
512MB |
|---|
Sustainability
| Compliance certificates |
BIS/CE/cUL/KC/Norma Oficial Mexicana (NOM)/RCM/RoHS/UKCA/UL |
|---|
