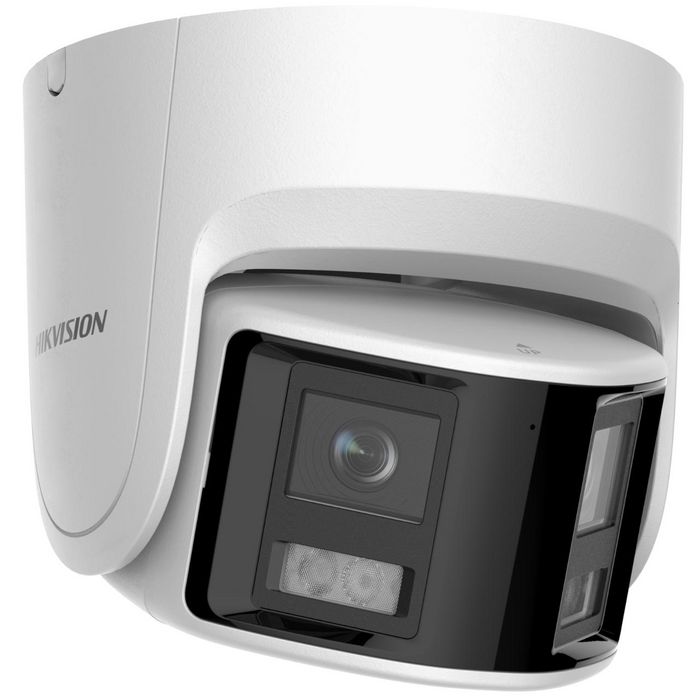

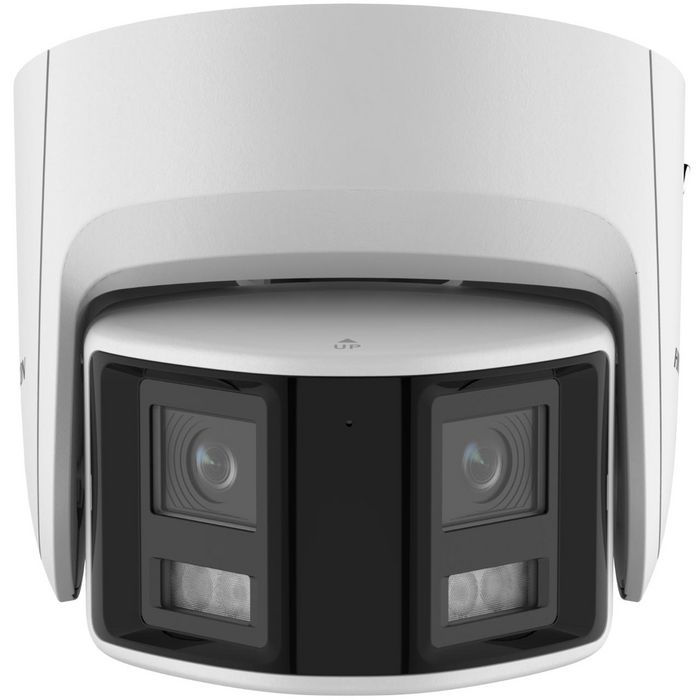

Hikvision Turret, Fixed Lens, IP67, 6 MP
€300,66
Model: DS-2CD2367G2P-LSU/SL(2.8MM)(C)
Ontdek de kracht en betrouwbaarheid van de Hikvision Turret met vaste lens. Deze hoogwaardige beveiligingscamera biedt haarscherpe beelden dankzij de indrukwekkende 6 MP resolutie. Ideaal voor zowel binnen als buiten, dankzij de IP67-classificatie die bescherming biedt tegen stof en water. Verhoog de veiligheid van uw huis of bedrijf met de geavanceerde technologie van Hikvision. Perfect voor wie op zoek is naar duidelijke bewakingsbeelden onder uiteenlopende weersomstandigheden. Kies voor kwaliteit en gemoedsrust met de Hikvision Turret-camera.
Audio |
|
| Audioformaten ondersteund | AAC-LC/G.711/G.722.1/G.726/MP2L2/MP3/PCM |
| Audio-ingangskanalen | 1kanalen |
| Audio-uitgangskanalen | 1kanalen |
| Ingebouwde luidspreker(s) | Ja |
| Monsterfrequenties | 8 - 48kHz |
| Signaal-ruisverhouding (SNR) | 52dB |
Camera |
|
| Camera sluitertijd | 1/3 - 1/100000Seconde |
| Lens kijkhoek, horizontaal | 180° |
| Lens kijkhoek, verticaal | 81° |
| Minimale belichting | 0,0005Lux |
| Pan-bereik | -30 - 30° |
| Tilt-hoek bereik | -75 - 75° |
Ontwerp |
|
| Behuismateriaal | Metaal |
| Internationale bescherming (IP) code | IP67 |
| Montagetype | Plafond |
| Productkleur | Zwart/Wit |
Beeldsensor |
|
| Aantal sensoren | 2 |
| Optische sensor grootte | 1/2.5" |
| Sensortype | CMOS |
Lenssysteem |
|
| Detectieafstand (breed) | 45m |
| Vaste brandpuntsafstand | 2,8mm |
| Identificatieafstand (breed) | 4,5m |
| Maximale diafragma nummer | 1 |
| Observeerafstand (breed) | 17,5m |
| Herkenningafstand (breed) | 9m |
Beheer functies |
|
| Gedragsanalyse | Inbraakdetectie/Lijnoverschrijding detectie/Gebied entree detectie/Gebied uitgang detectie |
| Resetknop | Ja |
| Webbrowser | Ja |
Netwerk |
|
| Bluetooth | Nee |
| Ethernet LAN | Ja |
| Livestream | Ja |
| Aantal gelijktijdige livestream kanalen | 6kanalen |
| Aantal gebruikers | 32gebruiker(s) |
| Ondersteunde netwerkprotocollen | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, Websocket, Websockets |
| Gebruikerstoegangsniveau | Administrator/Operator/Gebruiker |
| Wi-Fi | Nee |
Operationele voorwaarden |
|
| Werkende relatieve luchtvochtigheid (H-H) | 0 - 95procent |
| Werkende temperatuur (T-T) | -30 - 60°C |
| Opslag relatieve luchtvochtigheid (H-H) | 0 - 95procent |
| Opslag temperatuur (T-T) | -30 - 60°C |
Pakketafmetingen |
|
| Diepte (pakket, cm) | 23cm |
| Brutogewicht (pakket, kg) | 1,68kg |
| Hoogte (pakket, cm) | 23cm |
| Breedte (pakket, cm) | 23cm |
Verpakkingsinhoud |
|
| Aantal camera's | 1 |
Prestaties |
|
| Connectiviteitstechnologie | Bedraad |
| Dynamisch bereik | 130dB |
| Taalondersteuning | Oekraïens |
| Aantal talen | 33 |
| Plaatsing ondersteund | Binnen & buiten |
| Wide Dynamic Range (WDR) | Ja |
Poorten en interfaces |
|
| Ethernet LAN (RJ-45) poorten | 1 |
| Microfoon ingang | Ja |
Stroomvoorziening |
|
| DC-uitgangsspanning | 12 |
| Stroomverbruik (max) | 10,5Watt |
| Stroomverbruik (Power over Ethernet (PoE)) | 12,5Watt |
| Stroombron type | DC/PoE |
Productafmetingen |
|
| Netto gewicht (Product, kg) | 1,35kg |
| Productdiepte | 19cm |
| Producthoogte | 19cm |
| Productbreedte | 19cm |
Beveiliging |
|
| Alarm-ingangskanalen | 1 |
| Alarm-uitgangskanalen | 1 |
| Flitslog | Ja |
| Hartslag | Ja |
| Spiegel | Ja |
| Wachtwoordbeveiliging | Ja |
| Piksel teller | Ja |
| Beveiligingsalgoritmen | EAP-MD5/HTTPS |
| Videobewegingsdetectie | Ja |
Opslag |
|
| Ingebouwde HDD | Nee |
| Kaartlezer geïntegreerd | Ja |
| Compatibele geheugenkaarten | MicroSD (TransFlash)/MicroSDHC/MicroSDXC |
| Maximale geheugenkaartgrootte | 256GB |
Verzendinformatie |
|
| Merknaam | Hikvision |
| Garantie | 3#ProductAttributes.Unit.Year# |
Video |
|
| Achtergrondlichtcompensatie (BLC) | Ja |
| Bitrate | 32 Kbps tot 16 Kbps |
| Bitratecontrole | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Framerate | 20fps |
| Highlightcompensatie (HLC) | Ja |
| Beeldkwaliteitsinstelling | Helderheid/Contrast/Verzadiging/Schärp |
| Maximale resolutie | 3632 x 1632Pixels |
| Ruisonderdrukking | Ja |
| Ruisonderdrukkingstechnologie | 3D ruisonderdrukking |
| Geïntereseerde regio (ROI) codering | Ja |
| Ondersteunde grafische resoluties | 1200 x 536/3632 x 1632/960 x 432 |
| Totaal aantal megapixels | 6MP |
| Videocompressieformaten | H.264/H.264+/H.265/H.265+/M-JPEG |
Gewicht en afmetingen |
|
| Diameter | 14cm |
| Breedte (met standaard) | 168cm |
Design
| Product colour |
Black/White |
|---|---|
| Housing material |
Metal |
| Mounting type |
Ceiling |
Logistics data
| Placement supported |
Indoor & outdoor |
|---|
Vendor information
| Brand Name |
Hikvision |
|---|---|
| Warranty |
3#ProductAttributes.Unit.Year# |
Video
| Total megapixels |
6MP |
|---|---|
| Back Light Compensation (BLC) |
Yes |
| Bit rate |
32 Kbps to 16 Kbps |
| Bit rate control |
Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Frame rate |
20fps |
| Highlight Compensation (HLC) |
Yes |
| Image quality adjustment |
Brightness/Contrast/Saturation/Sharpness |
| Maximum resolution |
3632 x 1632Pixels |
| Noise reduction |
Yes |
| Noise reduction technology |
3D noise reduction |
| Video compression formats |
H.264/H.264+/H.265/H.265+/M-JPEG |
Audio
| Audio formats supported |
AAC-LC/G.711/G.722.1/G.726/MP2L2/MP3/PCM |
|---|---|
| Audio input channels |
1kanalen |
| Audio output channels |
1kanalen |
| Built-in speaker(s) |
Yes |
| Sample rates |
8 – 48kHz |
| Signal-to-Noise Ratio (SNR) |
52dB |
Camera
| Camera shutter speed |
1/3 – 1/100000Second |
|---|---|
| Lens viewing angle, vertical |
81° |
| Minimum illumination |
0,0005Lux |
| Pan range |
-30 – 30° |
| Tilt angle range |
-75 – 75° |
Image sensor
| Number of sensors |
2 |
|---|---|
| Optical sensor size |
1/2.5" |
| Sensor type |
CMOS |
Lens system
| Detect distance (wide) |
45m |
|---|---|
| Fixed focal length |
2,8mm |
| Identify distance (wide) |
4,5m |
| Maximum aperture number |
1 |
| Observe distance (wide) |
17,5m |
| Recognize distance (wide) |
9m |
Management features
| Behavior analysis |
Intrusion detection/Line crossing detection/Region entrance detection/Region exiting detection |
|---|---|
| Reset button |
Yes |
| Web browser |
Yes |
Network
| Bluetooth |
No |
|---|---|
| Ethernet LAN |
Yes |
| Live view |
Yes |
| Number of users |
32gebruiker(s) |
| Supported network protocols |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets |
| User access level |
Administrator/Operator/User |
| Wi-Fi |
No |
Operational conditions
| Operating temperature (T-T) |
-30 – 60°C |
|---|---|
| Storage temperature (T-T) |
-30 – 60°C |
Package dimensions
| Depth (package,cm) |
23cm |
|---|---|
| Gross Weight (Package, kg) |
1,68kg |
| Height (package,cm) |
23cm |
| Width (package,cm) |
23cm |
Packaging content
| Number of cameras |
1 |
|---|
Performance
| Connectivity technology |
Wired |
|---|---|
| Dynamic range |
130dB |
| Languages support |
Ukrainian |
| Number of languages |
33 |
| Wide Dynamic Range (WDR) |
Yes |
| Alarm output channels |
1 |
Ports & interfaces
| Microphone in |
Yes |
|---|
Power
| DC output voltage |
12 |
|---|---|
| Power consumption (max) |
10,5Watt |
| Power source type |
DC/PoE |
Product dimensions
| Net Weight (Product, kg) |
1,35kg |
|---|---|
| Product Depth |
19cm |
| Product Height |
19cm |
| Product Width |
19cm |
Indoor unit
| Alarm input channels |
1 |
|---|
Security
| Flash log |
Yes |
|---|---|
| Heartbeat |
Yes |
| Mirror |
Yes |
| Password protection |
Yes |
| Pixel counter |
Yes |
| Security algorithms |
EAP-MD5/HTTPS |
| Video motion detection |
Yes |
Storage
| Built-in HDD |
No |
|---|---|
| Card reader integrated |
Yes |
| Compatible memory cards |
MicroSD (TransFlash)/MicroSDHC/MicroSDXC |
| Maximum memory card size |
256GB |
Weight & dimensions
| Diameter |
14cm |
|---|---|
| Width (with stand) |
168cm |
