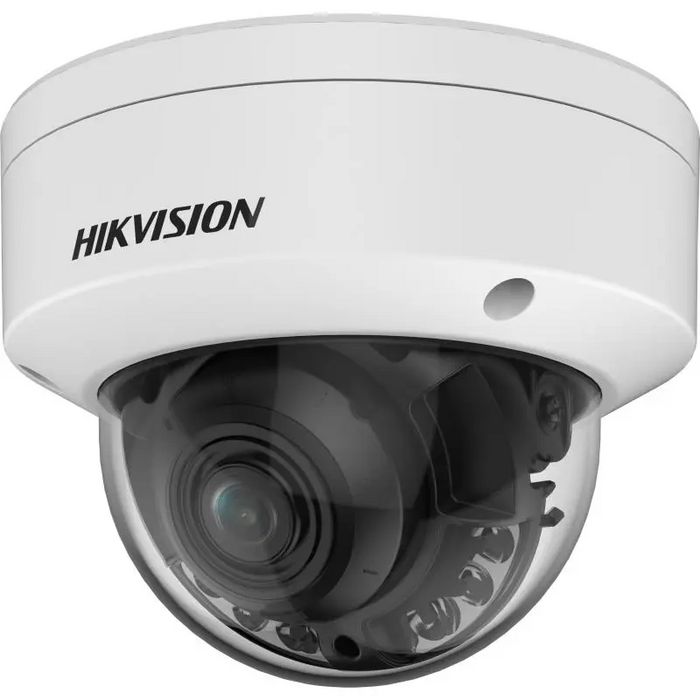

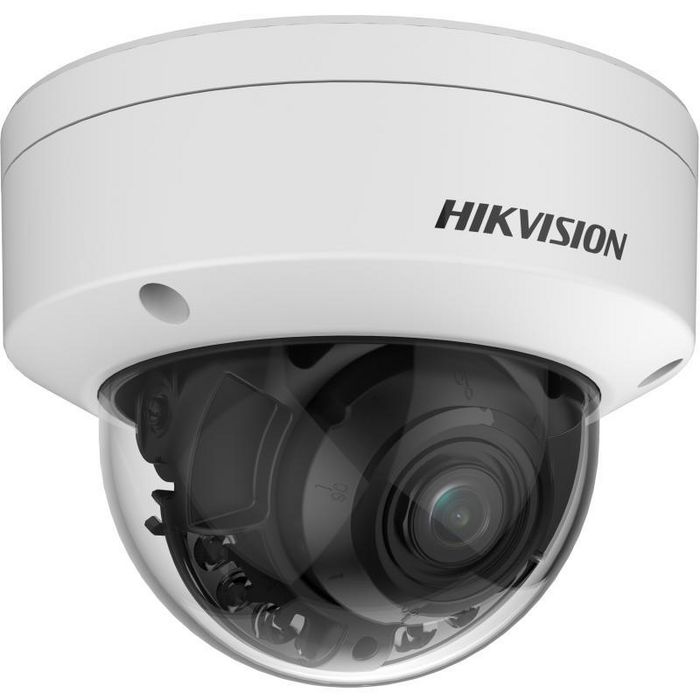

Hikvision 8 MP Smart Hybrid Light with ColorVu Moto Varifocal Dome Network Camera 2.8-12mm
€354,30
Model: DS-2CD2787G2HT-LIZS(2.8-12MM)(EF)(O-STD)
- Hoge kwaliteit beeldvorming met 8 MP resolutie
- Gemotoriseerde varifocale lens voor eenvoudige installatie en monitoring
- Slimme hybride verlichting: geavanceerde technologie met groot bereik
- Duidelijke beeldvorming tegen sterke tegenlicht door 130 dB WDR technologie
- Efficiënte H.265+ compressietechnologie
Efficiënte H.265+ compressietechnologie - Water- en stofbestendig (IP67) en vandalismebestendig (IK10)
Ervaar ongeëvenaarde beveiliging en helderheid met de Hikvision 8 MP Smart Hybrid Light Camera met ColorVu-technologie. Deze Moto Varifocale Dome Netwerkcamera met een objectief van 2.8-12mm biedt uitzonderlijke beeldkwaliteit, zelfs bij weinig licht. Met de geavanceerde ColorVu-functie geniet je van levendige kleuren en scherpe details, dag en nacht. De slimme hybride verlichting past zich automatisch aan om optimale zichtbaarheid te bieden, terwijl de varifocale lens flexibiliteit in zoommogelijkheden biedt. Ideaal voor zowel binnen- als buitenbeveiliging, deze innovatieve Hikvision camera verzekert je van betrouwbaarheid en veiligheid. Verbeter je beveiligingsstrategie met de nieuwste technologie in netwerkcamera's en bescherm wat voor jou belangrijk is.
Audio |
|
| Audio formats supported | AAC-LC/G.711/G.722.1/G.726/MP2L2/MP3/PCM |
| Audio input channels | 1kanalen |
| Audio output channels | 1kanalen |
| Bit rate range | 8 - 320Kbit/s |
| Built-in microphone | Ja |
| Sample rates | 8 - 48kHz |
| Signal-to-Noise Ratio (SNR) | 52dB |
Camera |
|
| Angle of rotation | 355° |
| Camera pan control | Ja |
| Camera shutter speed | 1/3 - 1/100000Seconde |
| Lens viewing angle, diagonal | 137.4 - 47.3° |
| Lens viewing angle, horizontal | 112 - 41.2° |
| Lens viewing angle, vertical | 58.1 - 23.1° |
| Number of Privacy masking areas | 4 |
| Pan range | 0 - 355° |
| Tilt angle range | 0 - 75° |
Design |
|
| Housing material | Metaal |
| IK code | IK10 |
| International Protection (IP) code | IP67 |
| Mounting type | Plafond |
| Product colour | Wit |
| Protection features | Stofbestendig/Waterbestendig |
Image sensor |
|
| Number of sensors | 1 |
| Optical sensor size | 1/1.8" |
| Progressive scan | Ja |
| Sensor type | CMOS |
Lens system |
|
| Detect distance (tele) | 216m |
| Detect distance (wide) | 87m |
| Focal length range | 2.8 - 12mm |
| Identify distance (tele) | 22m |
| Identify distance (wide) | 9m |
| Maximum aperture number | 1,2 |
| Number of lenses | 1 |
| Observe distance (tele) | 86m |
| Observe distance (wide) | 35m |
| Recognize distance (tele) | 43m |
| Recognize distance (wide) | 17m |
Management features |
|
| Behavior analysis | Inbraakalarm/Lijnoverschrijdingsdetectie/Gebied entree detectie/Gebied uitgang detectie |
| Reset button | Ja |
| Web-based management | Ja |
Network |
|
| Bluetooth | Nee |
| Client interoperability | iVMS-4200, Hik-Connect, Hik-Central |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN | Ja |
| Live view | Ja |
| Number of simultaneous live view channels | 6kanalen |
| Number of users | 32gebruiker(s) |
| Quality of Service (QoS) support | Ja |
| Supported network protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP |
| User access level | Administrator/Operator/Gebruiker |
| Wi-Fi | Nee |
Night vision |
|
| Infra-red wavelength | 850nm |
| LED type | IR |
| Night vision | Ja |
| Night vision distance | 40m |
Operational conditions |
|
| Operating relative humidity (H-H) | 0 - 95procent |
| Operating temperature (T-T) | -30 - 60°C |
| Storage relative humidity (H-H) | 0 - 95procent |
| Storage temperature (T-T) | -30 - 60°C |
Package dimensions |
|
| Depth (package,cm) | 20cm |
| Gross Weight (Package, kg) | 1,44kg |
| Height (package,cm) | 20,3cm |
| Width (package,cm) | 20cm |
Packaging content |
|
| Number of cameras | 1 |
Performance |
|
| Alarm input/output | Ja |
| Built-in light | Ja |
| Connectivity technology | Bedraad |
| Day/night mode | Ja |
| Dynamic range | 130dB |
| Infrared (IR) cut-off filter | Ja |
| Languages support | Meerdere |
| Number of languages | 33 |
| Placement supported | Buiten |
| PTZ control | Nee |
| Thermal module | Nee |
| Wide Dynamic Range (WDR) | Ja |
Ports & interfaces |
|
| Ethernet LAN (RJ-45) ports | 1 |
| Terminal block port | Ja |
Power |
|
| DC output current | 0,9A |
| DC output voltage | 12 |
| Power consumption (max) | 10,8Watt |
| Power consumption (Power over Ethernet (PoE)) | 12,9Watt |
| Power source type | DC/PoE |
Product dimensions |
|
| Net Weight (Product, kg) | 0,82kg |
| Product Depth | 11,2cm |
| Product Height | 14,1cm |
| Product Width | 14,1cm |
Security |
|
| Active tampering alarm | Ja |
| Alarm input channels | 1 |
| Alarm output channels | 1 |
| Audit log | Ja |
| Automatic Network Replenishment (ANR) | Ja |
| Digest authentication | Ja |
| Digital watermark | Ja |
| Heartbeat | Ja |
| HTTPS encryption | Ja |
| Human and vehicle targets classification | Ja |
| IP address filtering | Ja |
| Mirror | Ja |
| Network access storage (NAS) | Ja |
| Password protection | Ja |
| Password reset via email | Ja |
| Pixel counter | Ja |
| Privacy protection | Ja |
| Security algorithms | EAP-LEAP/EAP-MD5/EAP-TLS |
| Video motion detection | Ja |
Storage |
|
| Built-in HDD | Nee |
| Card reader integrated | Ja |
| Compatible memory cards | MicroSD (TransFlash)/MicroSDHC/MicroSDXC |
| Maximum memory card size | 512GB |
Technical details |
|
| Iris | Ja |
| Sustainability certificates | CB/CE/KC/RoHS |
| Sustainability compliance | Ja |
Vendor information |
|
| Brand Name | Hikvision |
| Warranty | 3#ProductAttributes.Unit.Year# |
Video |
|
| Back Light Compensation (BLC) | Ja |
| Bit rate | 32 Kbps - 16 Mbps |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Frame rate | 30fps |
| Highlight Compensation (HLC) | Ja |
| Image quality adjustment | Helderheid/Contrast/Verzadiging/Schärpte |
| Maximum resolution | 3840 x 2160Pixels |
| Noise reduction | Ja |
| Noise reduction technology | 3D ruisonderdrukking |
| Privacy masking | Ja |
| Region of Interest (ROI) encoding | Ja |
| Supported graphics resolutions | 1280 x 720 (HD 720)/1920 x 1080 (HD 1080)/2688 x 1520/3200 x 1800/3840 x 2160/640 x 360/640 x 480 (VGA) |
| Total megapixels | 8MP |
| Video compression formats | H.264/H.264+/H.265/H.265+/M-JPEG |
| Video intelligence analytic | Ja |
| Video streaming | Ja |
Weight & dimensions |
|
| Diameter | 14,1cm |
Design
| Product colour |
White |
|---|---|
| Protection features |
Dust resistant/Water resistant |
| Housing material |
Metal |
| IK code |
IK10 |
| Mounting type |
Ceiling |
Lens system
| Focal length range |
2.8 – 12mm |
|---|---|
| Detect distance (tele) |
216m |
| Detect distance (wide) |
87m |
| Identify distance (tele) |
22m |
| Identify distance (wide) |
9m |
| Maximum aperture number |
1,2 |
| Number of lenses |
1 |
| Observe distance (tele) |
86m |
| Observe distance (wide) |
35m |
| Recognize distance (tele) |
43m |
| Recognize distance (wide) |
17m |
Night vision
| Night vision distance |
40m |
|---|---|
| Infra-red wavelength |
850nm |
| LED type |
IR |
| Night vision |
Yes |
Logistics data
| Placement supported |
Outdoor |
|---|
Vendor information
| Brand Name |
Hikvision |
|---|---|
| Warranty |
3#ProductAttributes.Unit.Year# |
Video
| Total megapixels |
8MP |
|---|---|
| Back Light Compensation (BLC) |
Yes |
| Bit rate |
32 Kbps – 16 Mbps |
| Bit rate control |
Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Frame rate |
30fps |
| Highlight Compensation (HLC) |
Yes |
| Image quality adjustment |
Brightness/Contrast/Saturation/Sharpness |
| Maximum resolution |
3840 x 2160Pixels |
| Noise reduction |
Yes |
| Noise reduction technology |
3D noise reduction |
| Privacy masking |
Yes |
| Video compression formats |
H.264/H.264+/H.265/H.265+/M-JPEG |
| Video streaming |
Yes |
Audio
| Audio formats supported |
AAC-LC/G.711/G.722.1/G.726/MP2L2/MP3/PCM |
|---|---|
| Audio input channels |
1kanalen |
| Audio output channels |
1kanalen |
| Bit rate range |
8 – 320Kbit/s |
| Sample rates |
8 – 48kHz |
| Signal-to-Noise Ratio (SNR) |
52dB |
Features
| Built-in microphone |
Yes |
|---|
Camera
| Angle of rotation |
355° |
|---|---|
| Camera pan control |
Yes |
| Camera shutter speed |
1/3 – 1/100000Second |
| Lens viewing angle, diagonal |
137.4 – 47.3° |
| Lens viewing angle, vertical |
58.1 – 23.1° |
| Pan range |
0 – 355° |
| Tilt angle range |
0 – 75° |
Image sensor
| Number of sensors |
1 |
|---|---|
| Optical sensor size |
1/1.8" |
| Progressive scan |
Yes |
| Sensor type |
CMOS |
Management features
| Behavior analysis |
Intrusion detection/Line crossing detection/Region entrance detection/Region exiting detection |
|---|---|
| Reset button |
Yes |
| Web-based management |
Yes |
Network
| Bluetooth |
No |
|---|---|
| Client interoperability |
iVMS-4200, Hik-Connect, Hik-Central |
| Ethernet interface type |
Fast Ethernet |
| Ethernet LAN |
Yes |
| Live view |
Yes |
| Number of users |
32gebruiker(s) |
| Supported network protocols |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP |
| User access level |
Administrator/Operator/User |
| Wi-Fi |
No |
Operational conditions
| Operating temperature (T-T) |
-30 – 60°C |
|---|---|
| Storage temperature (T-T) |
-30 – 60°C |
Package dimensions
| Depth (package,cm) |
20cm |
|---|---|
| Gross Weight (Package, kg) |
1,44kg |
| Height (package,cm) |
20,3cm |
| Width (package,cm) |
20cm |
Packaging content
| Number of cameras |
1 |
|---|
Performance
| Alarm input/output |
Yes |
|---|---|
| Built-in light |
Yes |
| Connectivity technology |
Wired |
| Day/night mode |
Yes |
| Dynamic range |
130dB |
| Infrared (IR) cut-off filter |
Yes |
| Languages support |
Multi |
| Number of languages |
33 |
| PTZ control |
No |
| Thermal module |
No |
| Wide Dynamic Range (WDR) |
Yes |
| Alarm output channels |
1 |
Ports & interfaces
| Terminal block port |
Yes |
|---|
Power
| DC output current |
0,9A |
|---|---|
| DC output voltage |
12 |
| Power consumption (max) |
10,8Watt |
| Power source type |
DC/PoE |
Product dimensions
| Net Weight (Product, kg) |
0,82kg |
|---|---|
| Product Depth |
11,2cm |
| Product Height |
14,1cm |
| Product Width |
14,1cm |
Security
| Active tampering alarm |
Yes |
|---|---|
| Audit log |
Yes |
| Digest authentication |
Yes |
| Digital watermark |
Yes |
| Heartbeat |
Yes |
| HTTPS encryption |
Yes |
| IP address filtering |
Yes |
| Mirror |
Yes |
| Network access storage (NAS) |
Yes |
| Password protection |
Yes |
| Password reset via email |
Yes |
| Pixel counter |
Yes |
| Privacy protection |
Yes |
| Security algorithms |
EAP-LEAP/EAP-MD5/EAP-TLS |
| Video motion detection |
Yes |
Indoor unit
| Alarm input channels |
1 |
|---|
Storage
| Built-in HDD |
No |
|---|---|
| Card reader integrated |
Yes |
| Compatible memory cards |
MicroSD (TransFlash)/MicroSDHC/MicroSDXC |
| Maximum memory card size |
512GB |
Technical details
| Iris |
Yes |
|---|---|
| Sustainability certificates |
CB/CE/KC/RoHS |
| Sustainability compliance |
Yes |
Weight & dimensions
| Diameter |
14,1cm |
|---|
