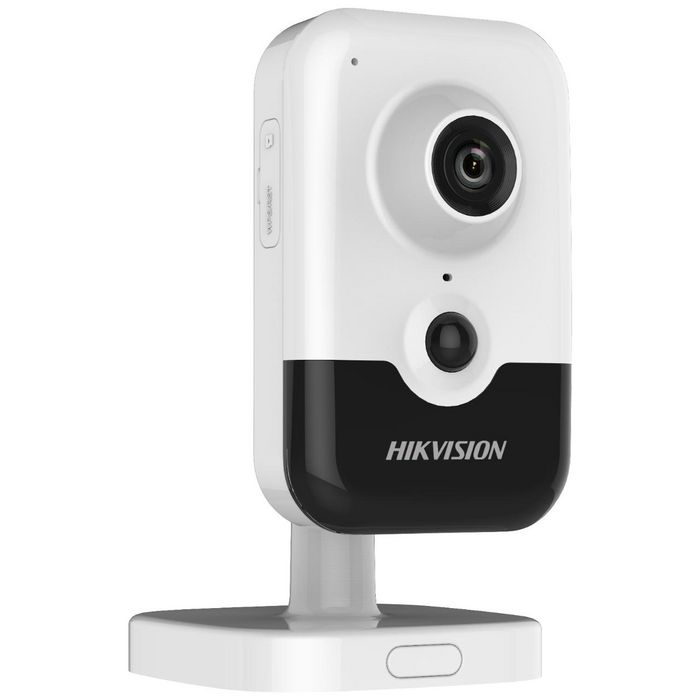

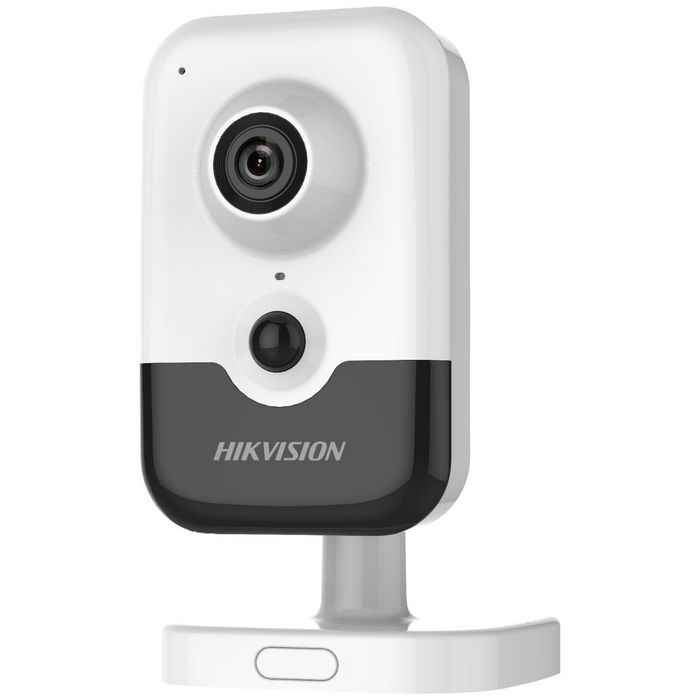

Hikvision 8 MP AcuSense Built-in Mic Fixed Cube Network Camera
€144,61
Model: DS-2CD2483G2-I(2.8MM)
Ontdek de geavanceerde bewakingsmogelijkheden van de Hikvision 8 MP AcuSense Cube Netwerkcamera. Met zijn scherpe 8 megapixel resolutie en ingebouwde microfoon biedt deze camera kristalheldere beelden en geluidsopnames. Dankzij de AcuSense-technologie herkent en onderscheidt de camera mensen en voertuigen van andere objecten, wat leidt tot nauwkeurige en efficiënte detectie. Perfect voor zowel binnen- als buitengebruik, deze vaste kubuscamera is eenvoudig te installeren en integreert naadloos in elk beveiligingssysteem. Verhoog de veiligheid van uw huis of bedrijf met de betrouwbare prestaties van Hikvision.
Audio |
|
| Audioformaten ondersteund | MP3 |
| Ingebouwde microfoon | Ja |
| Ingebouwde luidspreker(s) | Ja |
| Monsterfrequentie | 48kHz |
| Voice codecs | G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2 |
Camera |
|
| Rotatiehoek | 360° |
| Camera pan controle | Ja |
| Sluitertijd camera | 1/3 - 1/100000Seconde |
| Camera tilt controle | Ja |
| Lens kijkhoek, diagonaal | 126.7° |
| Lens kijkhoek, horizontaal | 107.8° |
| Lens kijkhoek, verticaal | 57.9° |
| Pan bereik | 0 - 360° |
| Tilt hoek bereik | 0 - 90° |
| Kijkhoek, diagonaal | 126,7° |
| Kijkhoek, horizontaal | 107,8° |
| Kijkhoek, verticaal | 57,9° |
Ontwerp |
|
| Behuizing materiaal | Kunststof |
| Montage type | Plafond/muur |
| Product kleur | Zwart/Wit |
Beeldsensor |
|
| Aantal sensoren | 1 |
| Optische sensor grootte | 1/2.8" |
| Progressieve scan | Ja |
| Sensor type | CMOS |
Lenzen systeem |
|
| Detectie afstand | 85,5m |
| Vaste brandpuntsafstand | 2,8mm |
| Bereik brandpuntsafstand | 2,8cm |
| Identificeer afstand | 8,6m |
| Maximale diafragma nummer | 2 |
| Aantal lenzen | 1 |
| Observeer afstand | 33,9m |
| Herken afstand | 17,1m |
Beheer functies |
|
| Gedragsanalyse | Inbraakdetectie/Lijnoverschrijdingdetectie |
| Resetknop | Ja |
| Webgebaseerd beheer | Ja |
Netwerk |
|
| Bluetooth | Nee |
| Ethernet interface type | Snelle Ethernet |
| Ethernet LAN | Ja |
| Netwerk standaarden | IEEE 802.1x/IEEE 802.3af |
| Aantal gebruikers | 32gebruiker(s) |
| Kwaliteit van Dienst (QoS) ondersteuning | Ja |
| Ondersteunde netwerkprotocollen | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, QoS, 802.1X, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP |
| Wi-Fi | Nee |
Nachtzicht |
|
| Infrarood golflengte | 850nm |
| LED type | IR |
| Nachtzicht | Ja |
| Nachtzicht afstand | 10m |
Operationele omstandigheden |
|
| Operationele relatieve vochtigheid (H-H) | 0 - 95procent |
| Operationele temperatuur (T-T) | -10 - 40°C |
| Opslag relatieve vochtigheid (H-H) | 0 - 95procent |
| Opslag temperatuur (T-T) | -10 - 40°C |
Pakket afmetingen |
|
| Diepte (pakket,cm) | 15cm |
| Bruto Gewicht (Pakket, kg) | 0,34kg |
| Hoogte (pakket,cm) | 9,9cm |
| Breedte (pakket,cm) | 12,5cm |
Verpakkingsinhoud |
|
| Aantal camera's | 1 |
Prestaties |
|
| Connectiviteit technologie | Bedraad |
| Dag/nacht modus | Ja |
| Infrarood (IR) afsluitfilter | Ja |
| Aantal talen | 33 |
| Ondersteunde plaatsing | Binnen |
| Brede Dynamische Bereik (WDR) | Ja |
Poorten & interfaces |
|
| Ethernet LAN (RJ-45) poorten | 1 |
Voeding |
|
| DC uitvoerspanning | 12 |
| Energieverbruik (max) | 5,9Watt |
| Energieverbruik (Power over Ethernet (PoE)) | 6,9Watt |
| Type stroombron | DC/PoE |
Productafmetingen |
|
| Netto Gewicht (Product, kg) | 0,24000000000000002kg |
| Product Diepte | 15cm |
| Product Hoogte | 9,9cm |
| Product Breedte | 12,5cm |
Beveiliging |
|
| Detectie afstand | 8m |
| Spiegel | Ja |
| Bewegingssensor | Ja |
| Bewegingssensor technologie | Passieve infrarood (PIR) sensor |
| Videobewegingsdetectie | Ja |
Opslag |
|
| Ingebouwde HDD | Nee |
| Geïntegreerde kaartlezer | Ja |
| Compatibele geheugenkaarten | MicroSD (TransFlash)/MicroSDHC/MicroSDXC |
| Maximale grootte geheugenkaart | 256GB |
Verkoper informatie |
|
| Mernaam | Hikvision |
| Garantie | 3#ProductAttributes.Unit.Year# |
Video |
|
| Achtergrondverlichting Compensatie (BLC) | Ja |
| Bit rate | 32 Kbps - 16 Mbps |
| Bit rate controle | Constante Bit Rate (CBR)/Variabele Bit Rate (VBR) |
| Frame rate | 30fps |
| Highlight Compensatie (HLC) | Ja |
| Afbeeldingskwaliteit aanpassing | Helderheid/Contrast/Spiegel/Saturatie/Scherpte |
| Maximale resolutie | 3840 x 2160Pixels |
| Ruisonderdrukking | Ja |
| Ruisonderdrukking technologie | 3D ruisonderdrukking |
| Privacy maskering | Ja |
| Regio van Interesse (ROI) encodering | Ja |
| Totaal aantal megapixels | 8MP |
| Videocompressieformaten | H.264/H.264+/H.265/H.265+/M-JPEG |
| Video streaming | Ja |
Design
| Product colour |
Black/White |
|---|---|
| Housing material |
Plastic |
| Mounting type |
Ceiling/wall |
Lens system
| Focal length range |
2,8cm |
|---|---|
| Detect distance |
85,5m |
| Fixed focal length |
2,8mm |
| Identify distance |
8,6m |
| Maximum aperture number |
2 |
| Number of lenses |
1 |
| Observe distance |
33,9m |
| Recognize distance |
17,1m |
Night vision
| Night vision distance |
10m |
|---|---|
| Infra-red wavelength |
850nm |
| LED type |
IR |
| Night vision |
Yes |
Logistics data
| Placement supported |
Indoor |
|---|
Vendor information
| Brand Name |
Hikvision |
|---|---|
| Warranty |
3#ProductAttributes.Unit.Year# |
Video
| Total megapixels |
8MP |
|---|---|
| Back Light Compensation (BLC) |
Yes |
| Bit rate |
32 Kbps – 16 Mbps |
| Bit rate control |
Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Frame rate |
30fps |
| Highlight Compensation (HLC) |
Yes |
| Image quality adjustment |
Brightness/Contrast/Mirror/Saturation/Sharpness |
| Maximum resolution |
3840 x 2160Pixels |
| Noise reduction |
Yes |
| Noise reduction technology |
3D noise reduction |
| Privacy masking |
Yes |
| Video compression formats |
H.264/H.264+/H.265/H.265+/M-JPEG |
| Video streaming |
Yes |
Audio
| Audio formats supported |
MP3 |
|---|---|
| Built-in speaker(s) |
Yes |
| Sample rate |
48kHz |
| Voice codecs |
G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2 |
Features
| Built-in microphone |
Yes |
|---|
Camera
| Angle of rotation |
360° |
|---|---|
| Camera pan control |
Yes |
| Camera shutter speed |
1/3 – 1/100000Second |
| Camera tilt control |
Yes |
| Lens viewing angle, diagonal |
126.7° |
| Lens viewing angle, vertical |
57.9° |
| Pan range |
0 – 360° |
| Tilt angle range |
0 – 90° |
| Viewing angle, diagonal |
126,7° |
| Viewing angle, horizontal |
107,8° |
| Viewing angle, vertical |
57,9° |
Image sensor
| Number of sensors |
1 |
|---|---|
| Optical sensor size |
1/2.8" |
| Progressive scan |
Yes |
| Sensor type |
CMOS |
Management features
| Behavior analysis |
Intrusion detection/Line crossing detection |
|---|---|
| Reset button |
Yes |
| Web-based management |
Yes |
Network
| Bluetooth |
No |
|---|---|
| Ethernet interface type |
Fast Ethernet |
| Ethernet LAN |
Yes |
| Networking standards |
IEEE 802.1x/IEEE 802.3af |
| Number of users |
32gebruiker(s) |
| Supported network protocols |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, QoS, 802.1X, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP |
| Wi-Fi |
No |
Operational conditions
| Operating temperature (T-T) |
-10 – 40°C |
|---|---|
| Storage temperature (T-T) |
-10 – 40°C |
Package dimensions
| Depth (package,cm) |
15cm |
|---|---|
| Gross Weight (Package, kg) |
0,34kg |
| Height (package,cm) |
9,9cm |
| Width (package,cm) |
12,5cm |
Packaging content
| Number of cameras |
1 |
|---|
Performance
| Connectivity technology |
Wired |
|---|---|
| Day/night mode |
Yes |
| Infrared (IR) cut-off filter |
Yes |
| Number of languages |
33 |
| Wide Dynamic Range (WDR) |
Yes |
Power
| DC output voltage |
12 |
|---|---|
| Power consumption (max) |
5,9Watt |
| Power source type |
DC/PoE |
Product dimensions
| Net Weight (Product, kg) |
0,24kg |
|---|---|
| Product Depth |
15cm |
| Product Height |
9,9cm |
| Product Width |
12,5cm |
Security
| Detection distance |
8m |
|---|---|
| Mirror |
Yes |
| Motion sensor |
Yes |
| Motion sensor technology |
Passive infrared (PIR) sensor |
| Video motion detection |
Yes |
Storage
| Built-in HDD |
No |
|---|---|
| Card reader integrated |
Yes |
| Compatible memory cards |
MicroSD (TransFlash)/MicroSDHC/MicroSDXC |
| Maximum memory card size |
256GB |
