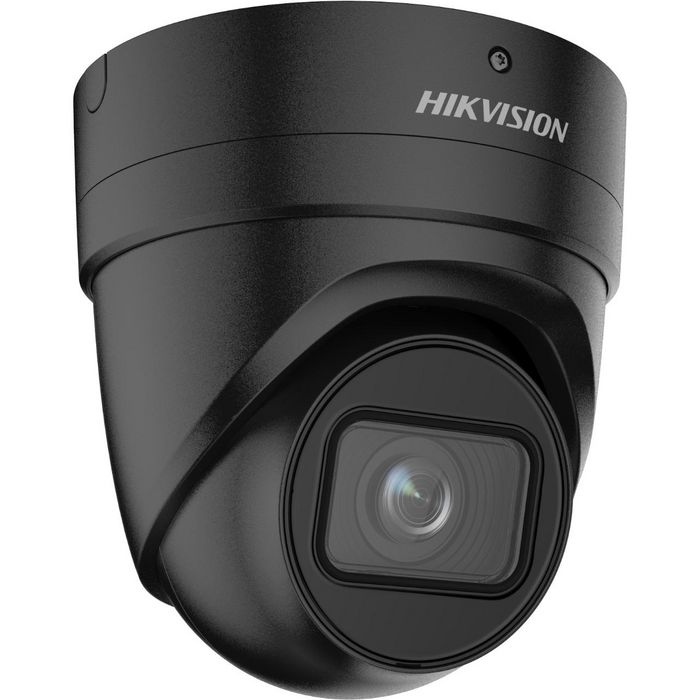

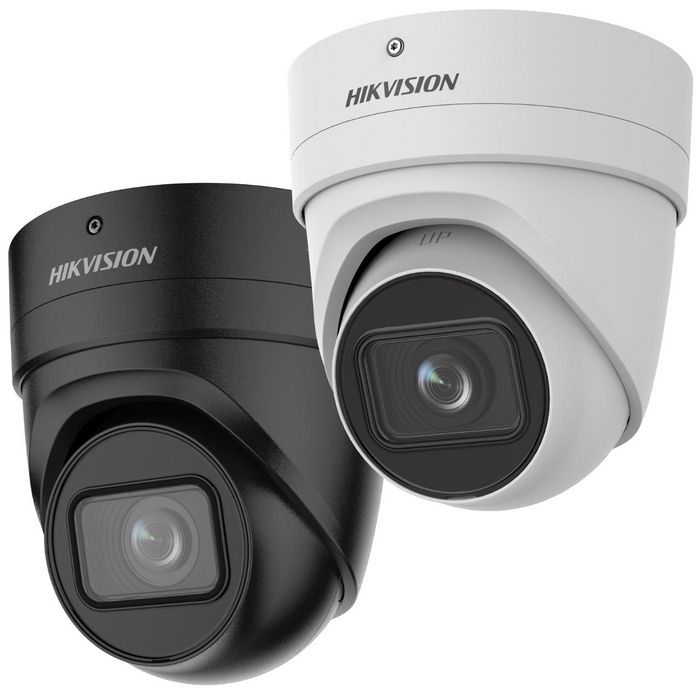

Hikvision 4K Acusense Motorized Varifocal Turret Network Camera 2.8-12mm
€315,29
Model: DS-2CD2H86G2-IZS(2.8-12MM)(C)/BLACK
De Hikvision 4K Acusense Motorized Varifocal Turret Network Camera 2.8-12mm biedt geavanceerde beveiligingsoplossingen voor uw huis of bedrijf. Met een verbluffende 4K-resolutie levert deze camera haarscherpe beelden en superieure details, zelfs in uitdagende lichtomstandigheden. De geavanceerde Acusense-technologie maakt gebruik van intelligente detectie om valse alarmen te verminderen en kritieke gebeurtenissen nauwkeurig vast te leggen. Dankzij de motorized varifocal lens van 2.8-12mm kunt u eenvoudig de kijkhoek aanpassen aan uw specifieke behoeften. Deze robuuste turretcamera is ideaal voor zowel binnen- als buitengebruik en garandeert betrouwbare prestaties, ongeacht het weer. Optimaliseer uw beveiliging met de kracht en veelzijdigheid van de Hikvision 4K Acusense camera.
Audio |
|
| Audio input channels | 1kanalen |
| Audio output channels | 1kanalen |
| Sample rates | 8 - 48kHz |
| Signal-to-Noise Ratio (SNR) | 52dB |
| Voice codecs | AAC/G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM |
Camera |
|
| Angle of rotation | 360° |
| Camera pan control | Ja |
| Camera shutter speed | 1/3 - 1/100000Seconde |
| Camera tilt control | Ja |
| Lens viewing angle, diagonal | 127.4° |
| Lens viewing angle, horizontal | 108° |
| Lens viewing angle, vertical | 58° |
| Pan range | 0 - 355° |
| Tilt angle range | 0 - 75° |
| Viewing angle, diagonal | 127,4° |
| Viewing angle, horizontal | 108° |
| Viewing angle, vertical | 58° |
Design |
|
| IK code | IK10 |
| International Protection (IP) code | IP66 |
| Mounting type | Plafond/wand |
| Product colour | Zwart |
| Protection features | Stofdicht/Vandalismebestendig/Waterdicht |
Image sensor |
|
| Number of sensors | 1 |
| Optical sensor size | 1/1.8" |
| Progressive scan | Ja |
| Sensor type | CMOS |
Lens system |
|
| Detect distance (tele) | 214m |
| Detect distance (wide) | 86m |
| Focal length range | 2.8 - 12mm |
| Identify distance (tele) | 21,4m |
| Identify distance (wide) | 8,6m |
| Maximum aperture number | 1,4 |
| Number of lenses | 1 |
| Observe distance (tele) | 84,9m |
| Observe distance (wide) | 34,1m |
| Recognize distance (tele) | 42,8m |
| Recognize distance (wide) | 17,2m |
Management features |
|
| Behavior analysis | Inbraakalarm/Lijnoverschrijdingsdetectie/Region entrance detection/Region exiting detection |
| Web browser | Ja |
Network |
|
| Bluetooth | Nee |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN | Ja |
| Networking standards | IEEE 802.3af |
| Number of users | 32gebruiker(s) |
| Quality of Service (QoS) support | Ja |
| Supported network protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP |
| Wi-Fi | Nee |
Night vision |
|
| Infra-red wavelength | 850nm |
| LED type | IR |
| Night vision | Ja |
| Night vision distance | 40m |
Operational conditions |
|
| Operating relative humidity (H-H) | 0 - 95procent |
| Operating temperature (T-T) | -30 - 60°C |
| Storage relative humidity (H-H) | 0 - 95procent |
| Storage temperature (T-T) | -30 - 60°C |
Package dimensions |
|
| Depth (package,cm) | 17cm |
| Gross Weight (Package, kg) | 1,56kg |
| Height (package,cm) | 20,5cm |
| Width (package,cm) | 17cm |
Packaging content |
|
| Number of cameras | 1 |
Performance |
|
| Alarm input/output | Ja |
| Connectivity technology | Bedraad |
| Day/night mode | Ja |
| Infrared (IR) cut-off filter | Ja |
| Languages support | Meerdere |
| Number of languages | 33 |
| Placement supported | Binnen & buiten |
| Wide Dynamic Range (WDR) | Ja |
Ports & interfaces |
|
| Ethernet LAN (RJ-45) ports | 1 |
Power |
|
| DC output current | 0,92A |
| DC output voltage | 12 |
| Power consumption (max) | 11,04Watt |
| Power consumption (Power over Ethernet (PoE)) | 12,5Watt |
| Power source type | DC/PoE |
Product dimensions |
|
| Net Weight (Product, kg) | 0,53kg |
| Product Depth | 17cm |
| Product Height | 20,5cm |
| Product Width | 17cm |
Security |
|
| Active tampering alarm | Ja |
| Alert notification type | |
| Anti-flicker | Ja |
| Heartbeat | Ja |
| HTTPS encryption | Ja |
| Intelligent Video Surveillance (IVS) system features | Gezichtsdetectie/Scene wijziging |
| IP address filtering | Ja |
| Mirror | Ja |
| Password protection | Ja |
| Security algorithms | TLS |
| Video motion detection | Ja |
Storage |
|
| Built-in HDD | Nee |
| Card reader integrated | Ja |
| Compatible memory cards | MicroSD (TransFlash)/MicroSDHC/MicroSDXC |
| Maximum memory card size | 256GB |
Vendor information |
|
| Brand Name | Hikvision |
| Warranty | 3#ProductAttributes.Unit.Year# |
Video |
|
| Back Light Compensation (BLC) | Ja |
| Bit rate | 32 Kbps - 16 Mbps |
| Bit rate control | Constante Bit Rate (CBR)/Variabele Bit Rate (VBR) |
| Frame rate | 30fps |
| Gain control type | Auto |
| Highlight Compensation (HLC) | Ja |
| Image quality adjustment | Helderheid/Contrast/Saturatie/Scherpte |
| Maximum resolution | 3840 x 2160Pixels |
| Noise reduction | Ja |
| Noise reduction technology | 3D ruisonderdrukking |
| Privacy masking | Ja |
| Region of Interest (ROI) encoding | Ja |
| Supported graphics resolutions | 1280 x 720 (HD 720)/1920 x 1080 (HD 1080)/2688 x 1520/3200 x 1800/3840 x 2160/640 x 360/640 x 480 (VGA) |
| Total megapixels | 8MP |
| Video compression formats | H.264/H.264+/H.265/H.265+/M-JPEG |
| Video streaming | Ja |
Weight & dimensions |
|
| Diameter | 13,58cm |
| Length | 14,55cm |
Design
| Product colour |
Black |
|---|---|
| Protection features |
Dust resistant/Vandal proof/Water resistant |
| IK code |
IK10 |
| Mounting type |
Ceiling/wall |
Lens system
| Focal length range |
2.8 – 12mm |
|---|---|
| Detect distance (tele) |
214m |
| Detect distance (wide) |
86m |
| Identify distance (tele) |
21,4m |
| Identify distance (wide) |
8,6m |
| Maximum aperture number |
1,4 |
| Number of lenses |
1 |
| Observe distance (tele) |
84,9m |
| Observe distance (wide) |
34,1m |
| Recognize distance (tele) |
42,8m |
| Recognize distance (wide) |
17,2m |
Night vision
| Night vision distance |
40m |
|---|---|
| Infra-red wavelength |
850nm |
| LED type |
IR |
| Night vision |
Yes |
Logistics data
| Placement supported |
Indoor & outdoor |
|---|
Vendor information
| Brand Name |
Hikvision |
|---|---|
| Warranty |
3#ProductAttributes.Unit.Year# |
Video
| Total megapixels |
8MP |
|---|---|
| Back Light Compensation (BLC) |
Yes |
| Bit rate |
32 Kbps – 16 Mbps |
| Bit rate control |
Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Frame rate |
30fps |
| Gain control type |
Auto |
| Highlight Compensation (HLC) |
Yes |
| Image quality adjustment |
Brightness/Contrast/Saturation/Sharpness |
| Maximum resolution |
3840 x 2160Pixels |
| Noise reduction |
Yes |
| Noise reduction technology |
3D noise reduction |
| Privacy masking |
Yes |
| Video compression formats |
H.264/H.264+/H.265/H.265+/M-JPEG |
| Video streaming |
Yes |
Audio
| Audio input channels |
1kanalen |
|---|---|
| Audio output channels |
1kanalen |
| Sample rates |
8 – 48kHz |
| Signal-to-Noise Ratio (SNR) |
52dB |
| Voice codecs |
AAC/G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM |
Camera
| Angle of rotation |
360° |
|---|---|
| Camera pan control |
Yes |
| Camera shutter speed |
1/3 – 1/100000Second |
| Camera tilt control |
Yes |
| Lens viewing angle, diagonal |
127.4° |
| Lens viewing angle, vertical |
58° |
| Pan range |
0 – 355° |
| Tilt angle range |
0 – 75° |
| Viewing angle, diagonal |
127,4° |
| Viewing angle, horizontal |
108° |
| Viewing angle, vertical |
58° |
Image sensor
| Number of sensors |
1 |
|---|---|
| Optical sensor size |
1/1.8" |
| Progressive scan |
Yes |
| Sensor type |
CMOS |
Management features
| Behavior analysis |
Intrusion detection/Line crossing detection/Region entrance detection/Region exiting detection |
|---|---|
| Web browser |
Yes |
Network
| Bluetooth |
No |
|---|---|
| Ethernet interface type |
Fast Ethernet |
| Ethernet LAN |
Yes |
| Networking standards |
IEEE 802.3af |
| Number of users |
32gebruiker(s) |
| Supported network protocols |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP |
| Wi-Fi |
No |
Operational conditions
| Operating temperature (T-T) |
-30 – 60°C |
|---|---|
| Storage temperature (T-T) |
-30 – 60°C |
Package dimensions
| Depth (package,cm) |
17cm |
|---|---|
| Gross Weight (Package, kg) |
1,56kg |
| Height (package,cm) |
20,5cm |
| Width (package,cm) |
17cm |
Packaging content
| Number of cameras |
1 |
|---|
Performance
| Alarm input/output |
Yes |
|---|---|
| Connectivity technology |
Wired |
| Day/night mode |
Yes |
| Infrared (IR) cut-off filter |
Yes |
| Languages support |
Multi |
| Number of languages |
33 |
| Wide Dynamic Range (WDR) |
Yes |
Power
| DC output current |
0,92A |
|---|---|
| DC output voltage |
12 |
| Power consumption (max) |
11,04Watt |
| Power source type |
DC/PoE |
Product dimensions
| Net Weight (Product, kg) |
0,53kg |
|---|---|
| Product Depth |
17cm |
| Product Height |
20,5cm |
| Product Width |
17cm |
Security
| Active tampering alarm |
Yes |
|---|---|
| Alert notification type |
|
| Anti-flicker |
Yes |
| Heartbeat |
Yes |
| HTTPS encryption |
Yes |
| IP address filtering |
Yes |
| Mirror |
Yes |
| Password protection |
Yes |
| Security algorithms |
TLS |
| Video motion detection |
Yes |
Storage
| Built-in HDD |
No |
|---|---|
| Card reader integrated |
Yes |
| Compatible memory cards |
MicroSD (TransFlash)/MicroSDHC/MicroSDXC |
| Maximum memory card size |
256GB |
Weight & dimensions
| Diameter |
13,58cm |
|---|---|
| Length |
14,55cm |
