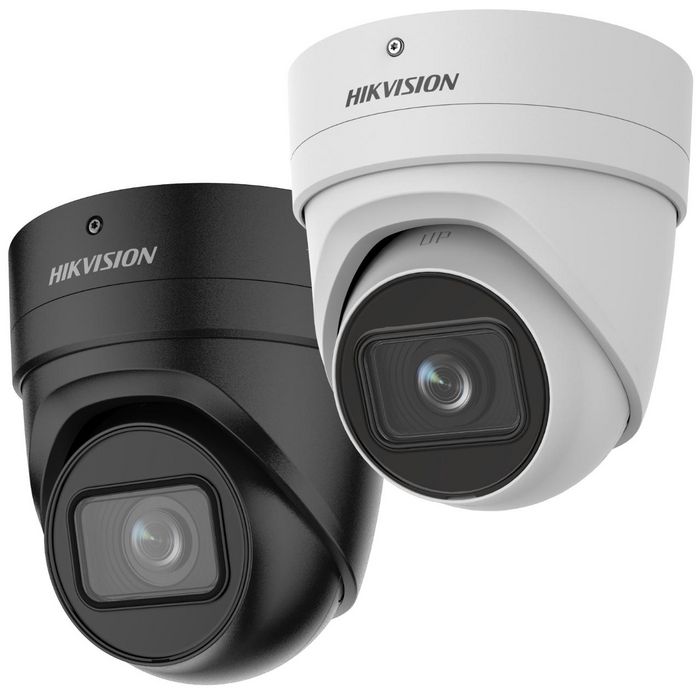

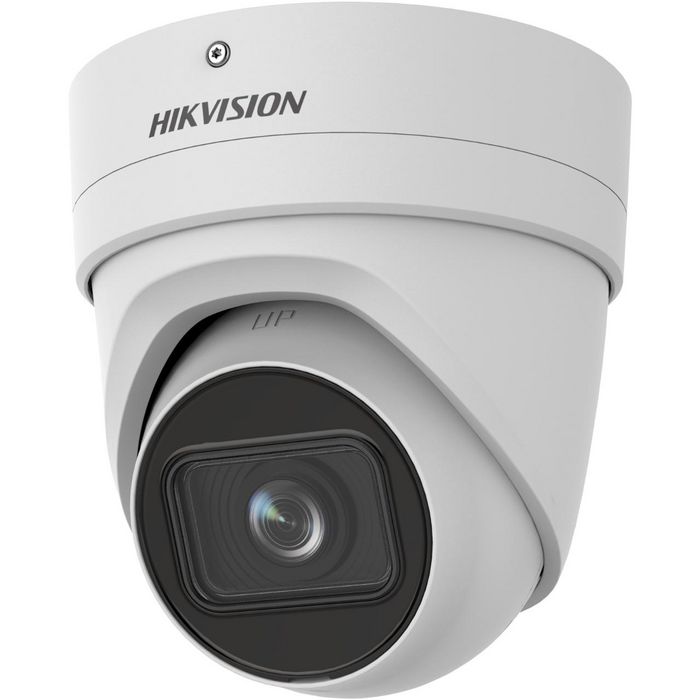

Hikvision 4K Acusense Motorized Varifocal Turret Network Camera
€315,29
Model: DS-2CD2H86G2-IZS(2.8-12MM)(C)
De Hikvision 4K Acusense Gemotoriseerde Varifocale Turret Netwerkcamera biedt ongeëvenaarde beveiligingstechnologie voor zowel particuliere als zakelijke toepassingen. Met zijn 4K Ultra HD-resolutie levert deze camera kristalheldere beelden, terwijl de geavanceerde Acusense-technologie nauwkeurige bewegingsdetectie mogelijk maakt. De motorische varifocale lens zorgt voor flexibiliteit in zoom en focus, ideaal voor veranderende beveiligingsbehoeften. Deze robuuste netwerkcamera is ontworpen om te presteren onder diverse weersomstandigheden, dankzij de IP67-classificatie. Verbeter de veiligheid met de Hikvision 4K Acusense camera, uw ultieme oplossing voor betrouwbare en intelligente bewaking.
Audio |
|
| Audio-ingang kanalen | 1kanalen |
| Audio-uitgang kanalen | 1kanalen |
| Monsterfrequenties | 8 - 48kHz |
| Signaal-ruisverhouding (SNR) | 52dB |
| Spraak-codecs | AAC/G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM |
Camera |
|
| Rotatiehoek | 360° |
| Camera pan bediening | Ja |
| Sluitertijd camera | 1/3 - 1/100000Seconde |
| Camera tilt bediening | Ja |
| Lens kijkhoek, diagonaal | 127.4° |
| Lens kijkhoek, horizontaal | 108° |
| Lens kijkhoek, verticaal | 58° |
| Panbereik | 0 - 355° |
| Tilt hoek bereik | 0 - 75° |
| Kijkhoek, diagonaal | 127,4° |
| Kijkhoek, horizontaal | 108° |
| Kijkhoek, verticaal | 58° |
Design |
|
| IK-code | IK10 |
| International Protection (IP) code | IP66 |
| Bevestigingstype | Plafond/muur |
| Productkleur | Wit |
| Beschermingskenmerken | Stofbestendig/Vandalismebestendig/Waterbestendig |
Beeldsensor |
|
| Aantal sensoren | 1 |
| Optische sensor grootte | 1/1.8" |
| Progressieve scan | Ja |
| Sensortype | CMOS |
Lenssysteem |
|
| Detectieafstand (tele) | 214m |
| Detectieafstand (groothoek) | 86m |
| Brandpuntafstand bereik | 2.8 - 12mm |
| Identificeer afstand (tele) | 21,4m |
| Identificeer afstand (groothoek) | 8,6m |
| Maximum diafragma nummer | 1,4 |
| Aantal lenzen | 1 |
| Observeer afstand (tele) | 84,9m |
| Observeer afstand (groothoek) | 34,1m |
| Herken afstand (tele) | 42,8m |
| Herken afstand (groothoek) | 17,2m |
Beheerfuncties |
|
| Gedragsanalyse | Inbraakalarm/Lijnoverschrijdingsdetectie/Regionale ingangdetectie/Regionale uitgangdetectie |
| Webbrowser | Ja |
Netwerk |
|
| Bluetooth | Nee |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN | Ja |
| Netwerknormen | IEEE 802.3af |
| Aantal gebruikers | 32gebruiker(s) |
| Quality of Service (QoS) ondersteuning | Ja |
| Ondersteunde netwerkprotocollen | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP |
| Wi-Fi | Nee |
Nachtzicht |
|
| Infrarood golflengte | 850nm |
| LED-type | IR |
| Nachtzicht | Ja |
| Nachtzicht afstand | 40m |
Operationele voorwaarden |
|
| Operationele relatieve luchtvochtigheid (H-H) | 0 - 95procent |
| Operationele temperatuur (T-T) | -30 - 60°C |
| Opslag relatieve luchtvochtigheid (H-H) | 0 - 95procent |
| Opslagt температура (T-T) | -30 - 60°C |
Pakketafmetingen |
|
| Diepte (pakket, cm) | 17cm |
| Brutogewicht (pakket, kg) | 1,53kg |
| Hoogte (pakket, cm) | 20,5cm |
| Breedte (pakket, cm) | 17cm |
Packaging inhoud |
|
| Aantal camera's | 1 |
Prestaties |
|
| Alarm in-/uitgang | Ja |
| Connectiviteitstechnologie | Bedraad |
| Dag/nacht modus | Ja |
| Infrarood (IR) filter | Ja |
| Taalondersteuning | Meerdere |
| Aantal talen | 33 |
| Ondersteunde plaatsing | Binnen & buiten |
| Wide Dynamic Range (WDR) | Ja |
Poorten & interfaces |
|
| Ethernet LAN (RJ-45) poorten | 1 |
Stroom |
|
| DC uitgangsstroom | 0,92A |
| DC uitgangsspanning | 12 |
| Stroomverbruik (max) | 11,04Watt |
| Stroomverbruik (Power over Ethernet (PoE)) | 12,5Watt |
| Type stroombron | DC/PoE |
Productafmetingen |
|
| Netto gewicht (Product, kg) | 1,16kg |
| Productdiepte | 14,55cm |
| Producthoogte | 13,58cm |
| Productbreedte | 13,58cm |
Beveiliging |
|
| Actieve sabotagemelding | Ja |
| Waarschuwingsmeldings type | |
| Anti-flikker | Ja |
| Hartslag | Ja |
| HTTPS-encryptie | Ja |
| Intelligent Video Surveillance (IVS) systeem kenmerken | Gezichtsherkenning/Sceneverandering |
| IP-adres filtering | Ja |
| Spiegel | Ja |
| Wachtwoordbeveiliging | Ja |
| Beveiligingsalgoritmen | TLS |
| Videobewegingsdetectie | Ja |
Opslag |
|
| Ingebouwde HDD | Nee |
| Geïntegreerde kaartlezer | Ja |
| Compatibele geheugenkaarten | MicroSD (TransFlash)/MicroSDHC/MicroSDXC |
| Maximale geheugenkaartgrootte | 256GB |
Leveranciersinformatie |
|
| Merknaam | Hikvision |
| Garantie | 3#ProductAttributes.Unit.Year# |
Video |
|
| Achtergrondlichtcompensatie (BLC) | Ja |
| Bitsnelheid | 32 Kbps - 16 Mbps |
| Bitsnelheidsregeling | Constant Bit Rate (CBR)/Variabele Bit Rate (VBR) |
| Framerate | 30fps |
| Versterking regeling type | Auto |
| Highlightcompensatie (HLC) | Ja |
| Afbeeldingskwaliteit aanpassing | Helderheid/Contrast/Saturatie/Schadelijkheid |
| Maximale resolutie | 3840 x 2160Pixels |
| Ruisonderdrukking | Ja |
| Ruisonderdrukking technologie | 3D ruisonderdrukking |
| Privacy-masking | Ja |
| Region of Interest (ROI) codering | Ja |
| Ondersteunde grafische resoluties | 1280 x 720 (HD 720)/1920 x 1080 (HD 1080)/2688 x 1520/3200 x 1800/3840 x 2160/640 x 360/640 x 480 (VGA) |
| Totaal aantal megapixels | 8MP |
| Videocompressieformaten | H.264/H.264+/H.265/H.265+/M-JPEG |
| Videostreaming | Ja |
Gewicht & afmetingen |
|
| Diameter | 13,58cm |
| Lengte | 14,55cm |
Design
| Product colour |
White |
|---|---|
| Protection features |
Dust resistant/Vandal proof/Water resistant |
| IK code |
IK10 |
| Mounting type |
Ceiling/wall |
Lens system
| Focal length range |
2.8 – 12mm |
|---|---|
| Detect distance (tele) |
214m |
| Detect distance (wide) |
86m |
| Identify distance (tele) |
21,4m |
| Identify distance (wide) |
8,6m |
| Maximum aperture number |
1,4 |
| Number of lenses |
1 |
| Observe distance (tele) |
84,9m |
| Observe distance (wide) |
34,1m |
| Recognize distance (tele) |
42,8m |
| Recognize distance (wide) |
17,2m |
Night vision
| Night vision distance |
40m |
|---|---|
| Infra-red wavelength |
850nm |
| LED type |
IR |
| Night vision |
Yes |
Logistics data
| Placement supported |
Indoor & outdoor |
|---|
Vendor information
| Brand Name |
Hikvision |
|---|---|
| Warranty |
3#ProductAttributes.Unit.Year# |
Video
| Total megapixels |
8MP |
|---|---|
| Back Light Compensation (BLC) |
Yes |
| Bit rate |
32 Kbps – 16 Mbps |
| Bit rate control |
Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Frame rate |
30fps |
| Gain control type |
Auto |
| Highlight Compensation (HLC) |
Yes |
| Image quality adjustment |
Brightness/Contrast/Saturation/Sharpness |
| Maximum resolution |
3840 x 2160Pixels |
| Noise reduction |
Yes |
| Noise reduction technology |
3D noise reduction |
| Privacy masking |
Yes |
| Video compression formats |
H.264/H.264+/H.265/H.265+/M-JPEG |
| Video streaming |
Yes |
Audio
| Audio input channels |
1kanalen |
|---|---|
| Audio output channels |
1kanalen |
| Sample rates |
8 – 48kHz |
| Signal-to-Noise Ratio (SNR) |
52dB |
| Voice codecs |
AAC/G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM |
Camera
| Angle of rotation |
360° |
|---|---|
| Camera pan control |
Yes |
| Camera shutter speed |
1/3 – 1/100000Second |
| Camera tilt control |
Yes |
| Lens viewing angle, diagonal |
127.4° |
| Lens viewing angle, vertical |
58° |
| Pan range |
0 – 355° |
| Tilt angle range |
0 – 75° |
| Viewing angle, diagonal |
127,4° |
| Viewing angle, horizontal |
108° |
| Viewing angle, vertical |
58° |
Image sensor
| Number of sensors |
1 |
|---|---|
| Optical sensor size |
1/1.8" |
| Progressive scan |
Yes |
| Sensor type |
CMOS |
Management features
| Behavior analysis |
Intrusion detection/Line crossing detection/Region entrance detection/Region exiting detection |
|---|---|
| Web browser |
Yes |
Network
| Bluetooth |
No |
|---|---|
| Ethernet interface type |
Fast Ethernet |
| Ethernet LAN |
Yes |
| Networking standards |
IEEE 802.3af |
| Number of users |
32gebruiker(s) |
| Supported network protocols |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP |
| Wi-Fi |
No |
Operational conditions
| Operating temperature (T-T) |
-30 – 60°C |
|---|---|
| Storage temperature (T-T) |
-30 – 60°C |
Package dimensions
| Depth (package,cm) |
17cm |
|---|---|
| Gross Weight (Package, kg) |
1,53kg |
| Height (package,cm) |
20,5cm |
| Width (package,cm) |
17cm |
Packaging content
| Number of cameras |
1 |
|---|
Performance
| Alarm input/output |
Yes |
|---|---|
| Connectivity technology |
Wired |
| Day/night mode |
Yes |
| Infrared (IR) cut-off filter |
Yes |
| Languages support |
Multi |
| Number of languages |
33 |
| Wide Dynamic Range (WDR) |
Yes |
Power
| DC output current |
0,92A |
|---|---|
| DC output voltage |
12 |
| Power consumption (max) |
11,04Watt |
| Power source type |
DC/PoE |
Product dimensions
| Net Weight (Product, kg) |
1,16kg |
|---|---|
| Product Depth |
14,55cm |
| Product Height |
13,58cm |
| Product Width |
13,58cm |
Security
| Active tampering alarm |
Yes |
|---|---|
| Alert notification type |
|
| Anti-flicker |
Yes |
| Heartbeat |
Yes |
| HTTPS encryption |
Yes |
| IP address filtering |
Yes |
| Mirror |
Yes |
| Password protection |
Yes |
| Security algorithms |
TLS |
| Video motion detection |
Yes |
Storage
| Built-in HDD |
No |
|---|---|
| Card reader integrated |
Yes |
| Compatible memory cards |
MicroSD (TransFlash)/MicroSDHC/MicroSDXC |
| Maximum memory card size |
256GB |
Weight & dimensions
| Diameter |
13,58cm |
|---|---|
| Length |
14,55cm |
