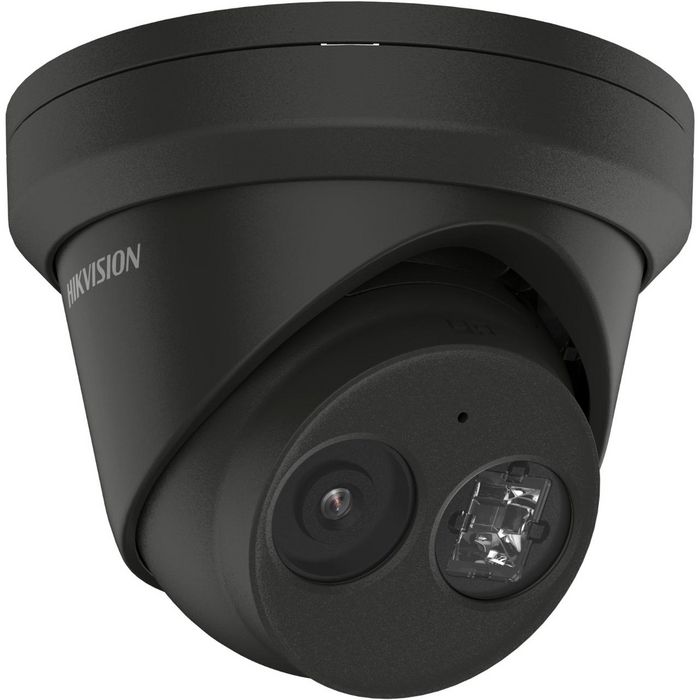

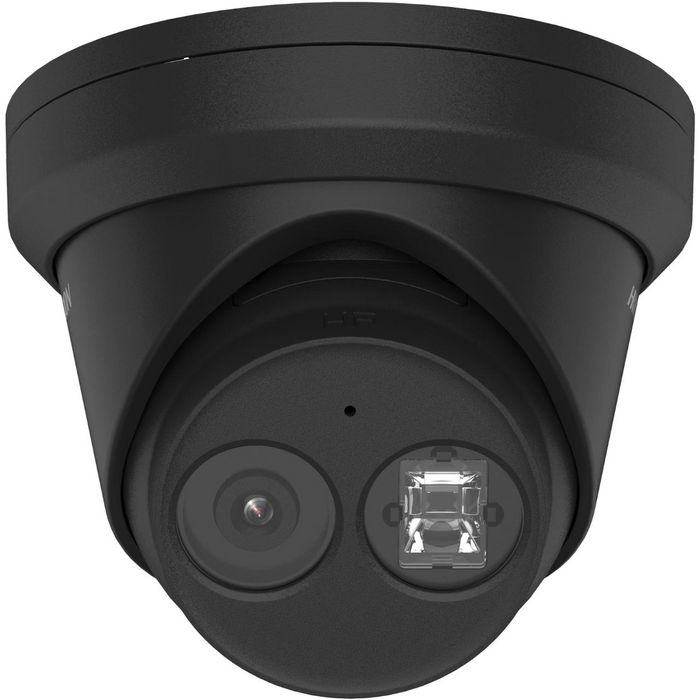

Hikvision 4 MP WDR Fixed Turret Network Camera 2.8mm
€152,18
Model: DS-2CD2343G2-IU(2.8MM)(BLACK)
- Hoge kwaliteit beeldvorming met 4 MP resolutie
- Duidelijke beeldvorming tegen sterke tegenlicht door 120 dB WDR-technologie
- Efficiënte H.265+ compressietechnologie
- Ingebouwde microfoon voor realtime audio-beveiliging
- Water- en stofbestendig (IP67)
- Focus op classificatie van mensen en voertuigen op basis van diepe leren
Ervaar ongeëvenaarde beveiliging met de Hikvision 4 MP WDR Vast Turret Netwerk Camera 2.8mm. Deze hoogwaardige beveiligingscamera biedt een uitzonderlijke beeldkwaliteit met een resolutie van 4 megapixels, ideaal voor het gedetailleerd vastleggen van elke situatie. Dankzij de Wide Dynamic Range (WDR)-technologie worden zelfs bij uitdagende lichtomstandigheden heldere en duidelijke beelden gegarandeerd. Met de vaste 2.8mm lens krijg je een uitstekend breed gezichtsveld, perfect voor het monitoren van grote gebieden. Verhoog de veiligheid van je omgeving met de betrouwbare en geavanceerde technologie van Hikvision. Geschikt voor gebruik binnen zowel particuliere als zakelijke installaties, en eenvoudig te integreren in bestaande netwerksystemen. Kies voor efficiënte en effectieve beveiliging met de Hikvision 4 MP WDR Turret Netwerk Camera.
Audio |
|
| Audioformaten ondersteund | AAC/MP3/PCM |
| Ingebouwde microfoon | Ja |
| Samplingfrequentie | 48kHz |
| Stemcodecs | G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2 |
Camera |
|
| Rotatiehoek | 360° |
| Camera pan controle | Ja |
| Camera sluitertijd | 1/3 - 1/100000Seconde |
| Camera tilt controle | Ja |
| Lens kijkhoek, diagonaal | 122° |
| Lens kijkhoek, horizontaal | 103° |
| Lens kijkhoek, verticaal | 55° |
| Pan bereik | 0 - 360° |
| Tilt hoek bereik | 0 - 90° |
| Kijkhoek, diagonaal | 122° |
| Kijkhoek, horizontaal | 103° |
| Kijkhoek, verticaal | 55° |
Ontwerp |
|
| Behuizing materiaal | Aluminium |
| Internationale Bescherming (IP) code | IP67 |
| Montagetype | Plafond/wand |
| Productkleur | Zwart |
| Beschermingsfuncties | Stofbestendig/Waterbestendig |
Beeldsensor |
|
| Aantal sensoren | 1 |
| Optische sensor grootte | 1/3" |
| Progressieve scan | Ja |
| Sensortype | CMOS |
Lenssysteem |
|
| Vaste brandpuntsafstand | 2,8mm |
| Brandpuntsafstand bereik | 2,8cm |
| Maximale diafragma waarde | 1,6 |
| Aantal lenzen | 1 |
Beheersfuncties |
|
| Gedragsanalyse | Inbraakdetectie/Lijnoversteekdetectie |
| Resetknop | Ja |
| Webbrowser | Ja |
| Webgebaseerd beheer | Ja |
Netwerk |
|
| Bluetooth | Nee |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN | Ja |
| Netwerkstandaarden | IEEE 802.2x/IEEE 802.3af |
| Aantal gebruikers | 32gebruiker(s) |
| Quality of Service (QoS) ondersteuning | Ja |
| Ondersteunde netwerkprotocollen | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE |
| Wi-Fi | Nee |
Nachtzicht |
|
| Infrarood golflengte | 850nm |
| LED-type | IR |
| Nachtzicht | Ja |
| Nachtzicht afstand | 30m |
Operationele voorwaarden |
|
| Opererende relatieve luchtvochtigheid (H-H) | 0 - 95procent |
| Operationele temperatuur (T-T) | -30 - 60°C |
| Opslag relatieve luchtvochtigheid (H-H) | 0 - 95procent |
| Opslag temperatuur (T-T) | -30 - 60°C |
Pakket afmetingen |
|
| Diepte (pakket, cm) | 15cm |
| Bruto Gewicht (Pakket, kg) | 0,89kg |
| Hoogte (pakket, cm) | 14,1cm |
| Breedte (pakket, cm) | 15cm |
Verpakkingsinhoud |
|
| Aantal camera's | 1 |
Prestatie |
|
| Connectiviteit technologie | Bedraad |
| Dag/nacht modus | Ja |
| Infrarood (IR) filter | Ja |
| Taal ondersteuning | Multitaal |
| Aantal talen | 33 |
| Plaatsing ondersteund | Buiten |
| Wide Dynamic Range (WDR) | Ja |
Poorten & interfaces |
|
| Ethernet LAN (RJ-45) poorten | 1 |
Voeding |
|
| DC-uitgangsstroom | 0,5A |
| DC-uitgangsspanning | 12 |
| Vermogen (max) | 6Watt |
| Vermogen (Power over Ethernet (PoE)) | 7Watt |
| Voedingsbron type | DC/PoE |
Productafmetingen |
|
| Netto Gewicht (Product, kg) | 0,6kg |
| Diepte Product | 15cm |
| Hoogte Product | 14,1cm |
| Breedte Product | 15cm |
Beveiliging |
|
| Anti-flikkering | Ja |
| Hartslag | Ja |
| HTTPS-encryptie | Ja |
| Intelligent Video Surveillance (IVS) systeem functies | Gezichtsdetectie |
| IP-adres filtering | Ja |
| Spiegel | Ja |
| Wachtwoordbeveiliging | Ja |
| Videobeweging detectie | Ja |
Opslag |
|
| Ingebouwde HDD | Nee |
| Geïntegreerde kaartlezer | Ja |
| Compatibele geheugenkaarten | MicroSD (TransFlash)/MicroSDHC/MicroSDXC |
| Maximale geheugenkaart grootte | 256GB |
Technische details |
|
| Duurzaamheidscertificaten | REACH/RoHS |
Leverancierinformatie |
|
| Merknaam | Hikvision |
| Garantie | 3#ProductAttributes.Unit.Year# |
Video |
|
| Back Light Compensation (BLC) | Ja |
| Bitsnelheid | 32 Kbps - 8 Mbps |
| Bitsnelheid controle | Constante Bitsnelheid (CBR)/Variabele Bitsnelheid (VBR) |
| Frame rate | 30fps |
| Highlight Compensation (HLC) | Ja |
| Afbeeldingskwaliteit aanpassing | Helderheid/Contrast/Verzadiging/Schärpte |
| Maximale resolutie | 2688 x 1520Pixels |
| Ruisonderdrukking | Ja |
| Privacy maskering | Ja |
| Regio van Belang (ROI) codering | Ja |
| Ondersteunde grafische resoluties | 1280 x 720 (HD 720)/1920 x 1080 (HD 1080)/2688 x 1520/640 x 360/640 x 480 (VGA) |
| Ondersteunde videomodi | 1080p/1520p/360p/480p/720p |
| Totaal aantal megapixels | 4MP |
| Video compressieformaten | H.264/H.264+/H.265/H.265+/M-JPEG |
| Ondersteunde videoformaten | H.264/H.264+/H.265/H.265+/M-JPEG |
| Video streaming | Ja |
Gewicht & afmetingen |
|
| Diameter | 12,73cm |
Design
| Product colour |
Black |
|---|---|
| Protection features |
Dust resistant/Water resistant |
| Housing material |
Aluminium |
| Mounting type |
Ceiling/wall |
Lens system
| Focal length range |
2,8cm |
|---|---|
| Fixed focal length |
2,8mm |
| Maximum aperture number |
1,6 |
| Number of lenses |
1 |
Night vision
| Night vision distance |
30m |
|---|---|
| Infra-red wavelength |
850nm |
| LED type |
IR |
| Night vision |
Yes |
Logistics data
| Placement supported |
Outdoor |
|---|
Vendor information
| Brand Name |
Hikvision |
|---|---|
| Warranty |
3#ProductAttributes.Unit.Year# |
Video
| Total megapixels |
4MP |
|---|---|
| Back Light Compensation (BLC) |
Yes |
| Bit rate |
32 Kbps – 8 Mbps |
| Bit rate control |
Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Frame rate |
30fps |
| Highlight Compensation (HLC) |
Yes |
| Image quality adjustment |
Brightness/Contrast/Saturation/Sharpness |
| Maximum resolution |
2688 x 1520Pixels |
| Noise reduction |
Yes |
| Privacy masking |
Yes |
| Supported video modes |
1080p/1520p/360p/480p/720p |
| Video compression formats |
H.264/H.264+/H.265/H.265+/M-JPEG |
| Video formats supported |
H.264/H.264+/H.265/H.265+/M-JPEG |
| Video streaming |
Yes |
Audio
| Audio formats supported |
AAC/MP3/PCM |
|---|---|
| Sample rate |
48kHz |
| Voice codecs |
G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2 |
Features
| Built-in microphone |
Yes |
|---|
Camera
| Angle of rotation |
360° |
|---|---|
| Camera pan control |
Yes |
| Camera shutter speed |
1/3 – 1/100000Second |
| Camera tilt control |
Yes |
| Lens viewing angle, diagonal |
122° |
| Lens viewing angle, vertical |
55° |
| Pan range |
0 – 360° |
| Tilt angle range |
0 – 90° |
| Viewing angle, diagonal |
122° |
| Viewing angle, horizontal |
103° |
| Viewing angle, vertical |
55° |
Image sensor
| Number of sensors |
1 |
|---|---|
| Optical sensor size |
1/3" |
| Progressive scan |
Yes |
| Sensor type |
CMOS |
Management features
| Behavior analysis |
Intrusion detection/Line crossing detection |
|---|---|
| Reset button |
Yes |
| Web browser |
Yes |
| Web-based management |
Yes |
Network
| Bluetooth |
No |
|---|---|
| Ethernet interface type |
Fast Ethernet |
| Ethernet LAN |
Yes |
| Networking standards |
IEEE 802.2x/IEEE 802.3af |
| Number of users |
32gebruiker(s) |
| Supported network protocols |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE |
| Wi-Fi |
No |
Operational conditions
| Operating temperature (T-T) |
-30 – 60°C |
|---|---|
| Storage temperature (T-T) |
-30 – 60°C |
Package dimensions
| Depth (package,cm) |
15cm |
|---|---|
| Gross Weight (Package, kg) |
0,89kg |
| Height (package,cm) |
14,1cm |
| Width (package,cm) |
15cm |
Packaging content
| Number of cameras |
1 |
|---|
Performance
| Connectivity technology |
Wired |
|---|---|
| Day/night mode |
Yes |
| Infrared (IR) cut-off filter |
Yes |
| Languages support |
Multi |
| Number of languages |
33 |
| Wide Dynamic Range (WDR) |
Yes |
Power
| DC output current |
0,5A |
|---|---|
| DC output voltage |
12 |
| Power consumption (max) |
6Watt |
| Power source type |
DC/PoE |
Product dimensions
| Net Weight (Product, kg) |
0,6kg |
|---|---|
| Product Depth |
15cm |
| Product Height |
14,1cm |
| Product Width |
15cm |
Security
| Anti-flicker |
Yes |
|---|---|
| Heartbeat |
Yes |
| HTTPS encryption |
Yes |
| IP address filtering |
Yes |
| Mirror |
Yes |
| Password protection |
Yes |
| Video motion detection |
Yes |
Storage
| Built-in HDD |
No |
|---|---|
| Card reader integrated |
Yes |
| Compatible memory cards |
MicroSD (TransFlash)/MicroSDHC/MicroSDXC |
| Maximum memory card size |
256GB |
Technical details
| Sustainability certificates |
REACH/RoHS |
|---|
Weight & dimensions
| Diameter |
12,73cm |
|---|
