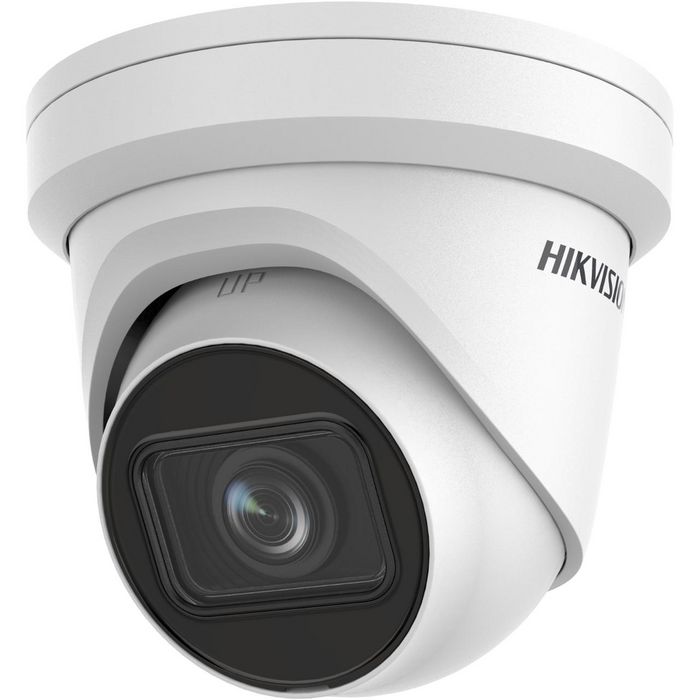

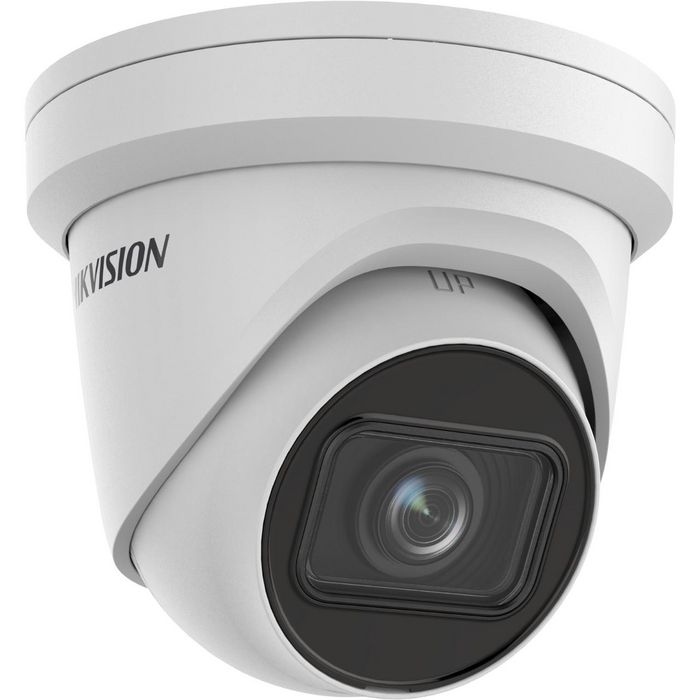

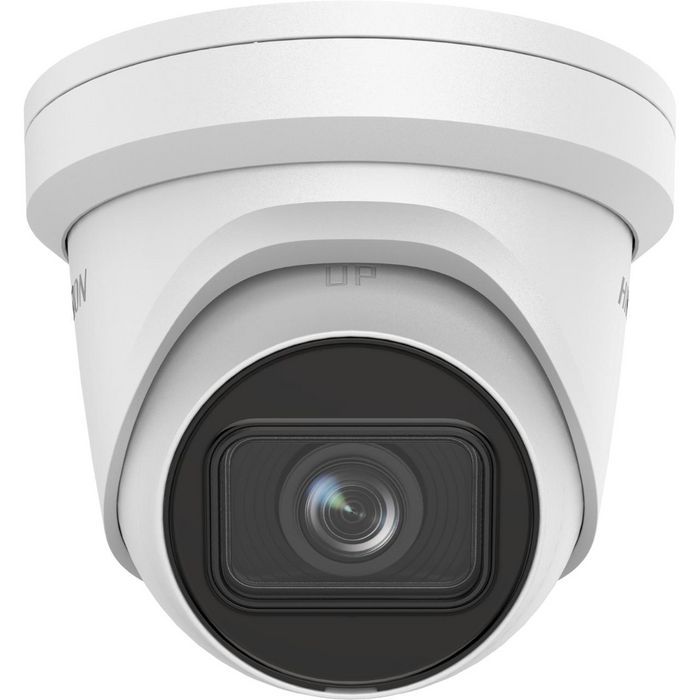

Hikvision 4 MP WDR EXIR Motorized Varifocal Turret Network Camera 2.8-12mm
€185,12
Model: DS-2CD2H43G2-IZS(2.8-12MM)
Ervaar superieure beveiliging met de Hikvision 4 MP WDR EXIR Gemotoriseerde Varifocale Turret Netwerk Camera 2.8-12mm. Deze krachtige camera biedt haarscherpe 4 MP beelden, zelfs onder uitdagende lichtomstandigheden, dankzij de Wide Dynamic Range (WDR) technologie. Met de gemotoriseerde varifocale lens van 2.8-12mm pas je eenvoudig de kijkhoek aan voor een optimaal zicht. De geavanceerde EXIR infraroodtechnologie zorgt voor een uitstekend nachtzicht, waardoor je dag en nacht verzekerd bent van bewaking met hoge resolutie. Perfect voor zowel zakelijke als residentiële toepassingen, biedt deze Hikvision camera betrouwbare beveiliging en veelzijdige installatieopties. Upgrade je veiligheidssysteem met de topkwaliteit van Hikvision!
Audio |
|
| Audioformaten ondersteund | AAC/MP3/PCM |
| Samplefrequentie | 48kHz |
| Spraakcodecs | G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2 |
Camera |
|
| Rotatiehoek | 360° |
| Panregeling camera | Ja |
| Belichtingsnelheid camera | 1/3 - 1/100000Seconde |
| Kantelregeling camera | Ja |
| Lenskijkhoek, diagonaal | 114,6° |
| Lenskijkhoek, horizontaal | 95,8° |
| Lenskijkhoek, verticaal | 50,6° |
| Panbereik | 0 - 360° |
| Kantelhoek bereik | 0 - 90° |
| Kijkhoek, diagonaal | 114,6° |
| Kijkhoek, horizontaal | 95,8° |
| Kijkhoek, verticaal | 50,6° |
Ontwerp |
|
| Behuizingsmateriaal | Aluminium |
| IK-code | IK10 |
| Internationale Beschermingscode (IP) | IP67 |
| Montage type | Plafond/wand |
| Productkleur | Wit |
| Beschermingsfuncties | Stofbestendig/Vandalismebestendig/Waterbestendig |
Afbeeldingssensor |
|
| Aantal sensoren | 1 |
| Optische sensor grootte | 1/3" |
| Progressieve scan | Ja |
| Sensortype | CMOS |
Lenssysteem |
|
| Brandpuntsafstand bereik | 2.8-12mm |
| Maximale diafragma | 1,6 |
| Aantal lenzen | 1 |
Logistieke gegevens |
|
| Geharmoniseerd Systeem (HS) code | 85258900 |
Beheerfuncties |
|
| Gedragsanalyse | Inbraakdetectie/Lijnoverschrijdingsdetectie |
| Resetknop | Ja |
| Webbrowser | Ja |
| Webgebaseerd beheer | Ja |
Netwerk |
|
| Bluetooth | Nee |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN | Ja |
| Netwerkstandaarden | IEEE 802.1x/IEEE 802.3af |
| Aantal gebruikers | 32gebruiker(s) |
| Quality of Service (QoS) ondersteuning | Ja |
| Ondersteunde netwerkprotocollen | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE |
| Wi-Fi | Nee |
Nachtzicht |
|
| Infrarood golflengte | 850nm |
| LED-type | IR |
| Nachtzicht | Ja |
| Nachtzicht afstand | 40m |
Operationele omstandigheden |
|
| Bedrijfsvochtigheid (H-H) | 0 - 95procent |
| Bedrijfstemperatuur (T-T) | -30 - 60°C |
| Opslagvochtigheid (H-H) | 0 - 95procent |
| Opslag temperatuur (T-T) | -30 - 60°C |
Pakketafmetingen |
|
| Diepte (pakket, cm) | 17cm |
| Bruto gewicht (pakket, kg) | 1,14kg |
| Hoogte (pakket, cm) | 15cm |
| Breedte (pakket, cm) | 17cm |
Verpakkingsinhoud |
|
| Aantal camera's | 1 |
Prestaties |
|
| Connectiviteitstechnologie | Bedraad |
| Dag/nacht modus | Ja |
| Infrarood (IR) filter | Ja |
| Aantal talen | 33 |
| Ondersteunde plaatsing | Buiten |
| Wide Dynamic Range (WDR) | Ja |
Poorten & interfaces |
|
| Ethernet LAN (RJ-45) poorten | 1 |
Stroom |
|
| DC output stroom | 0,92A |
| DC output spanning | 12 |
| Energieverbruik (max) | 11Watt |
| Energieverbruik (Power over Ethernet (PoE)) | 12,5Watt |
| Soort stroombron | DC/PoE |
Productafmetingen |
|
| Netto gewicht (Product, kg) | 0,83kg |
| Diepte product | 15cm |
| Hoogte product | 17cm |
| Breedte product | 17cm |
Beveiliging |
|
| Anti-flikkering | Ja |
| Heartbeat | Ja |
| HTTPS encryptie | Ja |
| Slimme Video Bewaking (IVS) systeem functies | Gezichtsdetectie |
| IP-adres filtering | Ja |
| Spiegel | Ja |
| Wachtwoordbeveiliging | Ja |
| Videobewegingdetectie | Ja |
Opslag |
|
| Ingebouwde HDD | Nee |
| Geïntegreerde kaartlezer | Ja |
| Compatibele geheugenkaarten | MicroSD (TransFlash)/MicroSDHC/MicroSDXC |
| Maximale geheugenkaartgrootte | 256GB |
Technische details |
|
| Duurzaamheidscertificaten | REACH/RoHS |
Leveranciersinformatie |
|
| Merknaam | Hikvision |
| Garantie | 3#ProductAttributes.Unit.Year# |
Video |
|
| Achtergrond Licht Compensatie (BLC) | Ja |
| Bitrate | 32 Kbps - 8 Mbps |
| Bitrate controle | Constante Bit Rate (CBR)/Variabele Bit Rate (VBR) |
| Frame rate | 30fps |
| Highlight Compensatie (HLC) | Ja |
| Afbeeldingskwaliteit aanpassing | Helderheid/Contrast/Verzadiging/Schärpe |
| Maximale resolutie | 2688 x 1520Pixels |
| Ruisonderdrukking | Ja |
| Ruisonderdrukking technologie | 3D ruisonderdrukking |
| Privacy masking | Ja |
| Regio van Interesse (ROI) codering | Ja |
| Ondersteunde grafische resoluties | 1280 x 720 (HD 720)/1920 x 1080 (HD 1080)/2688 x 1520/640 x 360/640 x 480 (VGA) |
| Totaal aantal megapixels | 4MP |
| Video compressieformaten | H.264/H.264+/H.265/H.265+/M-JPEG |
| Videostreaming | Ja |
Gewicht & afmetingen |
|
| Diameter | 13,83cm |
Design
| Product colour |
White |
|---|---|
| Protection features |
Dust resistant/Vandal proof/Water resistant |
| Housing material |
Aluminium |
| IK code |
IK10 |
| Mounting type |
Ceiling/wall |
Lens system
| Focal length range |
2.8-12mm |
|---|---|
| Maximum aperture number |
1,6 |
| Number of lenses |
1 |
Night vision
| Night vision distance |
40m |
|---|---|
| Infra-red wavelength |
850nm |
| LED type |
IR |
| Night vision |
Yes |
Logistics data
| Placement supported |
Outdoor |
|---|---|
| Harmonized System (HS) code |
85258900 |
Vendor information
| Brand Name |
Hikvision |
|---|---|
| Warranty |
3#ProductAttributes.Unit.Year# |
Video
| Total megapixels |
4MP |
|---|---|
| Back Light Compensation (BLC) |
Yes |
| Bit rate |
32 Kbps – 8 Mbps |
| Bit rate control |
Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Frame rate |
30fps |
| Highlight Compensation (HLC) |
Yes |
| Image quality adjustment |
Brightness/Contrast/Saturation/Sharpness |
| Maximum resolution |
2688 x 1520Pixels |
| Noise reduction |
Yes |
| Noise reduction technology |
3D noise reduction |
| Privacy masking |
Yes |
| Video compression formats |
H.264/H.264+/H.265/H.265+/M-JPEG |
| Video streaming |
Yes |
Audio
| Audio formats supported |
AAC/MP3/PCM |
|---|---|
| Sample rate |
48kHz |
| Voice codecs |
G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2 |
Camera
| Angle of rotation |
360° |
|---|---|
| Camera pan control |
Yes |
| Camera shutter speed |
1/3 – 1/100000Second |
| Camera tilt control |
Yes |
| Lens viewing angle, diagonal |
114.6° |
| Lens viewing angle, vertical |
50.6° |
| Pan range |
0 – 360° |
| Tilt angle range |
0 – 90° |
| Viewing angle, diagonal |
114,6° |
| Viewing angle, horizontal |
95,8° |
| Viewing angle, vertical |
50,6° |
Image sensor
| Number of sensors |
1 |
|---|---|
| Optical sensor size |
1/3" |
| Progressive scan |
Yes |
| Sensor type |
CMOS |
Management features
| Behavior analysis |
Intrusion detection/Line crossing detection |
|---|---|
| Reset button |
Yes |
| Web browser |
Yes |
| Web-based management |
Yes |
Network
| Bluetooth |
No |
|---|---|
| Ethernet interface type |
Fast Ethernet |
| Ethernet LAN |
Yes |
| Networking standards |
IEEE 802.1x/IEEE 802.3af |
| Number of users |
32gebruiker(s) |
| Supported network protocols |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE |
| Wi-Fi |
No |
Operational conditions
| Operating temperature (T-T) |
-30 – 60°C |
|---|---|
| Storage temperature (T-T) |
-30 – 60°C |
Package dimensions
| Depth (package,cm) |
17cm |
|---|---|
| Gross Weight (Package, kg) |
1,14kg |
| Height (package,cm) |
15cm |
| Width (package,cm) |
17cm |
Packaging content
| Number of cameras |
1 |
|---|
Performance
| Connectivity technology |
Wired |
|---|---|
| Day/night mode |
Yes |
| Infrared (IR) cut-off filter |
Yes |
| Number of languages |
33 |
| Wide Dynamic Range (WDR) |
Yes |
Power
| DC output current |
0,92A |
|---|---|
| DC output voltage |
12 |
| Power consumption (max) |
11Watt |
| Power source type |
DC/PoE |
Product dimensions
| Net Weight (Product, kg) |
0,83kg |
|---|---|
| Product Depth |
15cm |
| Product Height |
17cm |
| Product Width |
17cm |
Security
| Anti-flicker |
Yes |
|---|---|
| Heartbeat |
Yes |
| HTTPS encryption |
Yes |
| IP address filtering |
Yes |
| Mirror |
Yes |
| Password protection |
Yes |
| Video motion detection |
Yes |
Storage
| Built-in HDD |
No |
|---|---|
| Card reader integrated |
Yes |
| Compatible memory cards |
MicroSD (TransFlash)/MicroSDHC/MicroSDXC |
| Maximum memory card size |
256GB |
Technical details
| Sustainability certificates |
REACH/RoHS |
|---|
Weight & dimensions
| Diameter |
13,83cm |
|---|
