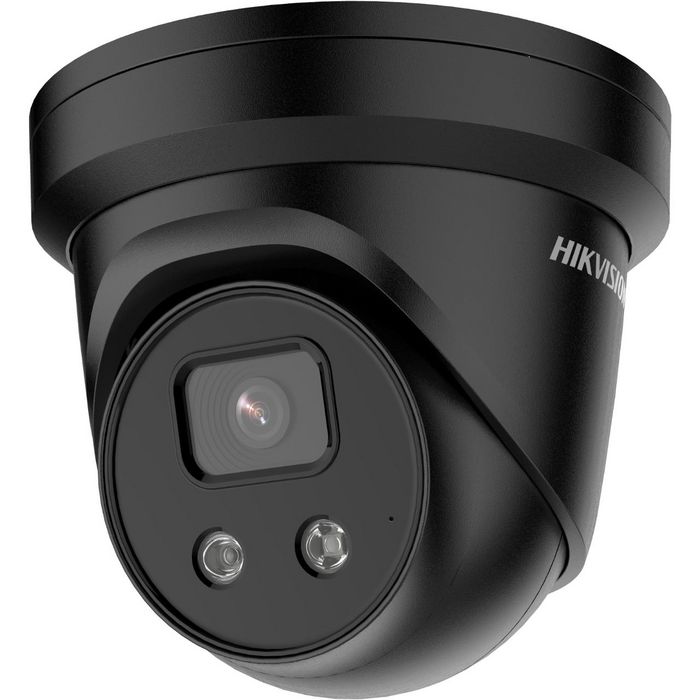

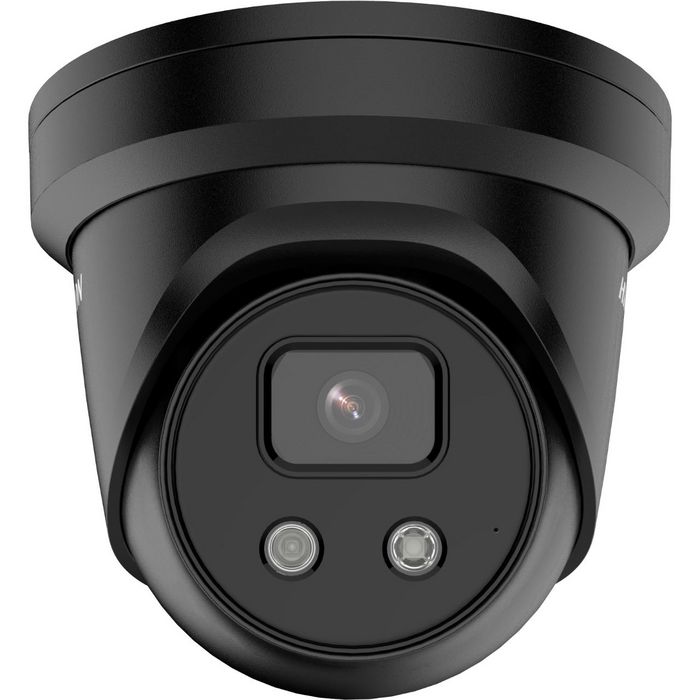

Hikvision 4 MP AcuSense Fixed Turret Network Camera
€168,65
Model: DS-2CD2346G2-IU(2.8MM)(C)(BLACK)
Ontdek superieure beveiliging met de Hikvision 4 MP AcuSense Fixed Turret Network Camera. Deze geavanceerde netwerkcamera biedt haarscherpe 4 MP beelden, ideaal voor zowel zakelijke als particuliere toepassingen. Met de innovatieve AcuSense-technologie minimaliseer je valse alarmen en verhoog je de efficiëntie van je beveiligingssysteem. De vaste turretbehuizing zorgt voor een breed gezichtsveld en eenvoudige installatie, terwijl de robuuste constructie bestand is tegen diverse weersomstandigheden. Verhoog de veiligheid van je eigendommen met deze betrouwbare en kosteneffectieve beveiligingsoplossing van Hikvision. Perfect voor uw professionele beveiligingsbehoeften in Nederland.
Audio |
|
| Ingebouwd microfoon | Ja |
| Monsterfrequenties | 8 - 48kHz |
| Signaal-ruisverhouding (SNR) | 52dB |
| Stemcodecs | AAC/G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM |
Camera |
|
| Rotatiehoek | 360° |
| Camera pan bediening | Ja |
| Camera sluitertijd | 1/3 - 1/100000Seconde |
| Camera kanteling bediening | Ja |
| Lens kijkhoek, diagonaal | 123° |
| Lens kijkhoek, horizontaal | 103° |
| Lens kijkhoek, verticaal | 55° |
| Pan bereik | 0 - 360° |
| Kantel hoek bereik | 0 - 75° |
Ontwerp |
|
| Internationale bescherming (IP) code | IP67 |
| Montage type | Plafond/wand |
| Productkleur | Zwart |
| Beschermingsfuncties | Stofbestendig/Waterbestendig |
Beeldsensor |
|
| Aantal sensoren | 1 |
| Optische sensor grootte | 1/3" |
| Progressieve scan | Ja |
| Sensortype | CMOS |
Lenssysteem |
|
| Detectieafstand (breed) | 60m |
| Vaste brandpuntsafstand | 2,8mm |
| Brandpuntsafstand bereik | 2,8cm |
| Identificatieafstand (breed) | 6m |
| Maximale diafragma-getal | 1,4 |
| Aantal lenzen | 1 |
| Observelafstand (breed) | 23,8m |
| Herkenningsafstand (breed) | 12m |
Beheerfuncties |
|
| Gedragsanalyse | Inbraakdetectie/Lijnoverschrijdingsdetectie/Region toegang detectie/Region verlaten detectie |
| Resetknop | Ja |
| Webbrowser | Ja |
Netwerk |
|
| Bluetooth | Nee |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN | Ja |
| Netwerkstandaarden | IEEE 802.3af |
| Aantal gebruikers | 32gebruiker(s) |
| Kwaliteit van Dienst (QoS) ondersteuning | Ja |
| Ondersteunde netwerkprotocollen | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP |
| Wi-Fi | Nee |
Nachtzicht |
|
| Infrarood golflengte | 850nm |
| LED type | IR |
| Nachtzicht | Ja |
| Nachtzicht afstand | 30m |
Operationele omstandigheden |
|
| Operationele relatieve luchtvochtigheid (H-H) | 0 - 95procent |
| Operationele temperatuur (T-T) | -30 - 60°C |
| Opslagtemperatuur (T-T) | -30 - 60°C |
Pakketafmetingen |
|
| Diepte (pakket,cm) | 17cm |
| Bruto gewicht (pakket, kg) | 1,06kg |
| Hoogte (pakket,cm) | 16cm |
| Breedte (pakket,cm) | 17cm |
Verpakkingsinhoud |
|
| Aantal camera's | 1 |
Prestaties |
|
| Connectiviteitstechnologie | Bedraad |
| Dag/nacht modus | Ja |
| Infrarood (IR) afsluitfilter | Ja |
| Talenondersteuning | Meerdere |
| Aantal talen | 33 |
| Plaatsing ondersteund | Binnen & buiten |
| Wijd dynamisch bereik (WDR) | Ja |
Poorten & interfaces |
|
| Ethernet LAN (RJ-45) poorten | 1 |
Voeding |
|
| DC uitgangsstroom | 0,48A |
| DC uitgangsspanning | 12 |
| Vermogen verbruik (max) | 5,8Watt |
| Vermogen verbruik (Power over Ethernet (PoE)) | 6,8Watt |
| Voedingsbron type | DC/PoE |
Productafmetingen |
|
| Netto gewicht (Product, kg) | 0,53kg |
| Diepte product | 17cm |
| Hoogte product | 15cm |
| Breedte product | 17cm |
Beveiliging |
|
| Actief sabotagealarm | Ja |
| Waarschuwingsmeldingstype | |
| Anti-flikker | Ja |
| Hartslag | Ja |
| Intelligent Video Surveillance (IVS) systeemfuncties | Gezichtsdetectie/Scèneverandering |
| IP-adresfiltering | Ja |
| Spiegel | Ja |
| Wachtwoordbeveiliging | Ja |
| Beveiligingsalgoritmen | TLS |
| Videobewegingsdetectie | Ja |
Opslag |
|
| Ingebouwde HDD | Nee |
| Geïntegreerde kaartlezer | Ja |
| Compatibele geheugenkaarten | MicroSD (TransFlash)/MicroSDHC/MicroSDXC |
| Maximale geheugenkaartgrootte | 256GB |
Leverancierinformatie |
|
| Merknaam | Hikvision |
| Garantie | 3#ProductAttributes.Unit.Year# |
Video |
|
| Achtergrondverlichting compensatie (BLC) | Ja |
| Bitsnelheid | 32 Kbps - 8 Mbps |
| Bitsnelheid controle | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Frame snelheid | 30fps |
| Gain controle type | Auto |
| Highlight compensatie (HLC) | Ja |
| Beeldkwaliteit aanpassing | Helderheid/Contrast/Saturatie/Schärpte |
| Maximale resolutie | 2688 x 1520Pixels |
| Ruisonderdrukking | Ja |
| Ruisonderdrukkingstechnologie | 3D ruisonderdrukking |
| Privacy masking | Ja |
| Region van Interesse (ROI) codering | Ja |
| Ondersteunde grafische resoluties | 1280 x 720 (HD 720)/1920 x 1080 (HD 1080)/2688 x 1520/640 x 360/640 x 480 (VGA) |
| Totaal aantal megapixels | 4MP |
| Video compressieformaten | H.264/H.264+/H.265/H.265+/M-JPEG |
| Video streaming | Ja |
Gewicht & afmetingen |
|
| Diameter | 13,83cm |
| Lengte | 12,63cm |
Design
| Product colour |
Black |
|---|---|
| Protection features |
Dust resistant/Water resistant |
| Mounting type |
Ceiling/wall |
Lens system
| Focal length range |
2,8cm |
|---|---|
| Detect distance (wide) |
60m |
| Fixed focal length |
2,8mm |
| Identify distance (wide) |
6m |
| Maximum aperture number |
1,4 |
| Number of lenses |
1 |
| Observe distance (wide) |
23,8m |
| Recognize distance (wide) |
12m |
Night vision
| Night vision distance |
30m |
|---|---|
| Infra-red wavelength |
850nm |
| LED type |
IR |
| Night vision |
Yes |
Logistics data
| Placement supported |
Indoor & outdoor |
|---|
Vendor information
| Brand Name |
Hikvision |
|---|---|
| Warranty |
3#ProductAttributes.Unit.Year# |
Video
| Total megapixels |
4MP |
|---|---|
| Back Light Compensation (BLC) |
Yes |
| Bit rate |
32 Kbps – 8 Mbps |
| Bit rate control |
Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Frame rate |
30fps |
| Gain control type |
Auto |
| Highlight Compensation (HLC) |
Yes |
| Image quality adjustment |
Brightness/Contrast/Saturation/Sharpness |
| Maximum resolution |
2688 x 1520Pixels |
| Noise reduction |
Yes |
| Noise reduction technology |
3D noise reduction |
| Privacy masking |
Yes |
| Video compression formats |
H.264/H.264+/H.265/H.265+/M-JPEG |
| Video streaming |
Yes |
Features
| Built-in microphone |
Yes |
|---|
Audio
| Sample rates |
8 – 48kHz |
|---|---|
| Signal-to-Noise Ratio (SNR) |
52dB |
| Voice codecs |
AAC/G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM |
Camera
| Angle of rotation |
360° |
|---|---|
| Camera pan control |
Yes |
| Camera shutter speed |
1/3 – 1/100000Second |
| Camera tilt control |
Yes |
| Lens viewing angle, diagonal |
123° |
| Lens viewing angle, vertical |
55° |
| Pan range |
0 – 360° |
| Tilt angle range |
0 – 75° |
Image sensor
| Number of sensors |
1 |
|---|---|
| Optical sensor size |
1/3" |
| Progressive scan |
Yes |
| Sensor type |
CMOS |
Management features
| Behavior analysis |
Intrusion detection/Line crossing detection/Region entrance detection/Region exiting detection |
|---|---|
| Reset button |
Yes |
| Web browser |
Yes |
Network
| Bluetooth |
No |
|---|---|
| Ethernet interface type |
Fast Ethernet |
| Ethernet LAN |
Yes |
| Networking standards |
IEEE 802.3af |
| Number of users |
32gebruiker(s) |
| Supported network protocols |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP |
| Wi-Fi |
No |
Operational conditions
| Operating temperature (T-T) |
-30 – 60°C |
|---|---|
| Storage temperature (T-T) |
-30 – 60°C |
Package dimensions
| Depth (package,cm) |
17cm |
|---|---|
| Gross Weight (Package, kg) |
1,06kg |
| Height (package,cm) |
16cm |
| Width (package,cm) |
17cm |
Packaging content
| Number of cameras |
1 |
|---|
Performance
| Connectivity technology |
Wired |
|---|---|
| Day/night mode |
Yes |
| Infrared (IR) cut-off filter |
Yes |
| Languages support |
Multi |
| Number of languages |
33 |
| Wide Dynamic Range (WDR) |
Yes |
Power
| DC output current |
0,48A |
|---|---|
| DC output voltage |
12 |
| Power consumption (max) |
5,8Watt |
| Power source type |
DC/PoE |
Product dimensions
| Net Weight (Product, kg) |
0,53kg |
|---|---|
| Product Depth |
17cm |
| Product Height |
15cm |
| Product Width |
17cm |
Security
| Active tampering alarm |
Yes |
|---|---|
| Alert notification type |
|
| Anti-flicker |
Yes |
| Heartbeat |
Yes |
| IP address filtering |
Yes |
| Mirror |
Yes |
| Password protection |
Yes |
| Security algorithms |
TLS |
| Video motion detection |
Yes |
Storage
| Built-in HDD |
No |
|---|---|
| Card reader integrated |
Yes |
| Compatible memory cards |
MicroSD (TransFlash)/MicroSDHC/MicroSDXC |
| Maximum memory card size |
256GB |
Weight & dimensions
| Diameter |
13,83cm |
|---|---|
| Length |
12,63cm |
