Axis Q3626-VE
€2,228,93
Model: 02616-001
- Uitstekende beeldkwaliteit in 4 MP
- Afstandsaanpassing van de camerahoek
- Analytics met deep learning
- Elektronische beeldstabilisatie
- Axis Edge Vault

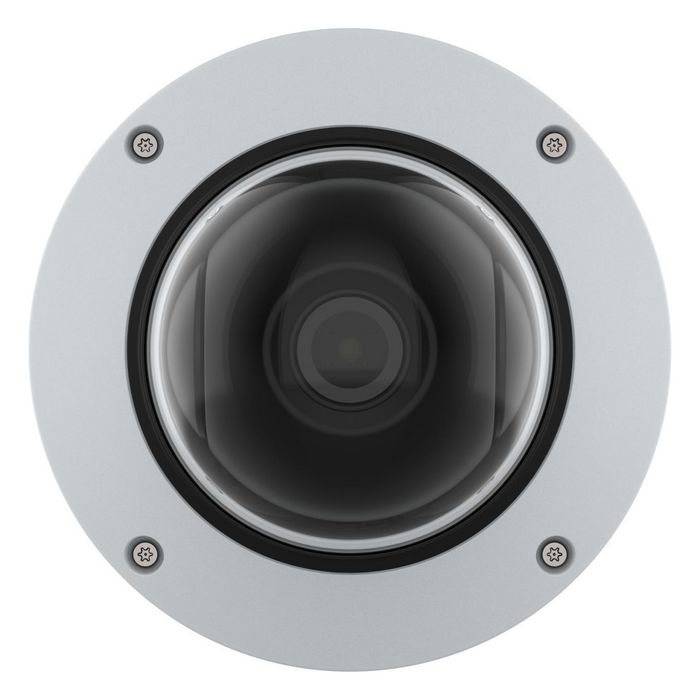

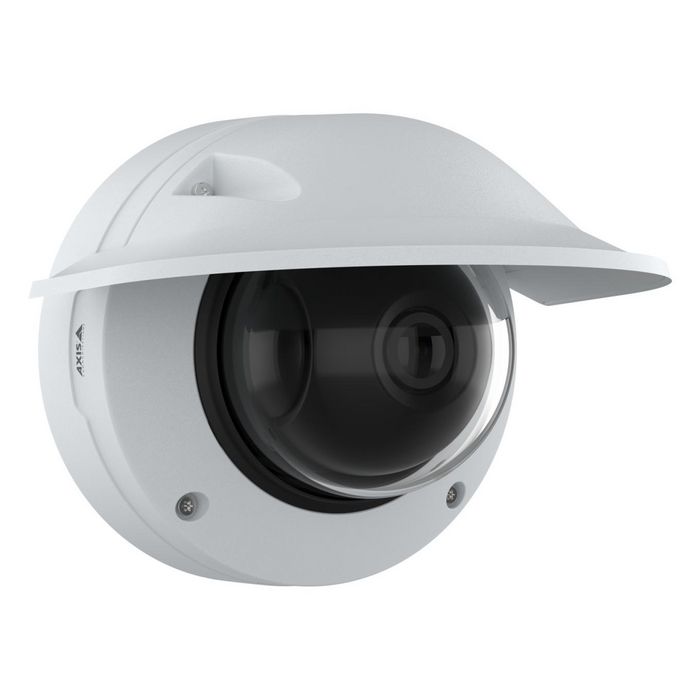

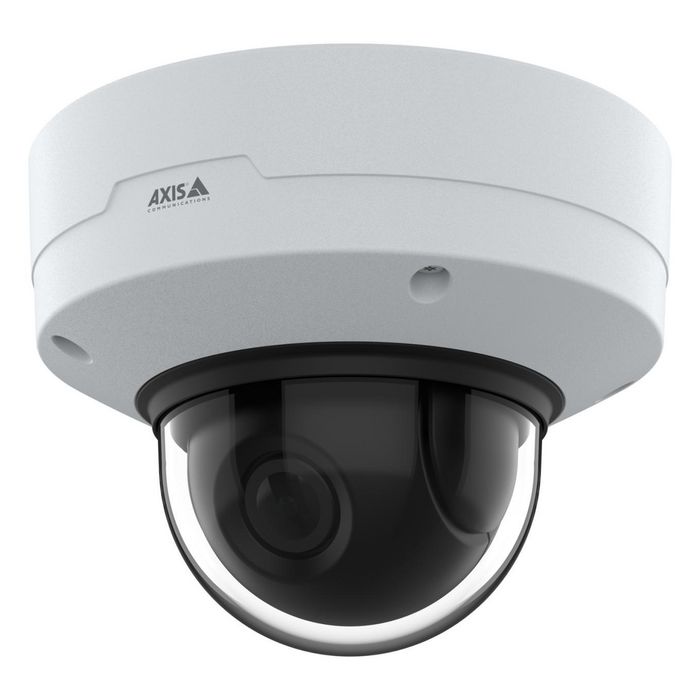

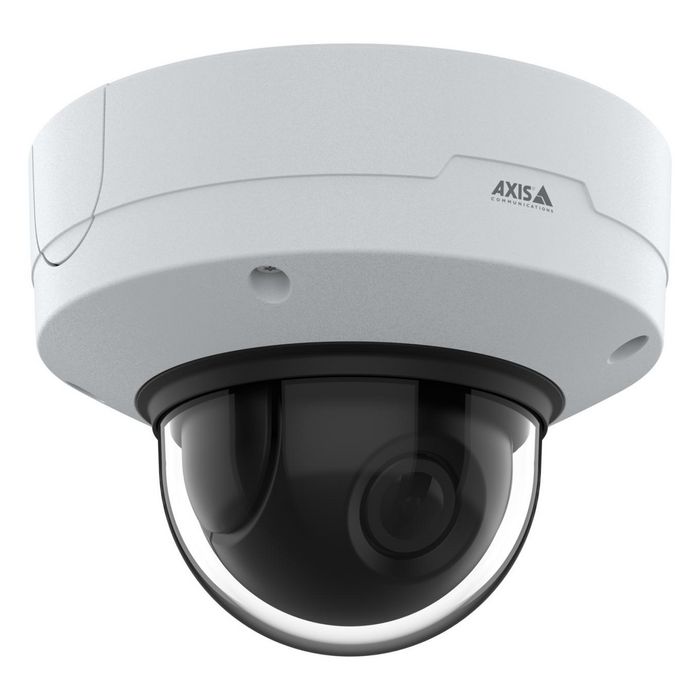

De Axis Q3626-VE is een geavanceerde bewakingscamera die hoogwaardige beveiliging biedt voor diverse buitenomgevingen. Deze domecamera heeft een resolutie van 4K en is uitgerust met functies zoals forensische WDR en Lightfinder-technologie, waardoor hij uitstekend presteert bij slechte lichtomstandigheden. Met een robuuste behuizing die bestand is tegen vandalisme en extreme weersomstandigheden, garandeert de Q3626-VE betrouwbare prestaties en duurzaamheid. Deze camera is ideaal voor gebruik in stedelijke gebieden, op bedrijfsterreinen en bij transporthubs, en biedt geavanceerde analyses en innovatieve functies voor ongeëvenaarde bewaking. Kies voor de Axis Q3626-VE voor een toekomstgerichte beveiligingsoplossing die je gemoedsrust biedt.
Audio |
|
| Audio-detectie | Ja |
| Ondersteunde audioformaten | AAC-LC/ADPCM/G.711/G.726/LPCM/OPUS/PCM |
| Audiosysteem | 2-weg |
| Audiosysteem full duplex | Ja |
| Monstertijd | 48kHz |
| Spraakcodecs | AGC |
Batterij |
|
| Batterijtype | UN3091 - Lithium METAAL binnen apparatuur |
| Lithium gewicht (g) | 0,064g |
Camera |
|
| Camera sluitertijd | 1/91000 - 1 secondeSeconde |
| Lens kijkhoek, horizontaal | 103 - 52° |
| Lens kijkhoek, verticaal | 56,2 - 29,6° |
| Minimale belichting | 0,06Lux |
| Panbereik | 0 - 190° |
| Kantelbereik | -8 - 75° |
Ontwerp |
|
| Vormfactor | Dome |
| Behuismateriaal | Aluminium/Polycarbonaat (PC) |
| IK-code | IK10 |
| Internationale bescherming (IP) code | IP66 |
| Montagetype | Muur |
| Productkleur | Wit |
Beeldsensor |
|
| Aantal sensoren | 1 |
| Optische sensorsgrootte | 1/1.8" |
| Progressief scannen | Ja |
| Sensortype | CMOS |
Lenssysteem |
|
| Brandpuntsafstand bereik | 2,8cm |
| Maximale diafragmagrootte | 2,4 |
| Minimale diafragmagrootte | 1,5 |
Netwerk |
|
| Bluetooth | Nee |
| Ethernet LAN | Ja |
| Netwerkstandaarden | IEEE 802.1x/IEEE 802.3at |
| Kwaliteit van service (QoS) ondersteuning | Ja |
| Wi-Fi | Nee |
Nachtzicht |
|
| Nachtzicht | Ja |
Operationele voorwaarden |
|
| Operationele relatieve luchtvochtigheid (H-H) | 10 - 100procent |
| Operationele temperatuur (T-T) | -50 - 55°C |
| Opslag relatieve luchtvochtigheid (H-H) | 5 - 95procent |
| Opslagtemperatuur (T-T) | -40 - 65°C |
Pakketafmetingen |
|
| Diepte (pakket, cm) | 26,5cm |
| Brutogewicht (pakket, kg) | 3,2kg |
| Hoogte (pakket, cm) | 19cm |
| Breedte (pakket, cm) | 22cm |
Verpakkingsinhoud |
|
| Handleiding | Ja |
| Montagebeugels inbegrepen | Ja |
| Aantal camera's | 1 |
Prestaties |
|
| Connectiviteit technologie | Bedraad |
| Dag/nachtmodus | Ja |
| Infrarood (IR) filter | Ja |
| Talen ondersteuning | Tsjechisch/Nederlands/Engels/Fins/Frans/Duits/Italiaans/Japans/Pools/Portugees/Russisch/Gemakkelijke Chinese/ Spaans/Zweeds/Thais/Traditionele Chinese/Turks/Vietnamees |
| Aantal talen | 18 |
| Plaatsing ondersteund | Buiten |
| Processor model | ARTPEC-8 |
| PTZ-besturing | Ja |
| PTZ-modi | Digitale PTZ |
| Type | IP-beveiligingscamera |
| Wijd Dynamisch Bereik (WDR) | Ja |
Poorten en interfaces |
|
| DC-in aansluiting | Ja |
| Ethernet LAN (RJ-45) poorten | 1 |
| Microfoon ingang | Ja |
Voeding |
|
| DC-uitgangsspanning | 10/28 |
| Energieverbruik (max) | 25Watt |
| Energieverbruik (typisch) | 7Watt |
| Type voedingsbron | DC/PoE |
Productafmetingen |
|
| Netto gewicht (product, kg) | 3kg |
| Productdiepte | 26,5cm |
| Producthoogte | 19cm |
| Productbreedte | 22cm |
Beveiliging |
|
| Alert notificatietype | |
| HTTPS-encryptie | Ja |
| IP-adres filtering | Ja |
| Wachtwoordbeveiliging | Ja |
| Videobewegingsdetectie | Ja |
Opslag |
|
| Ingebouwde HDD | Nee |
| Geïntegreerde kaartlezer | Ja |
| Compatibele geheugenkaarten | MicroSD (TransFlash)/MicroSDHC/MicroSDXC |
| Flash-geheugen | 8192MB |
| Intern geheugen | 2048MB |
Technische details |
|
| Bevat geen | BFR/PVC |
| Garantieperiode | 5jaar |
Verkopersinformatie |
|
| Merknaam | Axis |
| Garantie | 5#ProductAttributes.Unit.Year# |
Video |
|
| Frame rate | 60fps |
| Afbeeldingskwaliteit aanpassing | Helderheid/Contrast/Verzadiging/Schärpte |
| Afbeeldings stabilisator | Ja |
| Maximale resolutie | 2688 x 1512Pixels |
| Privacymaskering | Ja |
| Ondersteunde grafische resoluties | 1280 x 800/160 x 120/160 x 90/2688 x 1512 |
| Tekstoverlay | Ja |
| Totaal aantal megapixels | 5MP |
| Videocompressieformaten | H.264/H.265/M-JPEG |
| Videostreaming | Ja |
Gewicht en afmetingen |
|
| Diameter | 18,4cm |
Design
| Product colour |
White |
|---|---|
| Form factor |
Dome |
| Housing material |
Aluminium/Polycarbonate (PC) |
| IK code |
IK10 |
| Mounting type |
Wall |
Lens system
| Focal length range |
2,8cm |
|---|---|
| Maximum aperture number |
2,4 |
| Minimum aperture number |
1,5 |
Logistics data
| Placement supported |
Outdoor |
|---|
Vendor information
| Brand Name |
Axis |
|---|---|
| Warranty |
5#ProductAttributes.Unit.Year# |
Video
| Total megapixels |
5MP |
|---|---|
| Frame rate |
60fps |
| Image quality adjustment |
Brightness/Contrast/Saturation/Sharpness |
| Image stabilizer |
Yes |
| Maximum resolution |
2688 x 1512Pixels |
| Privacy masking |
Yes |
| Text caption overlay |
Yes |
| Video compression formats |
H.264/H.265/M-JPEG |
| Video streaming |
Yes |
Audio
| Audio detection |
Yes |
|---|---|
| Audio formats supported |
AAC-LC/ADPCM/G.711/G.726/LPCM/OPUS/PCM |
| Audio system |
2-way |
| Audio system full duplex |
Yes |
| Sample rate |
48kHz |
| Voice codecs |
AGC |
Battery
| Battery Type |
UN3091 – Lithium METAL inside equiment |
|---|---|
| Lithium Weight (g) |
0,064g |
Camera
| Camera shutter speed |
1/91000 – 1 SecondSecond |
|---|---|
| Lens viewing angle, vertical |
56.2 – 29.6° |
| Minimum illumination |
0,06Lux |
| Pan range |
0 – 190° |
| Tilt angle range |
-8 – 75° |
Image sensor
| Number of sensors |
1 |
|---|---|
| Optical sensor size |
1/1.8" |
| Progressive scan |
Yes |
| Sensor type |
CMOS |
Network
| Bluetooth |
No |
|---|---|
| Ethernet LAN |
Yes |
| Networking standards |
IEEE 802.1x/IEEE 802.3at |
| Wi-Fi |
No |
Night vision
| Night vision |
Yes |
|---|
Operational conditions
| Operating temperature (T-T) |
-50 – 55°C |
|---|---|
| Storage temperature (T-T) |
-40 – 65°C |
Package dimensions
| Depth (package,cm) |
26,5cm |
|---|---|
| Gross Weight (Package, kg) |
3,2kg |
| Height (package,cm) |
19cm |
| Width (package,cm) |
22cm |
Packaging content
| Manual |
Yes |
|---|---|
| Mounting brackets included |
Yes |
| Number of cameras |
1 |
Performance
| Connectivity technology |
Wired |
|---|---|
| Day/night mode |
Yes |
| Infrared (IR) cut-off filter |
Yes |
| Languages support |
Czech/Dutch/English/Finnish/French/German/Italian/Japanese/Polish/Portuguese/Russian/Simplified Chinese/Spanish/Swedish/Thai/Traditional Chinese/Turkish/Vietnamese |
| Number of languages |
18 |
| Processor model |
ARTPEC-8 |
| PTZ control |
Yes |
| PTZ modes |
Digital PTZ |
| Wide Dynamic Range (WDR) |
Yes |
Ports & interfaces
| DC-in jack |
Yes |
|---|---|
| Microphone in |
Yes |
Power
| DC output voltage |
10/28 |
|---|---|
| Power consumption (max) |
25Watt |
| Power consumption (typical) |
7Watt |
| Power source type |
DC/PoE |
Product dimensions
| Net Weight (Product, kg) |
3kg |
|---|---|
| Product Depth |
26,5cm |
| Product Height |
19cm |
| Product Width |
22cm |
Security
| Alert notification type |
|
|---|---|
| HTTPS encryption |
Yes |
| IP address filtering |
Yes |
| Password protection |
Yes |
| Video motion detection |
Yes |
Storage
| Built-in HDD |
No |
|---|---|
| Card reader integrated |
Yes |
| Compatible memory cards |
MicroSD (TransFlash)/MicroSDHC/MicroSDXC |
Indoor unit
| Flash memory |
8192MB |
|---|---|
| Internal memory |
2048MB |
Technical details
| Doesn't contain |
BFR/PVC |
|---|---|
| Warranty period |
5jaar |
Weight & dimensions
| Diameter |
18,4cm |
|---|
