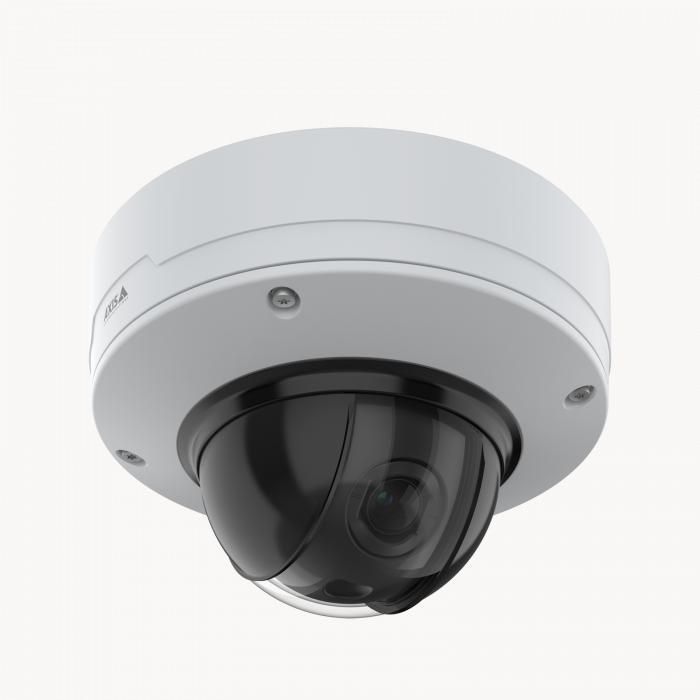

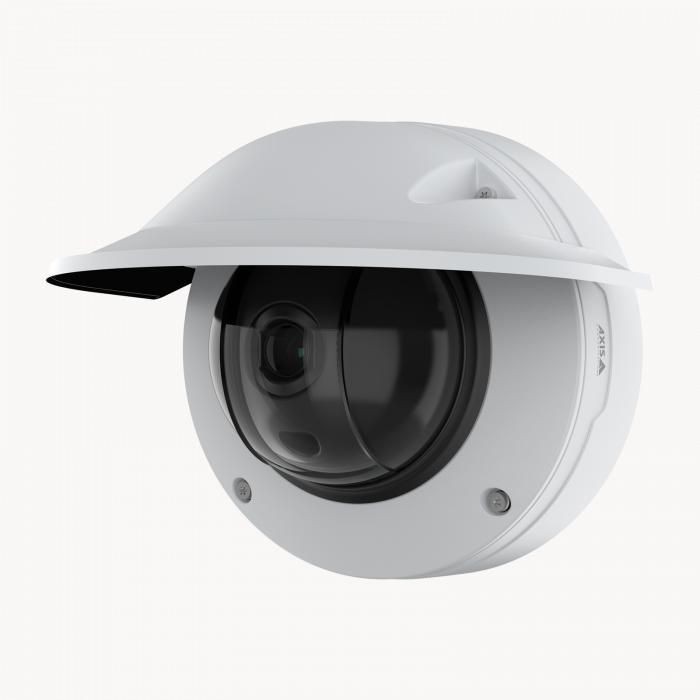

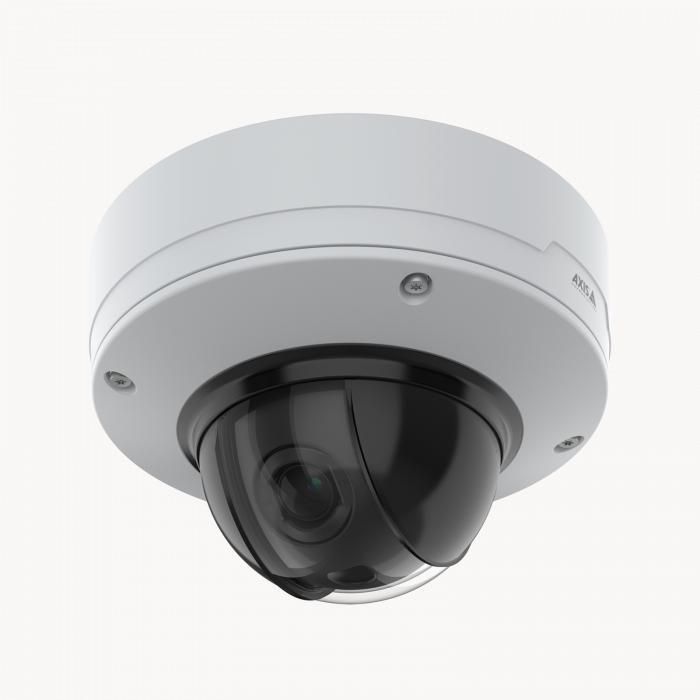

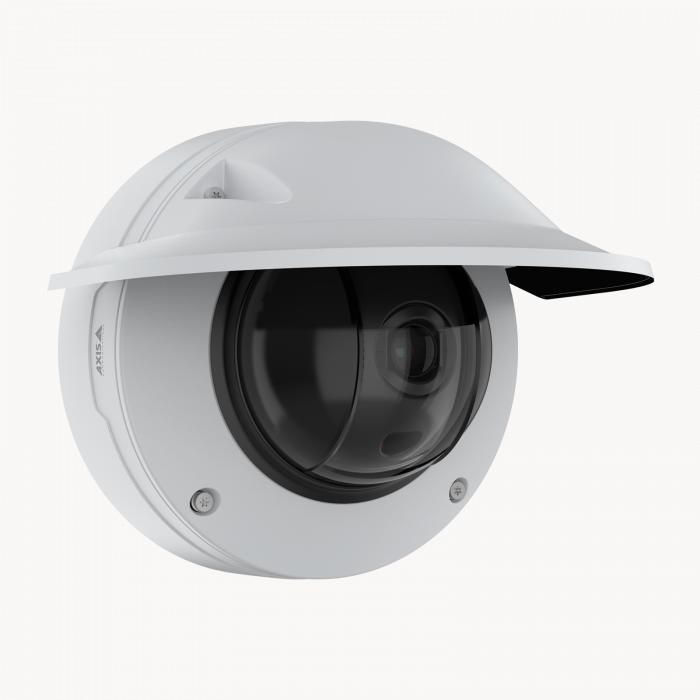

Axis Q3536-LVE 9MM DOME CAMERA
€2,011,91
Model: 02054-001
- Ingebouwde cyberbeveiligingsfuncties; IR-geschilderde koepel om reflecties te voorkomen; Uitstekende beeldkwaliteit in 4 MP; Ondersteuning voor analyses met diepe learning
De Axis Q3536-LVE 9MM Dome Camera is de ultieme beveiligingsoplossing voor zowel binnen- als buitentoepassingen. Met zijn geavanceerde 4K Ultra HD-resolutie levert deze domecamera haarscherpe beelden, ongeacht de lichtomstandigheden, dankzij de geïntegreerde Lightfinder- en Forensic WDR-technologie. De robuuste behuizing is vandaalbestendig en bestand tegen extreme weersomstandigheden, wat zorgt voor betrouwbare prestaties in alle omgevingen. Met zijn veelzijdige 9mm lens biedt deze camera een breed gezichtsveld, ideaal voor het monitoren van grote gebieden. Eenvoudige installatie, krachtige video-analysefuncties en naadloze integratie met beveiligingssystemen maken de Axis Q3536-LVE een topkeuze voor professionele beveiliging. Verhoog uw veiligheid en bescherm uw eigendommen met deze hoogwaardige Axis domecamera.
Audio |
|
| Audio detectie | Ja |
| Ondersteunde audioformaten | AAC-LC/ADPCM/G.711/G.726/LPCM/OPUS/PCM |
| Audiosysteem | 2-weg |
| Audiosysteem full duplex | Ja |
| Ingebouwde microfoon | Ja |
Batterij |
|
| Batterijtype | UN3091 - Lithium METAL binnen apparatuur |
| Lithium gewicht (g) | 0,064g |
Camera |
|
| Rotatiehoek | 175° |
| Camera pan controle | Ja |
| Camera sluitertijd | 1/91000 - 1 secondeSeconde |
| Camera tilt controle | Ja |
| Lens kijkhoek, horizontaal | 103 - 53° |
| Lens kijkhoek, verticaal | 56 - 30° |
| Minimale verlichting | 0,08Lux |
| Pan bereik | -180 - 180° |
| Tilt hoeken bereik | -43 - 80° |
Ontwerp |
|
| Fogproof | Ja |
| Vormfactor | Dome |
| IK-code | IK10+ |
| Internationale Bescherming (IP) code | IP66 |
| Montagetype | Plafond/Wand/Paal |
| Productkleur | Wit |
| Beveiligingskenmerken | Vandalisme bestendig |
| Weerbestendig | Ja |
Beeldsensor |
|
| Aantal sensoren | 1 |
| Optische sensor grootte | 1/1.8" |
| Progressieve scan | Ja |
| Sensortype | CMOS |
Lenssysteem |
|
| Brandpuntsafstand bereik | 6mm |
| Focus | Handmatig |
| Maximale diafragma nummer | 2,4 |
| Minimale diafragma nummer | 1,5 |
| Aantal lenzen | 1 |
| Optische zoom | 2x |
| Zoomcapaciteit | Ja |
Beheerfuncties |
|
| Vanuit de verte bediend | Ja |
Netwerk |
|
| Bluetooth | Nee |
| Ethernet LAN | Ja |
| Netwerkstandaarden | IEEE 802.1x/IEEE 802.3at |
| Quality of Service (QoS) ondersteuning | Ja |
| Streaming methode | Multicast |
| Wi-Fi | Nee |
Nachtzicht |
|
| LED-type | IR |
| Nachtzicht | Ja |
| Nachtzicht afstand | 15m |
| Aantal verlichtings-LED's | 2 |
Operationele omstandigheden |
|
| Operationele relatieve luchtvochtigheid (H-H) | 10 - 100procent |
| Operationele temperatuur (T-T) | -50 - 55°C |
| Opslag relatieve luchtvochtigheid (H-H) | 5 - 95procent |
| Opslag temperatuur (T-T) | -40 - 65°C |
Pakketdimensies |
|
| Diepte (pakket, cm) | 24cm |
| Hoogte (pakket, cm) | 27,1cm |
| Breedte (pakket, cm) | 21cm |
Verpakking inhoud |
|
| Boor sjabloon inbegrepen | Ja |
| Handleiding | Ja |
| Montagebeugels inbegrepen | Ja |
| Montagekit | Ja |
| Aantal camera's | 1 |
Prestaties |
|
| Connectiviteitstechnologie | Bedraad |
| Dag/nacht modus | Ja |
| Infrarood (IR) cutoff filter | Ja |
| Taalondersteuning | Engels/Frans/Duits/Italiaans/Japans/Koreaans/Pools/Portugees/Russisch/Vereenvoudigd Chinees/Spaans/Traditioneel Chinees |
| Aantal talen | 12 |
| Mensen telling functie | Ja |
| Plaatsing ondersteund | Binnen & buiten |
| PTZ controle | Ja |
| PTZ modi | Digitale PTZ |
| Type | IP beveiligingscamera |
| Wide Dynamic Range (WDR) | Ja |
Poorten & interfaces |
|
| Ethernet LAN (RJ-45) poorten | 1 |
Voeding |
|
| DC uitvoer spanning | 10/28 |
| Energieverbruik (max) | 23Watt |
| Energieverbruik (typisch) | 9Watt |
| Energiebron type | DC/PoE |
Productdimensies |
|
| Netto gewicht (Product, kg) | 3kg |
| Product hoogte | 12,4cm |
Beveiliging |
|
| Actief manipulatiealarm | Ja |
| Alert notificatie type | |
| Digest authenticatie | Ja |
| HTTPS encryptie | Ja |
| Menselijke en voertuigdoelen classificatie | Ja |
| Intelligent Video Surveillance (IVS) systeemfuncties | Oversteken lijn/Gezichtdetectie/Mensdetectie/Voertuigdetectie |
| IP adres filtering | Ja |
| Wachtwoordbeveiliging | Ja |
| Pixel teller | Ja |
| Beveiligingsalgoritmes | EAP-TLS/FIPS 140-2/HTTPS |
Opslag |
|
| Kaartlezer geïntegreerd | Ja |
| Compatibele geheugenkaarten | SD/SDHC/SDXC |
| Flashgeheugen | 8194MB |
| Intern geheugen | 2048MB |
Technische details |
|
| Geschikt voor buitengebruik | Ja |
Verkoper informatie |
|
| Merknaam | Axis |
| Garantie | 5#ProductAttributes.Unit.Year# |
Video |
|
| Bitrate controle | Variabele Bit Rate (VBR) |
| Frame snelheid | 60fps |
| Gain controle type | Auto |
| Beeldkwaliteit aanpassing | Helderheid/Contrast/Saturatie/Scherpte |
| Beeld stabilisator | Ja |
| Maximale resolutie | 2688 x 1512Pixels |
| Privacy masking | Ja |
| Totaal aantal megapixels | 8MP |
| Videocompressieformaten | H.264/H.265/M-JPEG |
| Videorecording | Ja |
| Videostreaming | Ja |
Gewicht & dimensies |
|
| Diameter | 18,3cm |
Design
| Product colour |
White |
|---|---|
| Protection features |
Vandal proof |
| Fog proof |
Yes |
| Form factor |
Dome |
| IK code |
IK10+ |
| Mounting type |
Ceiling/Wall/Pole |
| Weatherproof |
Yes |
Lens system
| Focal length range |
6mm |
|---|---|
| Focus |
Manual |
| Maximum aperture number |
2,4 |
| Minimum aperture number |
1,5 |
| Number of lenses |
1 |
| Optical zoom |
2x |
| Zoom capability |
Yes |
Night vision
| Night vision distance |
15m |
|---|---|
| LED type |
IR |
| Night vision |
Yes |
| Number of illumination LEDs |
2 |
Logistics data
| Placement supported |
Indoor & outdoor |
|---|
Vendor information
| Brand Name |
Axis |
|---|---|
| Warranty |
5#ProductAttributes.Unit.Year# |
Video
| Total megapixels |
8MP |
|---|---|
| Bit rate control |
Variable Bit Rate (VBR) |
| Frame rate |
60fps |
| Gain control type |
Auto |
| Image quality adjustment |
Brightness/Contrast/Saturation/Sharpness |
| Image stabilizer |
Yes |
| Maximum resolution |
2688 x 1512Pixels |
| Privacy masking |
Yes |
| Video compression formats |
H.264/H.265/M-JPEG |
| Video recording |
Yes |
| Video streaming |
Yes |
Audio
| Audio detection |
Yes |
|---|---|
| Audio formats supported |
AAC-LC/ADPCM/G.711/G.726/LPCM/OPUS/PCM |
| Audio system |
2-way |
| Audio system full duplex |
Yes |
Features
| Built-in microphone |
Yes |
|---|
Battery
| Battery Type |
UN3091 – Lithium METAL inside equiment |
|---|---|
| Lithium Weight (g) |
0,064g |
Camera
| Angle of rotation |
175° |
|---|---|
| Camera pan control |
Yes |
| Camera shutter speed |
1/91000 – 1 SecondSecond |
| Camera tilt control |
Yes |
| Lens viewing angle, vertical |
56 – 30° |
| Minimum illumination |
0,08Lux |
| Pan range |
-180 – 180° |
| Tilt angle range |
-43 – 80° |
Image sensor
| Number of sensors |
1 |
|---|---|
| Optical sensor size |
1/1.8" |
| Progressive scan |
Yes |
| Sensor type |
CMOS |
Management features
| Remotely operated |
Yes |
|---|
Network
| Bluetooth |
No |
|---|---|
| Ethernet LAN |
Yes |
| Networking standards |
IEEE 802.1x/IEEE 802.3at |
| Streaming method |
Multicast |
| Wi-Fi |
No |
Operational conditions
| Operating temperature (T-T) |
-50 – 55°C |
|---|---|
| Storage temperature (T-T) |
-40 – 65°C |
Package dimensions
| Depth (package,cm) |
24cm |
|---|---|
| Gross Weight (Package, kg) |
3,2kg |
| Height (package,cm) |
27,1cm |
| Width (package,cm) |
21cm |
Packaging content
| Drilling template included |
Yes |
|---|---|
| Manual |
Yes |
| Mounting brackets included |
Yes |
| Mounting kit |
Yes |
| Number of cameras |
1 |
Performance
| Connectivity technology |
Wired |
|---|---|
| Day/night mode |
Yes |
| Infrared (IR) cut-off filter |
Yes |
| Languages support |
English/French/German/Italian/Japanese/Korean/Polish/Portuguese/Russian/Simplified Chinese/Spanish/Traditional Chinese |
| Number of languages |
12 |
| People counting function |
Yes |
| PTZ control |
Yes |
| PTZ modes |
Digital PTZ |
| Wide Dynamic Range (WDR) |
Yes |
Power
| DC output voltage |
10/28 |
|---|---|
| Power consumption (max) |
23Watt |
| Power consumption (typical) |
9Watt |
| Power source type |
DC/PoE |
Product dimensions
| Net Weight (Product, kg) |
3kg |
|---|---|
| Product Height |
12,4cm |
Security
| Active tampering alarm |
Yes |
|---|---|
| Alert notification type |
|
| Digest authentication |
Yes |
| HTTPS encryption |
Yes |
| IP address filtering |
Yes |
| Password protection |
Yes |
| Pixel counter |
Yes |
| Security algorithms |
EAP-TLS/FIPS 140-2/HTTPS |
Storage
| Card reader integrated |
Yes |
|---|---|
| Compatible memory cards |
SD/SDHC/SDXC |
Indoor unit
| Flash memory |
8194MB |
|---|---|
| Internal memory |
2048MB |
Technical details
| Suitable for outdoor use |
Yes |
|---|
Weight & dimensions
| Diameter |
18,3cm |
|---|
