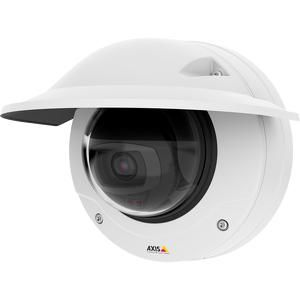

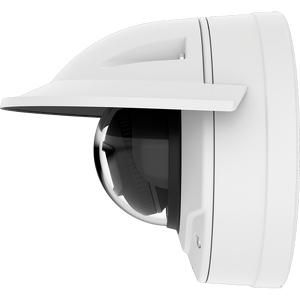

Axis Q3517-LVE, IP security camera, Indoor & outdoor, Wired, Digital PTZ, Preset point, EN 55032 Class A, EN 55024, IEC/EN 61000-6-1, IEC/EN 61000-6-2, FCC Part 15, Subpart B, Class A,..., Dome
€1,846,16
Model: 01022-001
Ontdek de Axis Q3517-LVE IP-beveiligingscamera, perfect voor zowel binnen- als buitentoepassingen. Deze high-performance draadgebonden domecamera biedt geavanceerde digitale PTZ-functionaliteit en preset-standpunten voor optimale bewaking. Met zijn naleving van EN 55032 Klasse A, EN 55024, IEC/EN 61000-6-1, IEC/EN 61000-6-2, en FCC Deel 15, Subdeel B, Klasse A, garandeert deze camera betrouwbare en storingsvrije prestaties. Of het nu gaat om dag- of nachtzicht, de Axis Q3517-LVE levert superieure beeldkwaliteit voor een robuuste beveiligingsoplossing. Verbeter uw beveiligingssysteem met deze veelzijdige en duurzame IP-camera.
Audio |
|
| Audio codecs | AAC LC 8/16/32/48 kHz, G.711, G.726 ADPCM 8kHz, Opus 8/16/48 kHz |
| Audio input channels | 1kanalen |
| Audio output channels | 1kanalen |
| Audio system | 2-weg |
Batterij |
|
| Batterijtype | UN3091 - Lithium METAL binnen apparatuur |
| Lithium gewicht (g) | 0,064g |
Camera |
|
| Rotatiehoek | 175° |
| Sluitertijd camera | 1/71 500 - 2Seconde |
| Lens kijkhoek, horizontaal | 96° |
| Lens kijkhoek, verticaal | 53° |
| Minimale verlichting | 0,02Lux |
| Panbereik | 0 - 360° |
| Kantelhoek bereik | -80 - 80° |
| Kijkhoek, horizontaal | 96° |
| Kijkhoek, verticaal | 53° |
Ontwerp |
|
| Vormfactor | Dome |
| Behuizingsmateriaal | Aluminium |
| IK-code | IK10 |
| Internationale beschermingscode (IP) | IP67 |
| Montage type | Plafond/wand |
| Productkleur | Wit |
| Beschermingskenmerken | Vandalismebestendig |
Beeldsensor |
|
| Optische sensorgrootte | 1/1.8" |
| Sensortype | CMOS |
Lenssysteem |
|
| Vaste brandpuntsafstand | 1,5mm |
| Brandpuntsafstand bereik | 4.3 - 8.6mm |
| Zoomfunctie | Ja |
Logistieke gegevens |
|
| Geharmoniseerd systeem (HS) code | 85258900 |
Netwerk |
|
| Bluetooth | Nee |
| Ethernet LAN | Ja |
| Ondersteunde netwerkprotocollen | IPv4/v6, HTTP, HTTPS, SSL/TLSa, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, LLDP |
| Wi-Fi | Nee |
Nachtzicht |
|
| Infraroodgolflengte | 850nm |
| LED-type | IR |
| Nachtzicht | Ja |
| Nachtzicht afstand | 40m |
Operationele voorwaarden |
|
| Relatieve vochtigheid (H-H) | 10 - 100procent |
| Bedrijfstemperatuur (T-T) | -50 - 60°C |
| Opslag temperatuur (T-T) | -40 - 65°C |
Productafmetingen |
|
| Diepte (pakket, cm) | 24cm |
| Brutogewicht (pakket, kg) | 2,91kg |
| Hoogte (pakket, cm) | 30,5cm |
| Breedte (pakket, cm) | 25,5cm |
Verpakkingsinhoud |
|
| Montagebeugels inbegrepen | Ja |
| Aantal camera's | 1 |
| Snelle installatiegids | Ja |
Prestaties |
|
| Alarminvoer/-uitvoer | Ja |
| Verbindingstechnologie | Bedraad |
| Dag/nacht modus | Ja |
| Infrarood (IR) afsnijdfilter | Ja |
| Plaatsing ondersteund | Binnen & buiten |
| PTZ-besturing | Ja |
| PTZ-modi | Digitale PTZ/Punt voorgeselecteerd |
| Type | IP-beveiligingscamera |
| Brede dynamische range (WDR) | Ja |
Poorten en interfaces |
|
| Ethernet LAN (RJ-45) poorten | 1 |
Voeding |
|
| Maximaal energieverbruik | 14,5Watt |
| Energieverbruik (Power over Ethernet (PoE)) | 6,5Watt |
| Energieverbruik (typisch) | 6,9Watt |
| Power over Ethernet (PoE) | Ja |
| Voedingstype | PoE |
Productafmetingen |
|
| Netto gewicht (product, kg) | 2kg |
| Diepte product | 24cm |
| Hoogte product | 18,2cm |
| Breedte product | 25,5cm |
Beveiliging |
|
| HTTPS-encryptie | Ja |
| IP-adresfiltering | Ja |
| Wachtwoordbeveiligingstype | Gebruiker |
Opslag |
|
| Ingebouwde HDD | Nee |
| Kaartlezer geïntegreerd | Ja |
| Compatibele geheugenkaarten | MicroSD (TransFlash)/MicroSDHC/MicroSDXC |
| Flashgeheugen | 512MB |
| Interne geheugen | 1024MB |
Technische details |
|
| Verwijderbaar IR-filter | Ja |
Leverancierinformatie |
|
| Merkennaam | Axis |
| Garantie | 5#ProductAttributes.Unit.Year# |
Video |
|
| Frame rate | 30fps |
| Aanpassing beeldkwaliteit | Helderheid/Kleur diepte/Contrast/Helderheid |
| Beeldstabilisatie | Ja |
| Maximale resolutie | 3072 x 1728Pixels |
| Totaal aantal megapixels | 5MP |
| Videocompressieformaten | H.264 |
Gewicht en afmetingen |
|
| Diameter | 18,34cm |
Design
| Product colour |
White |
|---|---|
| Protection features |
Vandal proof |
| Form factor |
Dome |
| Housing material |
Aluminium |
| IK code |
IK10 |
| Mounting type |
Ceiling/wall |
Lens system
| Focal length range |
4.3 – 8.6mm |
|---|---|
| Fixed focal length |
1,5mm |
| Zoom capability |
Yes |
Night vision
| Night vision distance |
40m |
|---|---|
| Infra-red wavelength |
850nm |
| LED type |
IR |
| Night vision |
Yes |
Logistics data
| Placement supported |
Indoor & outdoor |
|---|---|
| Harmonized System (HS) code |
85258900 |
Vendor information
| Brand Name |
Axis |
|---|---|
| Warranty |
5#ProductAttributes.Unit.Year# |
Video
| Total megapixels |
5MP |
|---|---|
| Frame rate |
30fps |
| Image quality adjustment |
Brightness/Colour depth/Contrast/Sharpness |
| Image stabilizer |
Yes |
| Maximum resolution |
3072 x 1728Pixels |
| Video compression formats |
H.264 |
Performance
| Audio codecs |
AAC LC 8/16/32/48 kHz, G.711, G.726 ADPCM 8kHz, Opus 8/16/48 kHz |
|---|---|
| Alarm input/output |
Yes |
| Connectivity technology |
Wired |
| Day/night mode |
Yes |
| Infrared (IR) cut-off filter |
Yes |
| PTZ control |
Yes |
| PTZ modes |
Digital PTZ/Preset point |
| Wide Dynamic Range (WDR) |
Yes |
Audio
| Audio input channels |
1kanalen |
|---|---|
| Audio output channels |
1kanalen |
| Audio system |
2-way |
Battery
| Battery Type |
UN3091 – Lithium METAL inside equiment |
|---|---|
| Lithium Weight (g) |
0,064g |
Camera
| Angle of rotation |
175° |
|---|---|
| Camera shutter speed |
1/71 500 – 2Second |
| Lens viewing angle, vertical |
53° |
| Minimum illumination |
0,02Lux |
| Pan range |
0 – 360° |
| Tilt angle range |
-80 – 80° |
| Viewing angle, horizontal |
96° |
| Viewing angle, vertical |
53° |
Image sensor
| Optical sensor size |
1/1.8" |
|---|---|
| Sensor type |
CMOS |
Network
| Bluetooth |
No |
|---|---|
| Ethernet LAN |
Yes |
| Wi-Fi |
No |
Operational conditions
| Operating temperature (T-T) |
-50 – 60°C |
|---|---|
| Storage temperature (T-T) |
-40 – 65°C |
Package dimensions
| Depth (package,cm) |
24cm |
|---|---|
| Gross Weight (Package, kg) |
2,91kg |
| Height (package,cm) |
30,5cm |
| Width (package,cm) |
25,5cm |
Packaging content
| Mounting brackets included |
Yes |
|---|---|
| Number of cameras |
1 |
| Quick installation guide |
Yes |
Power
| Power consumption (max) |
14,5Watt |
|---|---|
| Power consumption (typical) |
6,9Watt |
| Power over Ethernet (PoE) |
Yes |
| Power source type |
PoE |
Product dimensions
| Net Weight (Product, kg) |
2kg |
|---|---|
| Product Depth |
24cm |
| Product Height |
18,2cm |
| Product Width |
25,5cm |
Security
| HTTPS encryption |
Yes |
|---|---|
| IP address filtering |
Yes |
| Password protection type |
User |
Storage
| Built-in HDD |
No |
|---|---|
| Card reader integrated |
Yes |
| Compatible memory cards |
MicroSD (TransFlash)/MicroSDHC/MicroSDXC |
Indoor unit
| Flash memory |
512MB |
|---|---|
| Internal memory |
1024MB |
Technical details
| Removable IR-cut filter |
Yes |
|---|
Weight & dimensions
| Diameter |
18,34cm |
|---|
