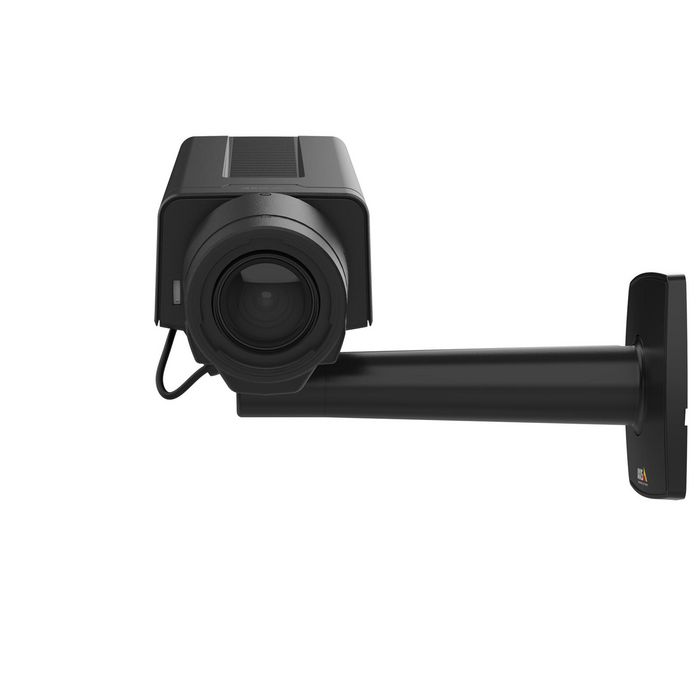

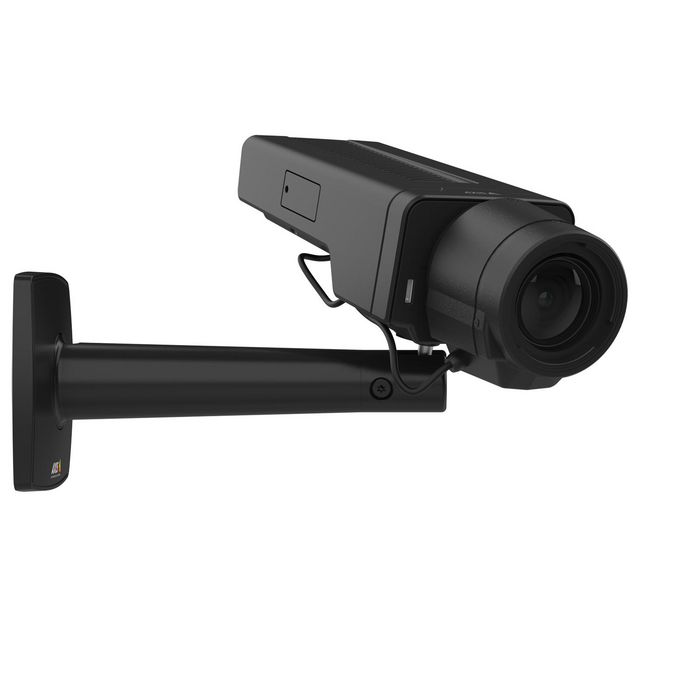

Axis Q1656
€1,782,16
Model: 02164-001
- Ingebouwde cyberbeveiligingsfuncties; Uitzonderlijke beelden met 1/1.8” sensor; Premium functionaliteit van Axis Q-lijncamera; Afstandszoom en -focus; Ondersteuning voor analyses met diep leren
De Axis Q1656 is een geavanceerde netwerkcamera die optimale beveiliging en surveillance biedt voor zowel binnen- als buitenomgevingen. Met een hoge resolutie en geavanceerde beeldverwerkingstechnologieën levert deze camera uitmuntende beeldkwaliteit, zelfs onder uitdagende lichtomstandigheden. De Axis Q1656 is uitgerust met intelligente analytics, waardoor proactief reageren op incidenten mogelijk wordt gemaakt. Robuust en weerbestendig, deze camera is ideaal voor gebruik op locaties zoals luchthavens, stations, winkels en andere grote open ruimtes. Ontdek superieure beveiliging met de Axis Q1656 en bescherm wat belangrijk voor u is.
Audio |
|
| Audio detectie | Ja |
| Ondersteunde audioformaten | ADPCM/LC-AAC/LPCM/PCM |
| Audiosysteem | 2-weg |
| Audiosysteem full duplex | Ja |
| Ingebouwde microfoon | Ja |
| Voice codecs | G.711/G.726/OPUS |
Batterij |
|
| Batterijtype | UN3091 - Lithium METAAL in apparatuur |
| Lithium gewicht (g) | 0,064g |
Camera |
|
| Camera sluiter snelheid | 1/47500 - 1Seconde |
| Lens kijkhoek, horizontaal | 120° |
| Lens kijkhoek, verticaal | 63° |
| Minimale verlichting | 0,01Lux |
| Kijkhoek, horizontaal | 120° |
| Kijkhoek, verticaal | 63° |
Ontwerp |
|
| Fog proof | Ja |
| Vormfactor | Dome |
| Behuismateriaal | Aluminium |
| Montage type | Plafond/wand |
| Product kleur | Zwart |
Beeldsensor |
|
| Aantal sensoren | 1 |
| Optische sensor grootte | 1/1.8" |
| Progressieve scan | Ja |
| Sensortype | CMOS |
Lenssysteem |
|
| Auto focus | Ja |
| Dichtste scherpstelafstand | 0,5m |
| Brandpuntsafstand bereik | 3.9 - 10mm |
| Maximale diafragma nummer | 1,5 |
| Aantal lenzen | 1 |
| Optische zoom | 2,5x |
| Zoomcapaciteit | Ja |
Logistieke gegevens |
|
| Geharmoniseerd Systeem (HS) code | 85258900 |
Beheerfuncties |
|
| Gedragsanalyse | Lijnoverschrijding detectie |
| Afstandsbediening | Ja |
Netwerk |
|
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Ja |
| Live view | Ja |
| Netwerkstandaarden | IEEE 802.3/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3at/IEEE 802.3u |
| Quality of Service (QoS) ondersteuning | Ja |
| SIM kaart sleuf | Nee |
| Wi-Fi | Nee |
Operationele omstandigheden |
|
| Operating relatieve luchtvochtigheid (H-H) | 10 - 85procent |
| Bedrijfstemperatuur (T-T) | -20 - 60°C |
| Opslag relatieve luchtvochtigheid (H-H) | 5 - 95procent |
| Opslagtemperatuur (T-T) | -40 - 65°C |
Pakketafmetingen |
|
| Diepte (pakket,cm) | 27cm |
| Brutogewicht (Pakket, kg) | 1,1kg |
| Hoogte (pakket,cm) | 10cm |
| Breedte (pakket,cm) | 21cm |
Verpakking inhoud |
|
| Aantal camera's | 1 |
Prestatie |
|
| Connectiviteits technologie | Bedraad |
| Dag/nacht modus | Ja |
| Dynamisch bereik | 120dB |
| Infrarood (IR) uitsnijfilter | Ja |
| Talen ondersteuning | Engels/Frans/Duits/Italiaans/Japans/Koreaans/Pools/Portugees/Russisch/Vereenvoudigd Chinees/Spaans/Traditioneel Chinees |
| Aantal talen | 12 |
| Plaatsing ondersteund | Binnen |
| PTZ modi | Digitaal PTZ |
| Afstandsbediening bekijken | Ja |
| Type | IP beveiligingscamera |
| Wide Dynamic Range (WDR) | Ja |
Poorten & interfaces |
|
| Ethernet LAN (RJ-45) poorten | 1 |
| Hoofdtelefoonuitgangen | 1 |
| Microfoon in | Ja |
| RS-422 poorten | 2 |
| RS-485 poorten | 2 |
Voeding |
|
| DC uitgangsspanning | 10/28 |
| Vermogensverbruik (max) | 7,7Watt |
| Vermogensverbruik (Power over Ethernet (PoE)) | 5,1Watt |
| Vermogensverbruik (typisch) | 4,6Watt |
| Voedingsbron type | DC/PoE |
Productafmetingen |
|
| Netto gewicht (Product, kg) | 1kg |
| Product Diepte | 27cm |
| Product Hoogte | 10cm |
| Product Breedte | 21cm |
Beveiliging |
|
| Alert meldings type | |
| HTTPS encryptie | Ja |
| IP adres filtering | Ja |
| Spiegel | Ja |
| Wachtwoord beveiliging | Ja |
| Beveiligingsalgoritmen | EAP-TLS/FIPS 140-2/HTTPS |
| Videobewegingsdetectie | Ja |
Opslag |
|
| Ingebouwde HDD | Nee |
| Kaartlezer geïntegreerd | Ja |
| Compatibele geheugenkaarten | MicroSD (TransFlash)/MicroSDHC/MicroSDXC |
| Flashgeheugen | 8194MB |
| Intern geheugen | 2048MB |
Systeemvereisten |
|
| Ondersteunde Windows besturingssystemen | Ja |
Technische details |
|
| Bevat geen | BFR/PVC |
Leverancier informatie |
|
| Merknaam | Axis |
| Garantietermijn | 5#ProductAttributes.Unit.Year# |
Video |
|
| Gain controle type | Auto |
| Beeld stabilisator | Ja |
| Maximale resolutie | 2688 x 1512Pixels |
| Ruisonderdrukking | Ja |
| Privacy masking | Ja |
| Ondersteunde grafische resoluties | 160 x 90/2688 x 1512 |
| Tekstcaption overlay | Ja |
| Totaal aantal megapixels | 4MP |
| Ondersteunde videoformaten | H.264/H.265/M-JPEG |
| Video intelligentie analyse | Ja |
| Video streaming | Ja |
Design
| Product colour |
Black |
|---|---|
| Fog proof |
Yes |
| Form factor |
Dome |
| Housing material |
Aluminium |
| Mounting type |
Ceiling/wall |
Lens system
| Focal length range |
3.9 – 10mm |
|---|---|
| Auto focus |
Yes |
| Closest focusing distance |
0,5m |
| Maximum aperture number |
1,5 |
| Number of lenses |
1 |
| Optical zoom |
2,5x |
| Zoom capability |
Yes |
Logistics data
| Placement supported |
Indoor |
|---|---|
| Harmonized System (HS) code |
85258900 |
Vendor information
| Brand Name |
Axis |
|---|---|
| Warranty |
5#ProductAttributes.Unit.Year# |
Video
| Total megapixels |
4MP |
|---|---|
| Gain control type |
Auto |
| Image stabilizer |
Yes |
| Maximum resolution |
2688 x 1512Pixels |
| Noise reduction |
Yes |
| Privacy masking |
Yes |
| Text caption overlay |
Yes |
| Video formats supported |
H.264/H.265/M-JPEG |
| Video streaming |
Yes |
Audio
| Audio detection |
Yes |
|---|---|
| Audio formats supported |
ADPCM/LC-AAC/LPCM/PCM |
| Audio system |
2-way |
| Audio system full duplex |
Yes |
| Voice codecs |
G.711/G.726/OPUS |
Features
| Built-in microphone |
Yes |
|---|
Battery
| Battery Type |
UN3091 – Lithium METAL inside equiment |
|---|---|
| Lithium Weight (g) |
0,064g |
Camera
| Camera shutter speed |
1/47500 – 1Second |
|---|---|
| Lens viewing angle, vertical |
63° |
| Minimum illumination |
0,01Lux |
| Viewing angle, horizontal |
120° |
| Viewing angle, vertical |
63° |
Image sensor
| Number of sensors |
1 |
|---|---|
| Optical sensor size |
1/1.8" |
| Progressive scan |
Yes |
| Sensor type |
CMOS |
Management features
| Behavior analysis |
Line crossing detection |
|---|---|
| Remotely operated |
Yes |
Network
| Ethernet interface type |
Gigabit Ethernet |
|---|---|
| Ethernet LAN |
Yes |
| Live view |
Yes |
| Networking standards |
IEEE 802.3/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3at/IEEE 802.3u |
| SIM card slot |
No |
| Wi-Fi |
No |
Operational conditions
| Operating temperature (T-T) |
-20 – 60°C |
|---|---|
| Storage temperature (T-T) |
-40 – 65°C |
Package dimensions
| Depth (package,cm) |
27cm |
|---|---|
| Gross Weight (Package, kg) |
1,1kg |
| Height (package,cm) |
10cm |
| Width (package,cm) |
21cm |
Packaging content
| Number of cameras |
1 |
|---|
Performance
| Connectivity technology |
Wired |
|---|---|
| Day/night mode |
Yes |
| Dynamic range |
120dB |
| Infrared (IR) cut-off filter |
Yes |
| Languages support |
English/French/German/Italian/Japanese/Korean/Polish/Portuguese/Russian/Simplified Chinese/Spanish/Traditional Chinese |
| Number of languages |
12 |
| PTZ modes |
Digital PTZ |
| Remote viewing |
Yes |
| Wide Dynamic Range (WDR) |
Yes |
Ports & interfaces
| Headphone outputs |
1 |
|---|---|
| Microphone in |
Yes |
| RS-422 ports |
2 |
Indoor unit
| RS-485 ports |
2 |
|---|---|
| Flash memory |
8194MB |
| Internal memory |
2048MB |
Power
| DC output voltage |
10/28 |
|---|---|
| Power consumption (max) |
7,7Watt |
| Power consumption (typical) |
4,6Watt |
| Power source type |
DC/PoE |
Product dimensions
| Net Weight (Product, kg) |
1kg |
|---|---|
| Product Depth |
27cm |
| Product Height |
10cm |
| Product Width |
21cm |
Security
| Alert notification type |
|
|---|---|
| HTTPS encryption |
Yes |
| IP address filtering |
Yes |
| Mirror |
Yes |
| Password protection |
Yes |
| Security algorithms |
EAP-TLS/FIPS 140-2/HTTPS |
| Video motion detection |
Yes |
Storage
| Built-in HDD |
No |
|---|---|
| Card reader integrated |
Yes |
| Compatible memory cards |
MicroSD (TransFlash)/MicroSDHC/MicroSDXC |
Technical details
| Doesn't contain |
BFR/PVC |
|---|
