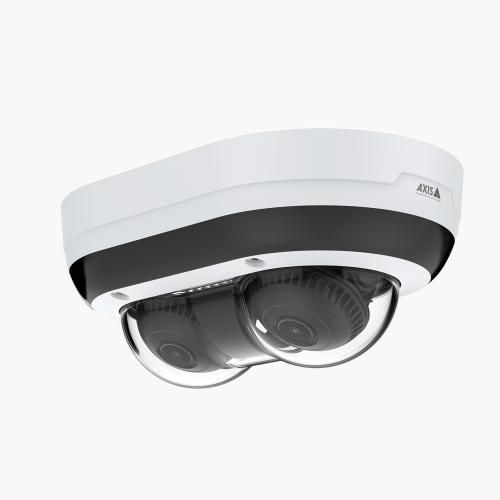

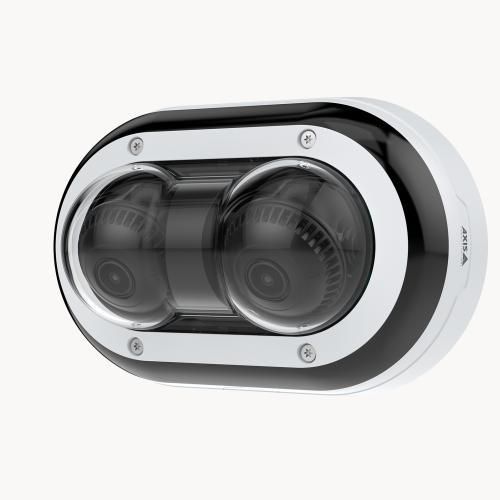

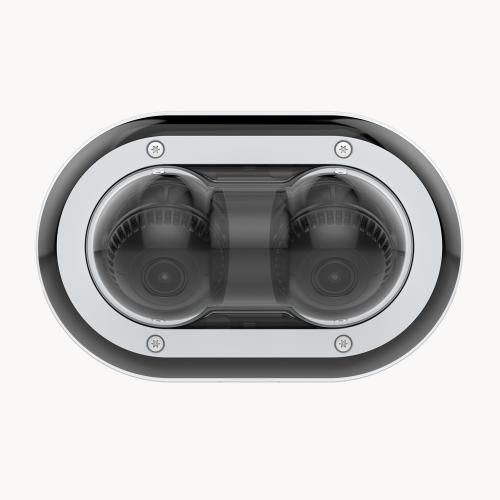

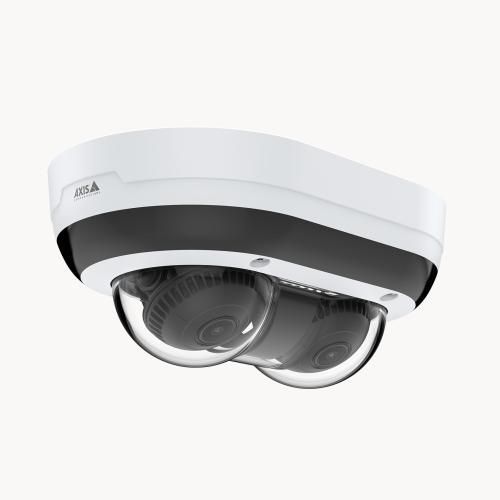

Axis P4708-PLVE Panoramic Camera
€2,374,82
Model: 02944-001
- 2x4K, multidirectionele camera, met één IP-adres
- Ondersteuning voor AI-analyse
- 360° IR-verlichting en 2,5x zoom
- Axis Lightfinder en Forensic WDR
- Axis Edge Vault beschermt het apparaat
De Axis P4708-PLVE Panoramische Camera biedt geavanceerde bewakingstechnologie met uitzonderlijke beeldhelderheid. Deze veelzijdige 360-graden camera is ideaal voor het beveiligen van grote open ruimtes, zowel binnen als buiten, dankzij zijn weerbestendige ontwerp en superieure nachtzichtmogelijkheden. Geniet van naadloze connectiviteit en eenvoudig te integreren functies, waardoor deze camera een essentiële aanvulling is op uw beveiligingssysteem. Vertrouw op de Axis P4708-PLVE voor betrouwbare en continue bewaking, dag en nacht. Verbeter uw beveiliging vandaag nog met deze geavanceerde panoramische camera van Axis.
Audio |
|
| Audioformaten ondersteund | AAC-LC/ADPCM/G.711/G.726/LPCM/PCM |
| Audiok systeem | 2-weg |
| Signaal-ruisverhouding (SNR) | 55dB |
Batterij |
|
| Batterijtype | UN3091 - Lithium METAAL binnen apparatuur |
| Lithium Gewicht (g) | 0,064g |
Camera |
|
| Draaizicht | 240° |
| Camera pan bediening | Ja |
| Camera sluitertijd | 1/16000Seconde |
| Camera sluitertype | Elektronisch |
| Camera kantelbediening | Ja |
| Minimale verlichting | 0Lux |
| Pan bereik | -110 - 110° |
| Kantelhoekbereik | -75 - 75° |
Ontwerp |
|
| Behuizingmateriaal | Aluminium/Kunststof/Polycarbonaat (PC) |
| IK-code | IK10 |
| Internationale bescherming (IP) code | IP66, IP67 |
| Montagetype | Plafond/muur |
| Productkleur | Zwart/Zilver |
Afbeeldingsensor |
|
| Aantal sensoren | 2 |
| Optische sensorsgrootte | 1/2.8" |
| Sensortype | CMOS |
Lens systeem |
|
| Automatische scherpstelling | Ja |
| Dichtste scherpstelafstand | 0,5m |
| Detectieafstand (tele) | 220,1m |
| Detectieafstand (groothoek) | 87,8m |
| Brandpuntsafstand bereik | 3.2 - 8.1mm |
| Identificatieafstand (tele) | 22m |
| Identificatieafstand (groothoek) | 8,8m |
| Maximale diafragmawaarde | 1,9 |
| Minimale diafragmawaarde | 3,2 |
| Aantal lenzen | 2 |
| Observatieafstand (tele) | 87,3m |
| Observatieafstand (groothoek) | 34,8m |
| Herkenningsafstand (tele) | 44m |
| Herkenningsafstand (groothoek) | 17,6m |
| Zoomcapaciteit | Ja |
Netwerk |
|
| Bluetooth | Nee |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Ja |
| Wi-Fi | Nee |
Nachtzicht |
|
| Infrarood golflengte | 850nm |
| LED-type | IR |
| Nachtzicht | Ja |
Operationele omstandigheden |
|
| Werken relatieve luchtvochtigheid (H-H) | 10 - 100procent |
| Werken temperatuur (T-T) | -30 - 50°C |
| Opslag relatieve luchtvochtigheid (H-H) | 5 - 95procent |
| Opslag temperatuur (T-T) | -40 - 65°C |
Pakket afmetingen |
|
| Diepte (pakket, cm) | 24cm |
| Brutogewicht (Pakket, kg) | 1,24kg |
| Hoogte (pakket, cm) | 12cm |
| Breedte (pakket, cm) | 19cm |
Verpakkingsinhoud |
|
| Aantal camera's | 1 |
Panoramische camera |
|
| Sensortype (panoramische camera) | CMOS |
Prestatie |
|
| Ingebouwde processor | Ja |
| Connectiviteitstechnologie | Bedraad |
| Dag/nacht modus | Ja |
| Plaatsing ondersteund | Binnen & buiten |
| Processor model | ARTPEC-8 |
| Afstandsbediening | Ja |
| Type | IP beveiligingscamera |
| Brede dynamische reeks (WDR) | Ja |
Poorten & interfaces |
|
| Ethernet LAN (RJ-45) poorten | 1 |
| Koptelefoonuitgangen | 1 |
| Microfoon in | Ja |
Voeding |
|
| Energieverbruik (max) | 18,8Watt |
| Energieverbruik (typisch) | 10,2Watt |
| Type voeding | PoE |
Productafmetingen |
|
| Netto gewicht (Product, kg) | 1kg |
| Productdiepte | 13cm |
| Producthoogte | 20cm |
| Productbreedte | 8cm |
Beveiliging |
|
| Privacybescherming | Ja |
| Beveiligingsalgoritmen | EAP-TLS/HTTPS/MSCHAPv2/PEAP/TLS |
Opslag |
|
| Ingebouwde HDD | Nee |
| Geïntegreerde kaartlezer | Ja |
| Compatibele geheugenkaarten | MicroSD (TransFlash)/MicroSDHC/MicroSDXC |
| Flashgeheugen | 8192MB |
| RAM-capaciteit | 4096MB |
Duurzaamheid |
|
| Nalevingscertificaten | CE/cUL/EAC/Federal Communications Commission (FCC)/KC/RCM/Trade Agreements Act (TAA)/UKCA/UL/VCCI |
Leverancierinformatie |
|
| Merknaam | Axis |
| Garantie | 5#ProductAttributes.Unit.Year# |
Video |
|
| Framefrequentie | 30fps |
| Gaincontroltype | Automatisch |
| Afbeeldingskwaliteitsaanpassing | Helderheid/Contrast/spiegel/Saturatie/Schärpte |
| Maximale resolutie | 3840 x 2160Pixels |
| Ruisonderdrukking | Ja |
| Ruisonderdrukking technologie | 2D ruisonderdrukking/3D ruisonderdrukking |
| Totaal aantal megapixels | 8MP |
| Video-compressieformaten | H.264/H.265/M-JPEG |
| Videostreaming | Ja |
Design
| Product colour |
Black/Silver |
|---|---|
| Housing material |
Aluminium/Plastic/Polycarbonate (PC) |
| IK code |
IK10 |
| Mounting type |
Ceiling/wall |
Lens system
| Focal length range |
3.2 – 8.1mm |
|---|---|
| Auto focus |
Yes |
| Closest focusing distance |
0,5m |
| Detect distance (tele) |
220,1m |
| Detect distance (wide) |
87,8m |
| Identify distance (tele) |
22m |
| Identify distance (wide) |
8,8m |
| Maximum aperture number |
1,9 |
| Minimum aperture number |
3,2 |
| Number of lenses |
2 |
| Observe distance (tele) |
87,3m |
| Observe distance (wide) |
34,8m |
| Recognize distance (tele) |
44m |
| Recognize distance (wide) |
17,6m |
| Zoom capability |
Yes |
Logistics data
| Placement supported |
Indoor & outdoor |
|---|
Vendor information
| Brand Name |
Axis |
|---|---|
| Warranty |
5#ProductAttributes.Unit.Year# |
Video
| Total megapixels |
8MP |
|---|---|
| Frame rate |
30fps |
| Gain control type |
Auto |
| Image quality adjustment |
Brightness/Contrast/Mirror/Saturation/Sharpness |
| Maximum resolution |
3840 x 2160Pixels |
| Noise reduction |
Yes |
| Noise reduction technology |
2D noise reduction/3D noise reduction |
| Video compression formats |
H.264/H.265/M-JPEG |
| Video streaming |
Yes |
Audio
| Audio formats supported |
AAC-LC/ADPCM/G.711/G.726/LPCM/PCM |
|---|---|
| Audio system |
2-way |
| Signal-to-Noise Ratio (SNR) |
55dB |
Battery
| Battery Type |
UN3091 – Lithium METAL inside equiment |
|---|---|
| Lithium Weight (g) |
0,064g |
Camera
| Angle of rotation |
240° |
|---|---|
| Camera pan control |
Yes |
| Camera shutter speed |
1/16000Second |
| Camera shutter type |
Electronic |
| Camera tilt control |
Yes |
| Minimum illumination |
0Lux |
| Pan range |
-110 – 110° |
| Tilt angle range |
-75 – 75° |
Image sensor
| Number of sensors |
2 |
|---|---|
| Optical sensor size |
1/2.8" |
| Sensor type |
CMOS |
Network
| Bluetooth |
No |
|---|---|
| Ethernet interface type |
Gigabit Ethernet |
| Ethernet LAN |
Yes |
| Wi-Fi |
No |
Night vision
| Infra-red wavelength |
850nm |
|---|---|
| LED type |
IR |
| Night vision |
Yes |
Operational conditions
| Operating temperature (T-T) |
-30 – 50°C |
|---|---|
| Storage temperature (T-T) |
-40 – 65°C |
Package dimensions
| Depth (package,cm) |
24cm |
|---|---|
| Gross Weight (Package, kg) |
1,24kg |
| Height (package,cm) |
12cm |
| Width (package,cm) |
19cm |
Packaging content
| Number of cameras |
1 |
|---|
Panoramic camera
| Sensor type (panoramic camera) |
CMOS |
|---|
Performance
| Built-in processor |
Yes |
|---|---|
| Connectivity technology |
Wired |
| Day/night mode |
Yes |
| Processor model |
ARTPEC-8 |
| Remote viewing |
Yes |
| Wide Dynamic Range (WDR) |
Yes |
Ports & interfaces
| Headphone outputs |
1 |
|---|---|
| Microphone in |
Yes |
Power
| Power consumption (max) |
18,8Watt |
|---|---|
| Power consumption (typical) |
10,2Watt |
| Power source type |
PoE |
Product dimensions
| Net Weight (Product, kg) |
1kg |
|---|---|
| Product Depth |
13cm |
| Product Height |
20cm |
| Product Width |
8cm |
Security
| Privacy protection |
Yes |
|---|---|
| Security algorithms |
EAP-TLS/HTTPS/MSCHAPv2/PEAP/TLS |
Storage
| Built-in HDD |
No |
|---|---|
| Card reader integrated |
Yes |
| Compatible memory cards |
MicroSD (TransFlash)/MicroSDHC/MicroSDXC |
| RAM capacity |
4096MB |
Indoor unit
| Flash memory |
8192MB |
|---|
Sustainability
| Compliance certificates |
CE/cUL/EAC/Federal Communications Commission (FCC)/KC/RCM/Trade Agreements Act (TAA)/UKCA/UL/VCCI |
|---|
