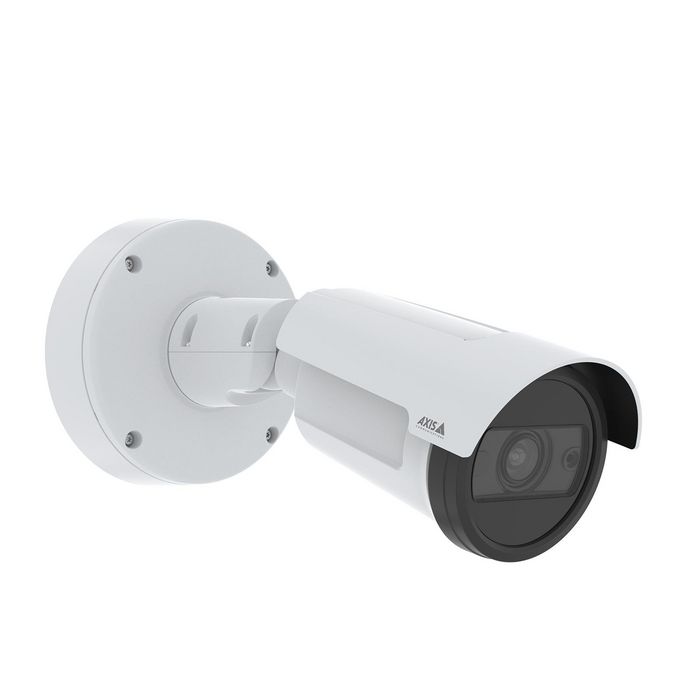

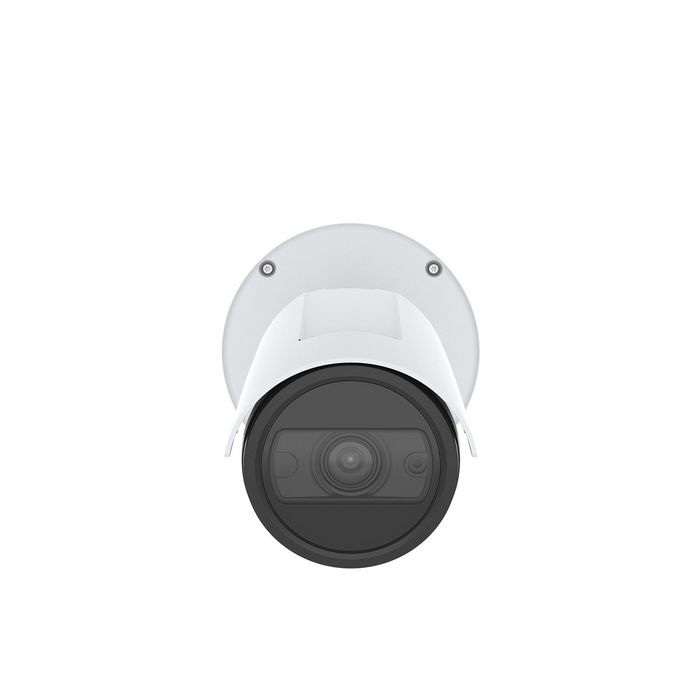

Axis P1468-LE
€1,438,89
Model: 02342-001
- Analytische mogelijkheden met deep learning; Audio- en I/O-connectiviteit; Ingebouwde cyberbeveiligingsfuncties; Impact- en weerbestendig; Lightfinder 2.0, Forensische WDR, GeoptimaliseerdIR
De Axis P1468-LE is een geavanceerde bulletcamera die uitstekende beveiligingsmogelijkheden biedt voor zowel binnen- als buitentoepassingen. Uitgerust met ultra-hoge resolutie en geavanceerde beeldtechnologieën garandeert de camera heldere en scherpe beelden, zelfs onder uitdagende lichtomstandigheden. Dankzij de geïntegreerde IR-verlichting en de kunstmatige intelligentie voor bewegingsdetectie is optimale bewaking gegarandeerd, dag en nacht. Deze robuuste camera is weerbestendig en eenvoudig te installeren, waardoor hij perfect is voor professionele beveiligingssystemen. Kies de Axis P1468-LE voor betrouwbare, hoogwaardige beveiliging van uw eigendommen.
Audio |
|
| Audio detectie | Ja |
| Ondersteunde audioformaten | AAC-LC/ADPCM/G.711/G.726/LPCM/OPUS/PCM |
| Audiosysteem | 2-weg |
Batterij |
|
| Batterijtype | UN3091 - Lithium METAAL binnen apparatuur |
| Lithium Gewicht (g) | 0,04g |
Camera |
|
| Camera sluitertijd | 1/66500 - 2Seconde |
| Minimale verlichting | 0,07Lux |
Ontwerp |
|
| Vormfactor | Kogel |
| Behuizingsmateriaal | Aluminium/Polycarbonaat (PC) |
| IK-code | IK10 |
| Internationale Bescherming (IP) code | IP66, IP67 |
| Montage type | Plafond/wand |
| Productkleur | Wit |
Beeldsensor |
|
| Aantal sensoren | 1 |
| Optische sensor grootte | 1/1.2" |
| Progressieve scan | Ja |
| Sensortype | CMOS |
Lenssysteem |
|
| Brandpuntsafstand bereik | 6.2–12.9mm |
| Aantal lenzen | 1 |
| Optische zoom | 2,08x |
| Zoomcapaciteit | Ja |
Netwerk |
|
| Bluetooth | Nee |
| Ethernet LAN | Ja |
| Netwerkstandaarden | IEEE 802.1x/IEEE 802.3af/IEEE 802.3at |
| Quality of Service (QoS) ondersteuning | Ja |
| Wi-Fi | Nee |
Nachtzicht |
|
| Infrarood golflengte | 850nm |
| LED-type | IR |
| Nachtzicht | Ja |
| Nachtzicht afstand | 40m |
Operationele condities |
|
| Werking relatieve luchtvochtigheid (H-H) | 10 - 100procent |
| Werktemperatuur (T-T) | -40 - 60°C |
| Opslag relatieve luchtvochtigheid (H-H) | 5 - 95procent |
| Opslag temperatuur (T-T) | -40 - 65°C |
Overige kenmerken |
|
| Bevat geen | BFR/PVC |
Pakketafmetingen |
|
| Diepte (pakket, cm) | 14,5cm |
| Hoogte (pakket, cm) | 16cm |
| Breedte (pakket, cm) | 26cm |
Verpakkingsinhoud |
|
| Boorgids inbegrepen | Ja |
| Handleiding | Ja |
| Montagebeugels inbegrepen | Ja |
| Aantal camera's | 1 |
Prestatie |
|
| Certificering | EN 55032 Klasse A, EN 50121-4, IEC 62236-4, EN 55035,/EN 61000-3-3, EN 61000-6-1, EN 61000-6-2,/FCC Part 15 Subpart B Klasse A, ICES-3(A)/NMB-3(A),/VCCI Klasse A, RCM AS/NZS CISPR 32 Klasse A |
| Verbindingstechnologie | Bedraad |
| Dag/nacht modus | Ja |
| Infrarood (IR) afsnijdfilter | Ja |
| Taalondersteuning | Engels/Frans/Duits/Italiaans/Japans/ Koreaans/Portugees/Russisch/Vereenvoudigd Chinees/Spaans/Traditioneel Chinees |
| Aantal talen | 11 |
| Ondersteunde plaatsing | Binnen & buiten |
| PTZ-modi | Digitale PTZ |
| Type | IP beveiligingscamera |
| Wide Dynamic Range (WDR) | Ja |
Poorten & interfaces |
|
| Ethernet LAN (RJ-45) poorten | 1 |
| Klemmenblokpoort | Ja |
Voeding |
|
| Maximaal energieverbruik | 12,95Watt |
| Typisch energieverbruik | 7,7Watt |
| Energiebron type | PoE |
Productafmetingen |
|
| Nettogewicht (Product, kg) | 2kg |
| Productdiepte | 28cm |
| Productbreedte | 28cm |
Beveiliging |
|
| Actieve sabotagemelding | Ja |
| Meldings type | |
| Digest-authenticatie | Ja |
| HTTPS-encryptie | Ja |
| IP-adresfiltering | Ja |
| Wachtwoordbeveiliging | Ja |
| Pixelteller | Ja |
| Beveiligingsalgoritmen | 256-bit AES-XTS/EAP-TLS |
| Videobewegingsdetectie | Ja |
Opslag |
|
| Ingebouwde HDD | Nee |
| Kaartlezer geïntegreerd | Ja |
| Compatibele geheugenkaarten | MicroSD (TransFlash)/MicroSDHC/MicroSDXC |
| Flashgeheugen | 8192MB |
| Intern geheugen | 2048MB |
Technische details |
|
| Bevat geen | BFR/PVC |
| Geschikt voor gebruik buitenshuis | Ja |
Verkoperinformatie |
|
| Merknaam | Axis |
| Garantie | 5#ProductAttributes.Unit.Year# |
Video |
|
| Bit rate | Configureerbare bit rate |
| Bit rate controle | Variable Bit Rate (VBR) |
| Flip & spiegel | Ja |
| Frame rate | 60fps |
| Maximale resolutie | 3840 x 2160Pixels |
| Privacy masking | Ja |
| Ondersteunde grafische resoluties | 1280 x 720 (HD 720) |
| Tekstoverlay | Ja |
| Totaal aantal megapixels | 8MP |
| Videocompressieformaten | H.264/H.265/M-JPEG |
| Video-intelligentie-analyse | Ja |
| Videorecording | Ja |
| Videostreaming | Ja |
Gewicht & afmetingen |
|
| Diameter | 13,2cm |
Design
| Product colour |
White |
|---|---|
| Form factor |
Bullet |
| Housing material |
Aluminium/Polycarbonate (PC) |
| IK code |
IK10 |
| Mounting type |
Ceiling/wall |
Lens system
| Focal length range |
6.2–12.9mm |
|---|---|
| Number of lenses |
1 |
| Optical zoom |
2,08x |
| Zoom capability |
Yes |
Night vision
| Night vision distance |
40m |
|---|---|
| Infra-red wavelength |
850nm |
| LED type |
IR |
| Night vision |
Yes |
Logistics data
| Placement supported |
Indoor & outdoor |
|---|
Vendor information
| Brand Name |
Axis |
|---|---|
| Warranty |
5#ProductAttributes.Unit.Year# |
Video
| Total megapixels |
8MP |
|---|---|
| Bit rate |
Configurable bit rate |
| Bit rate control |
Variable Bit Rate (VBR) |
| Frame rate |
60fps |
| Maximum resolution |
3840 x 2160Pixels |
| Privacy masking |
Yes |
| Text caption overlay |
Yes |
| Video compression formats |
H.264/H.265/M-JPEG |
| Video recording |
Yes |
| Video streaming |
Yes |
Audio
| Audio detection |
Yes |
|---|---|
| Audio formats supported |
AAC-LC/ADPCM/G.711/G.726/LPCM/OPUS/PCM |
| Audio system |
2-way |
Battery
| Battery Type |
UN3091 – Lithium METAL inside equiment |
|---|---|
| Lithium Weight (g) |
0,04g |
Camera
| Camera shutter speed |
1/66500 – 2Second |
|---|---|
| Minimum illumination |
0,07Lux |
Image sensor
| Number of sensors |
1 |
|---|---|
| Optical sensor size |
1/1.2" |
| Progressive scan |
Yes |
| Sensor type |
CMOS |
Network
| Bluetooth |
No |
|---|---|
| Ethernet LAN |
Yes |
| Networking standards |
IEEE 802.1x/IEEE 802.3af/IEEE 802.3at |
| Wi-Fi |
No |
Operational conditions
| Operating temperature (T-T) |
-40 – 60°C |
|---|---|
| Storage temperature (T-T) |
-40 – 65°C |
Technical details
| Doesn't contain |
BFR/PVC |
|---|---|
| Suitable for outdoor use |
Yes |
Package dimensions
| Depth (package,cm) |
14,5cm |
|---|---|
| Gross Weight (Package, kg) |
2,2kg |
| Height (package,cm) |
16cm |
| Width (package,cm) |
26cm |
Packaging content
| Drilling template included |
Yes |
|---|---|
| Manual |
Yes |
| Mounting brackets included |
Yes |
| Number of cameras |
1 |
Performance
| Certification |
EN 55032 Class A, EN 50121-4, IEC 62236-4, EN 55035,/EN 61000-3-3, EN 61000-6-1, EN 61000-6-2,/FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A),/VCCI Class A, RCM AS/NZS CISPR 32 Class A |
|---|---|
| Connectivity technology |
Wired |
| Day/night mode |
Yes |
| Infrared (IR) cut-off filter |
Yes |
| Languages support |
English/French/German/Italian/Japanese/Korean/Portuguese/Russian/Simplified Chinese/Spanish/Traditional Chinese |
| Number of languages |
11 |
| PTZ modes |
Digital PTZ |
| Wide Dynamic Range (WDR) |
Yes |
Ports & interfaces
| Terminal block port |
Yes |
|---|
Power
| Power consumption (max) |
12,95Watt |
|---|---|
| Power consumption (typical) |
7,7Watt |
| Power source type |
PoE |
Product dimensions
| Net Weight (Product, kg) |
2kg |
|---|---|
| Product Depth |
28cm |
| Product Width |
28cm |
Security
| Active tampering alarm |
Yes |
|---|---|
| Alert notification type |
|
| Digest authentication |
Yes |
| HTTPS encryption |
Yes |
| IP address filtering |
Yes |
| Password protection |
Yes |
| Pixel counter |
Yes |
| Security algorithms |
256-bit AES-XTS/EAP-TLS |
| Video motion detection |
Yes |
Storage
| Built-in HDD |
No |
|---|---|
| Card reader integrated |
Yes |
| Compatible memory cards |
MicroSD (TransFlash)/MicroSDHC/MicroSDXC |
Indoor unit
| Flash memory |
8192MB |
|---|---|
| Internal memory |
2048MB |
Weight & dimensions
| Diameter |
13,2cm |
|---|
