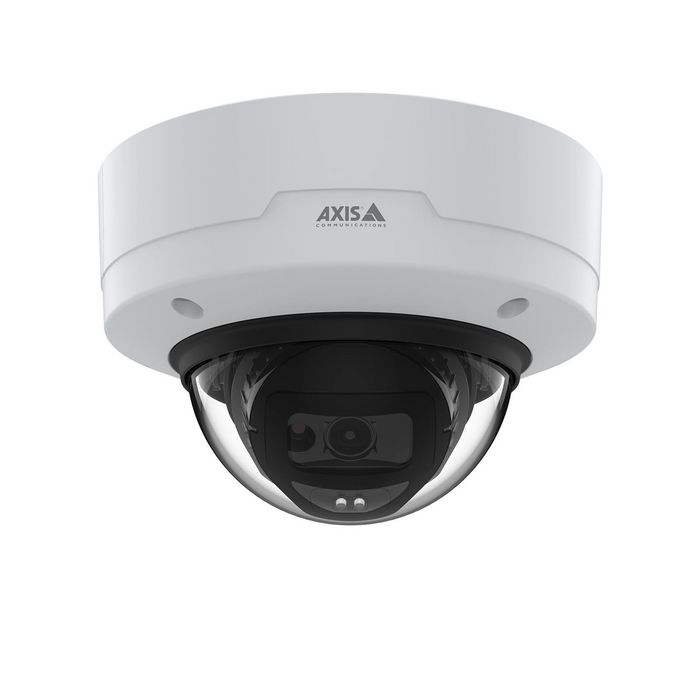

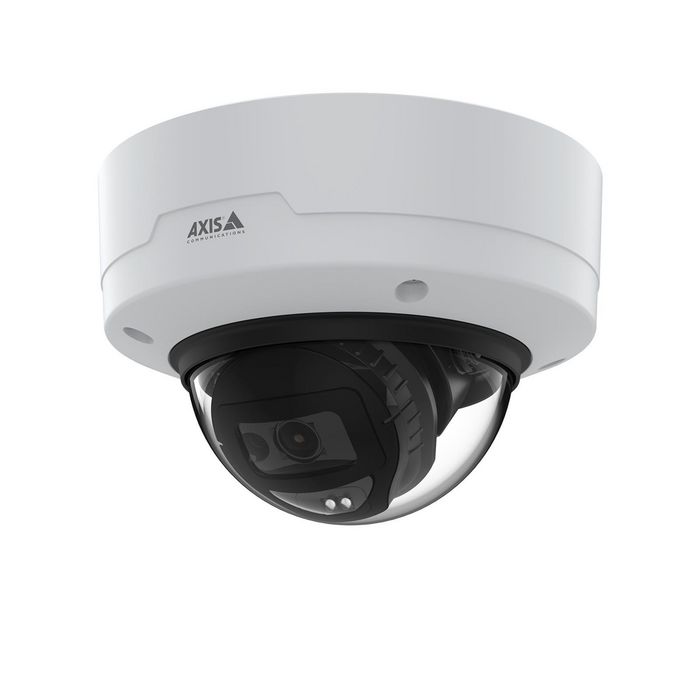

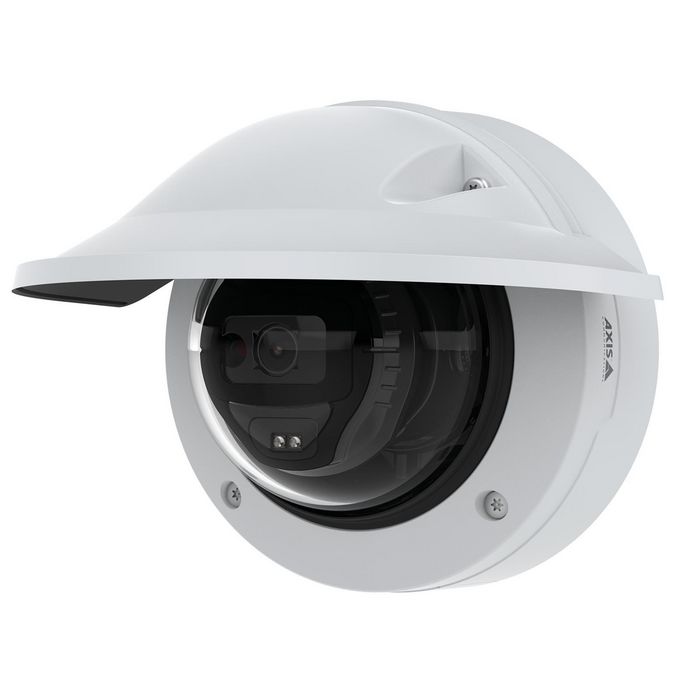

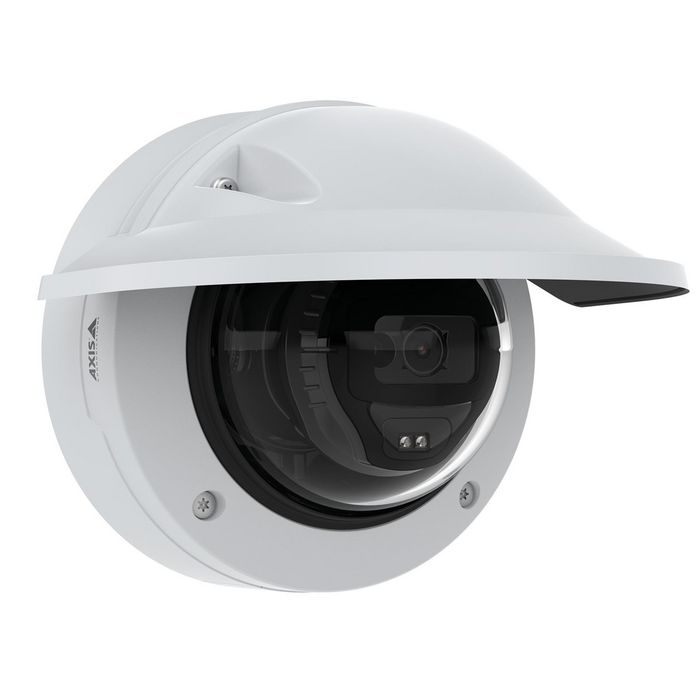

Axis M3216-LVE
€988,16
Model: 02372-001
- M3216-LVE
De Axis M3216-LVE is een geavanceerde netwerkcamera die naadloze beveiliging biedt voor zowel binnen- als buitentoepassingen. Met zijn robuuste ontwerp en weerbestendige behuizing is deze camera perfect voor veeleisende omgevingen. De M3216-LVE is uitgerust met hoogwaardige 4MP-resolutie en geïntegreerde IR-verlichting, wat zorgt voor scherpe beelden, zelfs in volledige duisternis. Deze slimme camera ondersteunt geavanceerde functies zoals bewegingsdetectie en remote toegang via mobiele apparaten, waardoor uw beveiligingssysteem altijd efficiënt en up-to-date is. Kies voor de Axis M3216-LVE voor betrouwbare videobewaking die aan al uw behoeften voldoet.
Batterij |
|
| Batterijtype | UN3091 - Lithium METAL binnen apparatuur |
| Lithium gewicht (g) | 0,064g |
Camera |
|
| Draaihoek | 190° |
| Camera sluitertijd | 1/50000 - 1/5 secondeSeconde |
| Lens kijkhoek, horizontaal | 102° |
| Lens kijkhoek, verticaal | 73° |
| Minimale verlichting | 0,16Lux |
| Pan bereik | 0 - 190° |
| Kantelhoek bereik | -10 - 80° |
Ontwerp |
|
| Mistproof | Ja |
| Vormfactor | Dome |
| Behuizingsmateriaal | Plastic/Polycarbonaat (PC) |
| IK-code | IK10 |
| Internationale bescherming (IP) code | IP66 |
| Montage soort | Plafond/wand |
| Productkleur | Wit |
Beeldsensor |
|
| Optische sensorgrootte | 1/2.7" |
| Progressieve scan | Ja |
| Sensortype | CMOS |
Lenssysteem |
|
| Dichtste scherpstelafstand | 1m |
| Brandpuntsafstand bereik | 2.7-13.5mm |
| Minimale diafragmawaarde | 2 |
| Zoomcapaciteit | Ja |
Netwerk |
|
| Ethernet-interface type | Fast Ethernet |
| Ethernet LAN | Ja |
| Netwerkstandaarden | IEEE 802.1x |
Nachtzicht |
|
| LED-type | IR |
| Nachtzicht | Ja |
| Nachtzicht afstand | 30m |
Operationele omstandigheden |
|
| Operationele relatieve luchtvochtigheid (H-H) | 10 - 100procent |
| Operationele temperatuur (T-T) | -40 - 50°C |
| Opslag relatieve luchtvochtigheid (H-H) | 5 - 95procent |
| Opslag temperatuur (T-T) | -40 - 65°C |
Verpakkingsafmetingen |
|
| Diepte (verpakking, cm) | 20cm |
| Bruto gewicht (verpakking, kg) | 1,07kg |
| Hoogte (verpakking, cm) | 14,5cm |
| Breedte (verpakking, cm) | 21cm |
Inhoud verpakking |
|
| Aantal camera's | 1 |
Prestaties |
|
| Connectiviteitstechnologie | Bedraad |
| Dag/nachtmodus | Ja |
| Plaatsing ondersteund | Binnen en buiten |
| PTZ-besturing | Ja |
| Type | IP beveiligingscamera |
| Wide Dynamic Range (WDR) | Ja |
Poorten & interfaces |
|
| Ethernet LAN (RJ-45) poorten | 1 |
| Microfoon in | Ja |
Voeding |
|
| Energieverbruik (Power over Ethernet (PoE)) | 4,8Watt |
| Voedingsbron type | PoE |
Productafmetingen |
|
| Nettogewicht (product, kg) | 1kg |
| Productdiepte | 20cm |
| Producthoogte | 14,5cm |
| Productbreedte | 21cm |
Beveiliging |
|
| HTTPS-encryptie | Ja |
| Beveiligingsalgoritmes | EAP-TLS/HTTPS |
Opslag |
|
| Ingebouwde HDD | Nee |
| Kaartlezer geïntegreerd | Ja |
| Compatibele geheugenkaarten | MicroSD (TransFlash)/MicroSDHC/MicroSDXC |
| Flashgeheugen | 8192MB |
| Intern geheugen | 1024MB |
Technische details |
|
| Geschikt voor buitenshuis gebruik | Ja |
Leveranciersinformatie |
|
| Merknaam | Axis |
| Garantie | 5#ProductAttributes.Unit.Year# |
Video |
|
| Frame rate | 30fps |
| Maximale resolutie | 2688 x 1512Pixels |
| Privacy masking | Ja |
| Totaal aantal megapixels | 8MP |
| Videocompressieformaten | H.264/H.265 |
| Videostreaming | Ja |
Gewicht & afmetingen |
|
| Diameter | 14,9cm |
Design
| Product colour |
White |
|---|---|
| Fog proof |
Yes |
| Form factor |
Dome |
| Housing material |
Plastic/Polycarbonate (PC) |
| IK code |
IK10 |
| Mounting type |
Ceiling/wall |
Lens system
| Focal length range |
2.7-13.5mm |
|---|---|
| Closest focusing distance |
1m |
| Minimum aperture number |
2 |
| Zoom capability |
Yes |
Night vision
| Night vision distance |
30m |
|---|---|
| LED type |
IR |
| Night vision |
Yes |
Logistics data
| Placement supported |
Indoor & outdoor |
|---|
Vendor information
| Brand Name |
Axis |
|---|---|
| Warranty |
5#ProductAttributes.Unit.Year# |
Video
| Total megapixels |
8MP |
|---|---|
| Frame rate |
30fps |
| Maximum resolution |
2688 x 1512Pixels |
| Privacy masking |
Yes |
| Video compression formats |
H.264/H.265 |
| Video streaming |
Yes |
Battery
| Battery Type |
UN3091 – Lithium METAL inside equiment |
|---|---|
| Lithium Weight (g) |
0,064g |
Camera
| Angle of rotation |
190° |
|---|---|
| Camera shutter speed |
1/50000 – 1/5 SecondSecond |
| Lens viewing angle, vertical |
73° |
| Minimum illumination |
0,16Lux |
| Pan range |
0 – 190° |
| Tilt angle range |
-10 – 80° |
Image sensor
| Optical sensor size |
1/2.7" |
|---|---|
| Progressive scan |
Yes |
| Sensor type |
CMOS |
Network
| Ethernet interface type |
Fast Ethernet |
|---|---|
| Ethernet LAN |
Yes |
| Networking standards |
IEEE 802.1x |
Operational conditions
| Operating temperature (T-T) |
-40 – 50°C |
|---|---|
| Storage temperature (T-T) |
-40 – 65°C |
Package dimensions
| Depth (package,cm) |
20cm |
|---|---|
| Gross Weight (Package, kg) |
1,07kg |
| Height (package,cm) |
14,5cm |
| Width (package,cm) |
21cm |
Packaging content
| Number of cameras |
1 |
|---|
Performance
| Connectivity technology |
Wired |
|---|---|
| Day/night mode |
Yes |
| PTZ control |
Yes |
| Wide Dynamic Range (WDR) |
Yes |
Ports & interfaces
| Microphone in |
Yes |
|---|
Power
| Power source type |
PoE |
|---|
Product dimensions
| Net Weight (Product, kg) |
1kg |
|---|---|
| Product Depth |
20cm |
| Product Height |
14,5cm |
| Product Width |
21cm |
Security
| HTTPS encryption |
Yes |
|---|---|
| Security algorithms |
EAP-TLS/HTTPS |
Storage
| Built-in HDD |
No |
|---|---|
| Card reader integrated |
Yes |
| Compatible memory cards |
MicroSD (TransFlash)/MicroSDHC/MicroSDXC |
Indoor unit
| Flash memory |
8192MB |
|---|---|
| Internal memory |
1024MB |
Technical details
| Suitable for outdoor use |
Yes |
|---|
Weight & dimensions
| Diameter |
14,9cm |
|---|
