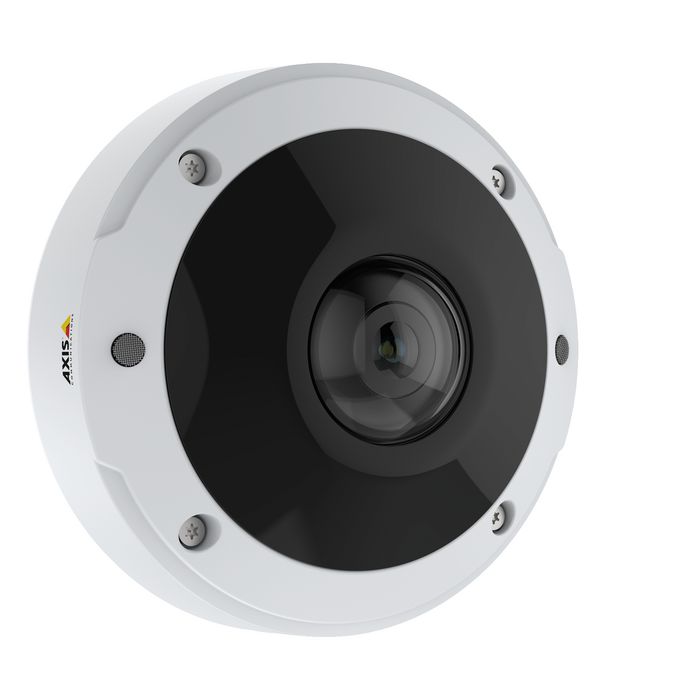

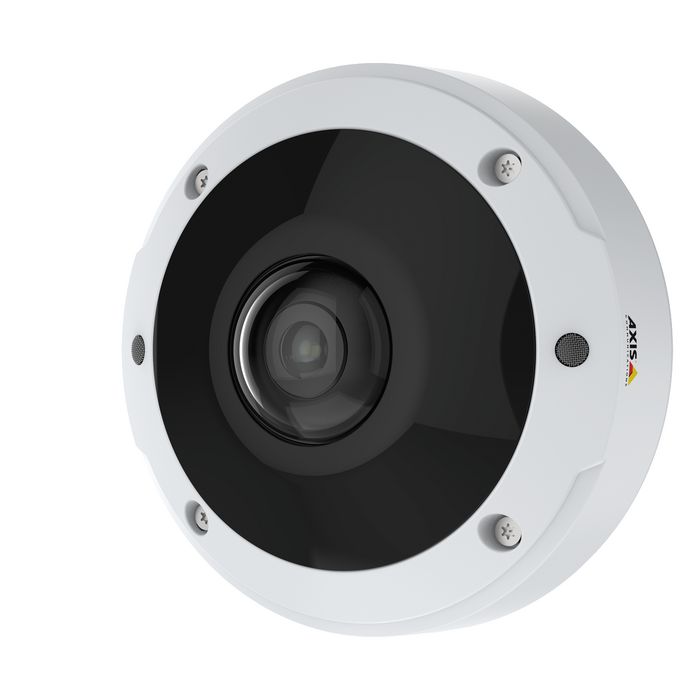

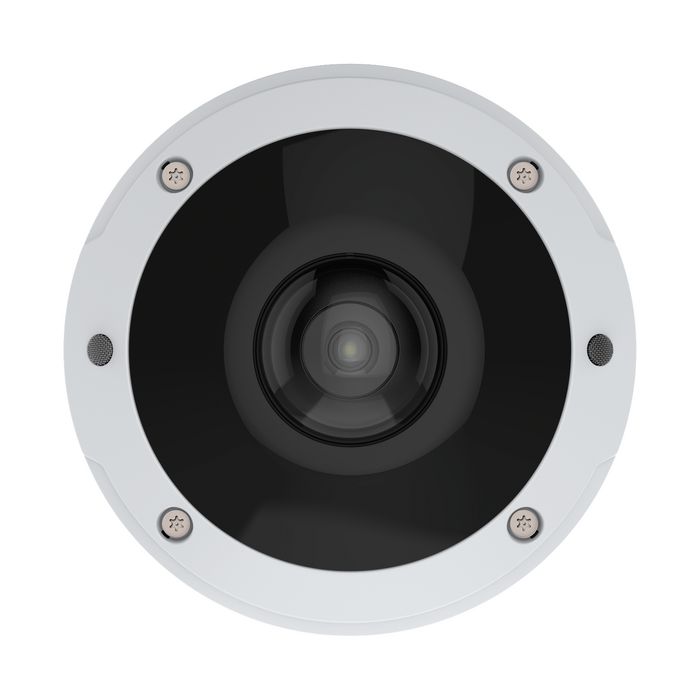

Axis M3077-PLVE
€1,014,16
Model: 02018-001
- Ingebouwde microfoons; Volledige 180° en 360° overzicht; Digitale PTZ en gedeformeerde weergaven; Verbeterde beveiligingsfuncties; Lightfinder, Forensische WDR en Geoptimaliseerde IR
De Axis M3077-PLVE is een geavanceerde beveiligingscamera die naadloos in elke omgeving past. Deze compacte domecamera levert uitzonderlijke videokwaliteit met een resolutie van 6 MP, ideaal voor zowel dag- als nachttoezicht. Met ingebouwde infraroodverlichting en geoptimaliseerde beelden bij weinig licht, zorgt de M3077-PLVE voor heldere en scherpe beelden, ongeacht de omstandigheden. Deze robuuste camera is eenvoudig te installeren en te integreren met bestaande beveiligingssystemen. Perfect voor zowel binnen- als buitengebruik. Kies voor de Axis M3077-PLVE en verhoog de veiligheid en bewaking van jouw eigendom aanzienlijk.
Audio |
|
| Audioformaten ondersteund | G.711/G.726/LC-AAC/LPCM/OPUS |
| Audio-ingangskanalen | 2kanalen |
| Audiosysteem | 1-weg |
| Ingebouwde microfoon | Ja |
| Samplefrequentie | 48kHz |
Batterij |
|
| Batterijtype | UN3091 - Lithium METAL binnen apparatuur |
| Lithiumgewicht (g) | 0,04g |
Camera |
|
| Rotatiehoek | 180° |
| Sluitertijd camera | 1/16000 - 1Seconde |
| Lens kijkhoek, horizontaal | 183° |
| Lens kijkhoek, verticaal | 183° |
| Kijkhoek, horizontaal | 183° |
| Kijkhoek, verticaal | 183° |
Ontwerp |
|
| Vormfactor | Koepel |
| Behuismateriaal | Aluminium/Polycarbonaat (PC) |
| IK-code | IK10 |
| Internationale Bescherming (IP) code | IP66 |
| Montage type | Plafond/wand |
| Productkleur | Wit |
Beeldsensor |
|
| Optische sensorsgrootte | 1/1.8" |
| Sensortype | CMOS |
Lenssysteem |
|
| Vaste focus | Ja |
| Brandpuntsafstand bereik | 15,6cm |
| Focusaanpassing | 2.0 |
| Aantal lenzen | 1 |
| Zoomcapaciteit | Ja |
Logistieke gegevens |
|
| Harmonized System (HS) code | 85258900 |
Netwerk |
|
| Ethernet LAN | Ja |
| Netwerkstandaarden | IEEE 802.3af/IEEE 802.3at |
Nachtzicht |
|
| LED-type | IR |
| Nachtzicht | Ja |
Operationele omstandigheden |
|
| Operationele relatieve luchtvochtigheid (H-H) | 10 - 100procent |
| Operationele temperatuur (T-T) | -40 - 50°C |
| Opslag relatieve luchtvochtigheid (H-H) | 5 - 95procent |
| Opslagtemperatuur (T-T) | -40 - 65°C |
Pakketdimensies |
|
| Diepte (pakket,cm) | 16cm |
| Bruto gewicht (pakket, kg) | 1,1kg |
| Hoogte (pakket,cm) | 9cm |
| Breedte (pakket,cm) | 16cm |
Verpakkingsinhoud |
|
| Montagebeugels inbegrepen | Ja |
| Aantal camera's | 1 |
Prestaties |
|
| Alarm in-/uitgang | Ja |
| Connectiviteitstechnologie | Bedraad |
| Dag/nachtmodus | Ja |
| Dynamisch bereik | 120dB |
| Taalondersteuning | Engels/Frans/Duits/Italiaans/Arabisch/Koreaans/Pols/Portugees/Russisch/Simplified Chinese/Spaans/Traditioneel Chinees |
| Aantal talen | 12 |
| Ondersteunde plaatsing | Binnen |
| PTZ-modi | Digitale PTZ |
| Type | IP-beveiligingscamera |
| Wide Dynamic Range (WDR) | Ja |
Poorten & interfaces |
|
| Ethernet LAN (RJ-45) poorten | 1 |
Stroom |
|
| Maximaal stroomverbruik | 11,9Watt |
| Stroomverbruik (Power over Ethernet (PoE)) | 8Watt |
| Typisch stroomverbruik | 8Watt |
| Type stroombron | PoE |
Productdimensies |
|
| Netto gewicht (product, kg) | 1kg |
| Productdiepte | 14,9cm |
| Producthoogte | 6,6cm |
| Productbreedte | 14,9cm |
Beveiliging |
|
| Type meldingswaarschuwing | E-mail/Text waarschuwing bericht |
| HTTPS encryptie | Ja |
| Pixel teller | Ja |
| Beveiligingsalgoritmen | EAP-TLS/HTTPS |
Opslag |
|
| Ingebouwde HDD | Ja |
| Ingebouwde SSD | Ja |
| Geheugenkaartsleuf geïntegreerd | Ja |
| Compatibele geheugenkaarten | MicroSD (TransFlash)/MicroSDHC/MicroSDXC |
| Flashgeheugen | 512MB |
| HDD-capaciteit | 1GB |
| Intern geheugen | 1024MB |
| SSD-capaciteit | 0,5GB |
Leverancier informatie |
|
| Merknaam | Axis |
| Garantie | 5#ProductAttributes.Unit.Year# |
Video |
|
| Framefrequentie | 60fps |
| Maximale resolutie | 2560 x 1920Pixels |
| Ruisonderdrukking | Ja |
| Ondersteunde grafische resoluties | 1920 x 1440/256 x 144/2560 x 1440/2560 x 1920/384 x 288 |
| Tekstoverlay | Ja |
| Thermische framefrequentie (NTSC) | 50 - 60Hz |
| Videocompressieformaten | H.264/H.265/M-JPEG/MPEG4 |
| Videointelligentie-analyse | Ja |
| Video-opname | Ja |
| Videostreaming | Ja |
Gewicht & dimensies |
|
| Diameter | 14,9cm |
Design
| Product colour |
White |
|---|---|
| Form factor |
Dome |
| Housing material |
Aluminium/Polycarbonate (PC) |
| IK code |
IK10 |
| Mounting type |
Ceiling/wall |
Lens system
| Focal length range |
15,6cm |
|---|---|
| Fixed focus |
Yes |
| Focus adjustment |
2.0 |
| Number of lenses |
1 |
| Zoom capability |
Yes |
Logistics data
| Placement supported |
Indoor |
|---|---|
| Harmonized System (HS) code |
85258900 |
Vendor information
| Brand Name |
Axis |
|---|---|
| Warranty |
5#ProductAttributes.Unit.Year# |
Audio
| Audio formats supported |
G.711/G.726/LC-AAC/LPCM/OPUS |
|---|---|
| Audio input channels |
2kanalen |
| Audio system |
1-way |
| Sample rate |
48kHz |
Features
| Built-in microphone |
Yes |
|---|
Battery
| Battery Type |
UN3091 – Lithium METAL inside equiment |
|---|---|
| Lithium Weight (g) |
0,04g |
Camera
| Angle of rotation |
180° |
|---|---|
| Camera shutter speed |
1/16000 – 1Second |
| Lens viewing angle, vertical |
183° |
| Viewing angle, horizontal |
183° |
| Viewing angle, vertical |
183° |
Image sensor
| Optical sensor size |
1/1.8" |
|---|---|
| Sensor type |
CMOS |
Network
| Ethernet LAN |
Yes |
|---|---|
| Networking standards |
IEEE 802.3af/IEEE 802.3at |
Night vision
| LED type |
IR |
|---|---|
| Night vision |
Yes |
Operational conditions
| Operating temperature (T-T) |
-40 – 50°C |
|---|---|
| Storage temperature (T-T) |
-40 – 65°C |
Package dimensions
| Depth (package,cm) |
16cm |
|---|---|
| Gross Weight (Package, kg) |
1,1kg |
| Height (package,cm) |
9cm |
| Width (package,cm) |
16cm |
Packaging content
| Mounting brackets included |
Yes |
|---|---|
| Number of cameras |
1 |
Performance
| Alarm input/output |
Yes |
|---|---|
| Connectivity technology |
Wired |
| Day/night mode |
Yes |
| Dynamic range |
120dB |
| Languages support |
English/French/German/Italian/Japanese/Korean/Polish/Portuguese/Russian/Simplified Chinese/Spanish/Traditional Chinese |
| Number of languages |
12 |
| PTZ modes |
Digital PTZ |
| Wide Dynamic Range (WDR) |
Yes |
Power
| Power consumption (max) |
11,9Watt |
|---|---|
| Power consumption (typical) |
8Watt |
| Power source type |
PoE |
Product dimensions
| Net Weight (Product, kg) |
1kg |
|---|---|
| Product Depth |
14,9cm |
| Product Height |
6,6cm |
| Product Width |
14,9cm |
Security
| Alert notification type |
E-mail/Text alert message |
|---|---|
| HTTPS encryption |
Yes |
| Pixel counter |
Yes |
| Security algorithms |
EAP-TLS/HTTPS |
Storage
| Built-in HDD |
Yes |
|---|---|
| Built-in SSD |
Yes |
| Card reader integrated |
Yes |
| Compatible memory cards |
MicroSD (TransFlash)/MicroSDHC/MicroSDXC |
| SSD capacity |
0,5GB |
Indoor unit
| Flash memory |
512MB |
|---|---|
| Internal memory |
1024MB |
Video
| Frame rate |
60fps |
|---|---|
| Maximum resolution |
2560 x 1920Pixels |
| Noise reduction |
Yes |
| Text caption overlay |
Yes |
| Thermal frame rate (NTSC) |
50 – 60Hz |
| Video compression formats |
H.264/H.265/M-JPEG/MPEG4 |
| Video recording |
Yes |
| Video streaming |
Yes |
Weight & dimensions
| Diameter |
14,9cm |
|---|
