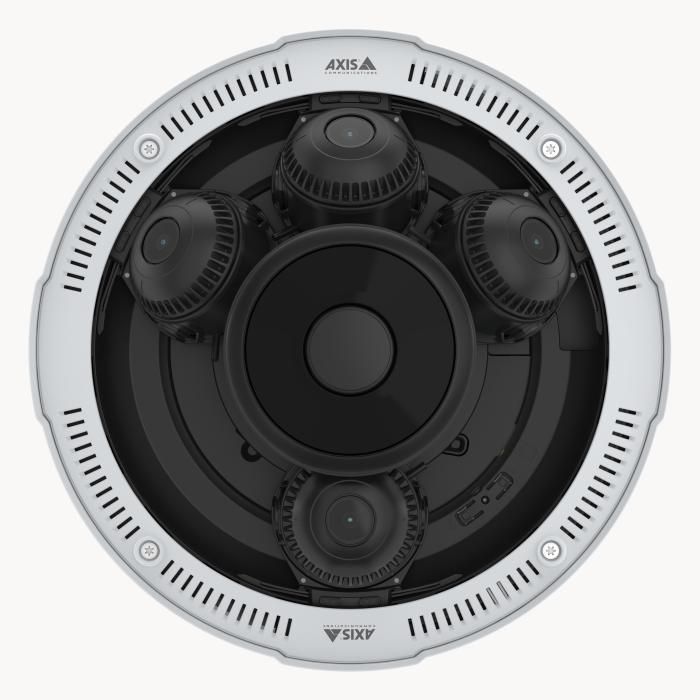

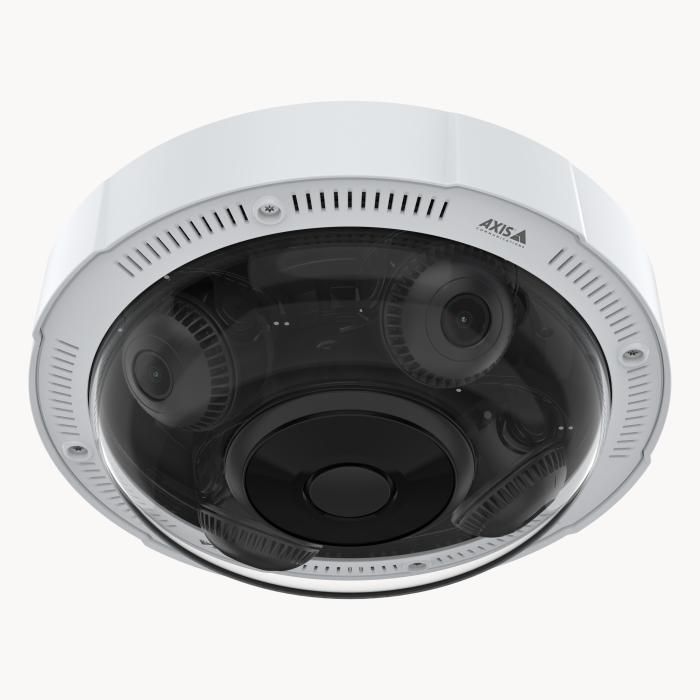

Axis 4x 2MP, 1920x1080, 30 fps, 1/2.8, 0-0.14lux, 360° IR illumination, 360° Horizontal FOV, 55.3 - 21.8 ° Vertical FOV, IP66, IP67, 2kg
€2,388,19
Model: 02633-001
Ontdek de kracht van de Axis 4x 2MP beveiligingscamera, ontworpen voor de ultieme bescherming van uw eigendom. Met een verbluffende resolutie van 1920x1080 en een vloeiende beeldsnelheid van 30 fps, levert deze camera haarscherpe beelden. De 1/2.8 sensor presteert uitstekend bij weinig licht, met een lux-bereik van 0-0.14, voor ononderbroken bewaking, dag en nacht. Ervaar totale dekking met 360° IR-belichting en een horizontaal gezichtsveld van 360°, terwijl het verticale gezichtsveld zich tussen 55.3° en 21.8° bevindt, wat gedetailleerde zichtlijnen garandeert.
Dankzij de robuuste IP66 en IP67 classificaties is deze camera bestand tegen alle weersomstandigheden, waardoor het een betrouwbare keuze is voor buitentoepassingen. Met een gewicht van slechts 2 kg is installatie eenvoudig en efficiënt. Kies voor ongeëvenaarde veiligheid en bewaking met de Axis 4x 2MP camera - uw betrouwbare partner in beveiligingstechnologie.
Audio |
|
| Audio detectie | Ja |
Batterij |
|
| Batterijtype | UN3091 - Lithium METAL binnen apparatuur |
| Lithium gewicht (g) | 0,064g |
Camera |
|
| Rotatiehoek | 190° |
| Camera pan controle | Ja |
| Camera pixelgrootte | 2,9µm |
| Camera sluitertijd | 1/28000 - 5Seconde |
| Horizontaal gezichtsveld (thermisch module) | 360 |
| Lens kijkhoek, diagonaal | 131 -46° |
| Lens kijkhoek, horizontaal | 108 -40° |
| Lens kijkhoek, verticaal | 55 -23° |
| Pan bereik | -90 - 90° |
| Kantelhoek bereik | 25 - 95° |
| Verticaal gezichtsveld (thermisch module) | 55,3° |
Ontwerp |
|
| Vormfactor | Dome |
| IK-code | IK09 |
| Internationale bescherming (IP) code | IP66, IP67 |
| Montage type | Plafond |
| Productkleur | Wit |
Beeldsensor |
|
| Aantal sensoren | 4 |
| Optische sensor grootte | 1/2.8" |
| Progressieve scan | Ja |
| Sensortype | CMOS |
Lenssysteem |
|
| Focus | Gemonteerd/Handmatig |
| Aantal lenzen | 4 |
| Zoomcapaciteit | Ja |
Netwerk |
|
| Ethernet LAN | Ja |
Nachtzicht |
|
| LED-type | IR |
| Nachtzicht | Ja |
Operationele voorwaarden |
|
| Bedrijfstemperatuur (T-T) | -30 - 50°C |
| Opslagtemperatuur (T-T) | -40 - 65°C |
Pakket afmetingen |
|
| Diepte (pakket, cm) | 34,5cm |
| Hoogte (pakket, cm) | 12cm |
| Breedte (pakket, cm) | 32cm |
Panoramische camera |
|
| Camera sluitertijd (panoramische camera) | 1/31500Seconde |
| Brandpuntsafstand bereik (panoramische camera) | 3.18 - 8.12mm |
| Maximale resolutie (panoramische camera) | 1920 x 1080Pixels |
| Aantal sensoren (panoramische camera) | 4 |
| Optische sensor grootte (panoramische camera) | 1/2.8" |
| Sensortype (panoramische camera) | CMOS |
| Signaal-ruisverhouding (SNR) (panoramische camera) | 55dB |
| Kijkhoek, horizontaal (panoramische camera) | 360° |
| Kijkhoek, verticaal (panoramische camera) | 55,3° |
Prestaties |
|
| Connectiviteitstechnologie | Bedraad |
| Dag/nachtmodus | Ja |
| Infrarood (IR) afsluitfilter | Ja |
| Afbeelding overlay | 1920 x 1080Pixels |
| Plaatsing ondersteund | Binnen & buiten |
| Afstandsbediening | Ja |
| Type | IP beveiligingscamera |
| Wijd Dynamisch Bereik (WDR) | Ja |
Poorten & interfaces |
|
| Ethernet LAN (RJ-45) poorten | 1 |
Voeding |
|
| Type stroombron | PoE |
Productafmetingen |
|
| Netto gewicht (Product, kg) | 3kg |
Opslag |
|
| Compatibele geheugenkaarten | MicroSD (TransFlash)/MicroSDHC/MicroSDXC |
| Flashgeheugen | 8192MB |
| Intern geheugen | 2048MB |
Duurzaamheid |
|
| Naleving certificaten | CE/cUL/EAC/KC/UKCA/VCCI |
| Duurzaamheidscertificaten | UL ECOLOGO |
| Duurzaamheidsnaleving | Ja |
Technische details |
|
| Duurzaamheidscertificaten | CE/cUL/EAC/KC/UKCA/UL ECOLOGO/VCCI |
| Duurzaamheidsnaleving | Ja |
Leverancier informatie |
|
| Merknaam | Axis |
| Garantie | 5#ProductAttributes.Unit.Year# |
Video |
|
| Frame rate | 30fps |
| Maximale resolutie | 1920 x 1080Pixels |
| Totaal aantal megapixels | 2MP |
| Video compressieformaten | H.264/H.265/M-JPEG |
| Videoformaten ondersteund | H.264/H.265/M-JPEG |
| Video streaming | Ja |
Audio
| Audio detection |
Yes |
|---|
Battery
| Battery Type |
UN3091 – Lithium METAL inside equiment |
|---|---|
| Lithium Weight (g) |
0,064g |
Camera
| Angle of rotation |
190° |
|---|---|
| Camera pan control |
Yes |
| Camera pixel size |
2,9µm |
| Camera shutter speed |
1/28000 – 5Second |
| Lens viewing angle, diagonal |
131 -46° |
| Lens viewing angle, vertical |
55 -23° |
| Pan range |
-90 – 90° |
| Tilt angle range |
25 – 95° |
Design
| Form factor |
Dome |
|---|---|
| IK code |
IK09 |
| Mounting type |
Ceiling |
| Product colour |
White |
Image sensor
| Number of sensors |
4 |
|---|---|
| Optical sensor size |
1/2.8" |
| Progressive scan |
Yes |
| Sensor type |
CMOS |
Lens system
| Focus |
Motorized/Manual |
|---|---|
| Number of lenses |
4 |
| Zoom capability |
Yes |
Network
| Ethernet LAN |
Yes |
|---|
Night vision
| LED type |
IR |
|---|---|
| Night vision |
Yes |
Operational conditions
| Operating temperature (T-T) |
-30 – 50°C |
|---|---|
| Storage temperature (T-T) |
-40 – 65°C |
Package dimensions
| Depth (package,cm) |
34,5cm |
|---|---|
| Gross Weight (Package, kg) |
3,3kg |
| Height (package,cm) |
12cm |
| Width (package,cm) |
32cm |
Panoramic camera
| Sensor type (panoramic camera) |
CMOS |
|---|
Performance
| Connectivity technology |
Wired |
|---|---|
| Day/night mode |
Yes |
| Infrared (IR) cut-off filter |
Yes |
| Picture overlay |
1920 x 1080Pixels |
| Remote viewing |
Yes |
| Wide Dynamic Range (WDR) |
Yes |
Logistics data
| Placement supported |
Indoor & outdoor |
|---|
Power
| Power source type |
PoE |
|---|
Product dimensions
| Net Weight (Product, kg) |
3kg |
|---|
Storage
| Compatible memory cards |
MicroSD (TransFlash)/MicroSDHC/MicroSDXC |
|---|
Indoor unit
| Flash memory |
8192MB |
|---|---|
| Internal memory |
2048MB |
Sustainability
| Compliance certificates |
CE/cUL/EAC/KC/UKCA/VCCI |
|---|
Technical details
| Sustainability certificates |
CE/cUL/EAC/KC/UKCA/UL ECOLOGO/VCCI |
|---|---|
| Sustainability compliance |
Yes |
Vendor information
| Brand Name |
Axis |
|---|---|
| Warranty |
5#ProductAttributes.Unit.Year# |
Video
| Frame rate |
30fps |
|---|---|
| Maximum resolution |
1920 x 1080Pixels |
| Total megapixels |
2MP |
| Video compression formats |
H.264/H.265/M-JPEG |
| Video formats supported |
H.264/H.265/M-JPEG |
| Video streaming |
Yes |
